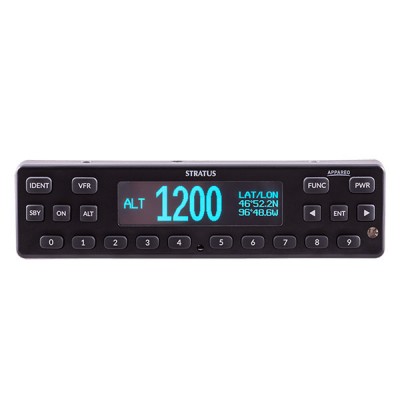

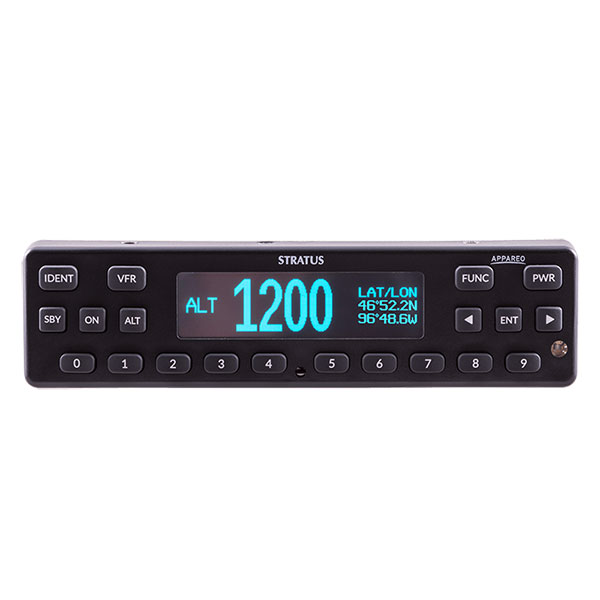

Appareo A&P Bundle - With Stratus ESG

$4294.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-17601

Overview

Note: The Stratus A&P bundle includes a wiring harness and can be purchased over the counter for installation by an A&P.

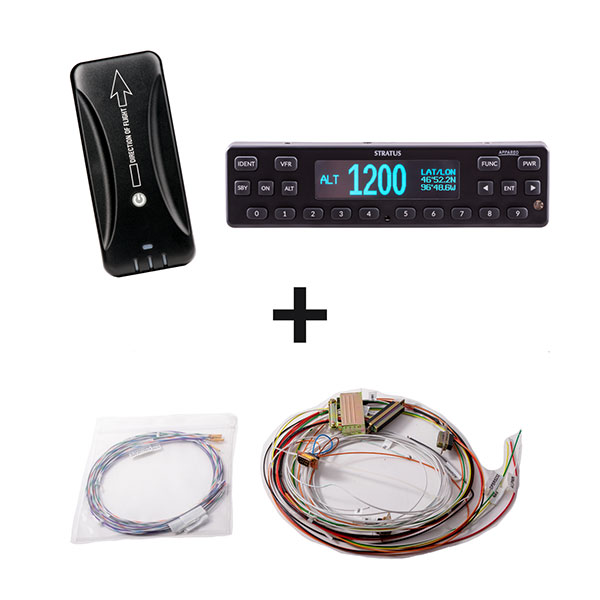

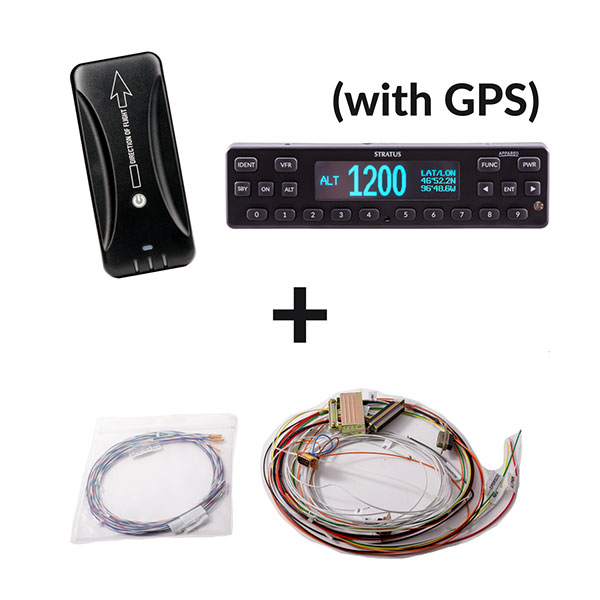

The Stratus A&P bundle includes: Stratus ESG Kit, Stratus 3i Kit, and Wiring Harness.

Features

  • 1090ES (Mode S extended squitter)
  • Built-in WAAS GPS
  • Meets global mandates for ADS-B Out
  • Push-button operation
  • Easy-to-use interface
  • Pressure altitude monitor

Specifications

  • Bezel Height: 1.69 in. (43 mm)
  • Bezel Width: 6.38 in. (162 mm)
  • Depth: 10.75 in. (273 mm) front of panel to connector backshell
  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors
  • Operating Temperature: -20C to 55C
  • Storage Temperature: -55C to 85C
  • Power Input: 9.0 to 36.0 VDC, 15 W typical
  • Cooling Input: No fan required
  • Environmental Compliance: DO-160G
  • Software Compliance: DO-178B Level C
  • Hardware Compliance: DO-254 Level C
  • Display: OLED
  • Transmitter Power: 310 W

In The Box

Parts Included with Transponder

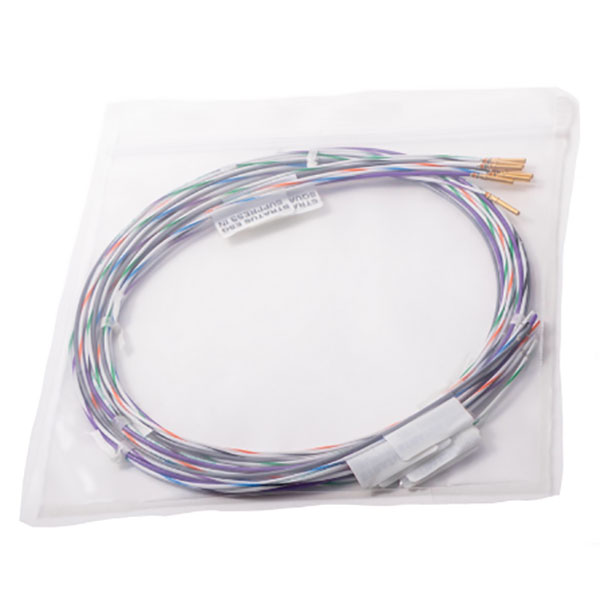

  • 1 - Installation Kit, Stratus ESG
  • 1 - Assembly, Backplate, Stratus ESG
  • 1 - Installation Rack, Stratus ESG
  • 1 - RAMI AV-801 WAAS GPS Antenna
Parts List for Stratus 3i Kit

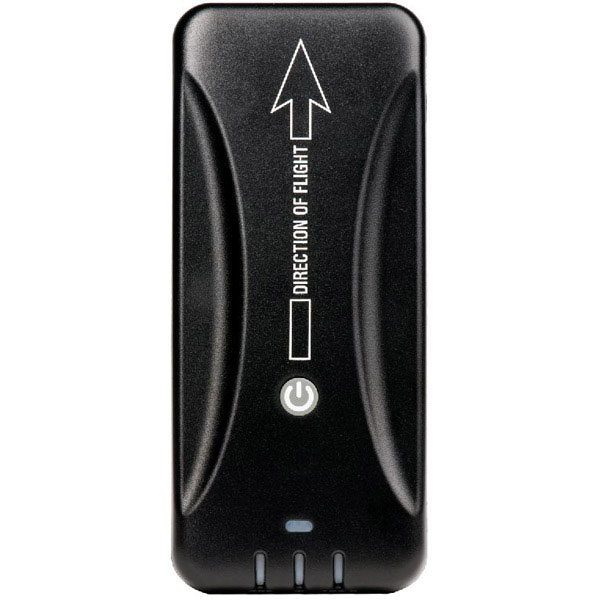

  • 1 - Stratus 3i Final Assembly
  • 1 - CON PM BNC Jack to Blind Mate Adapter
  • 1 - CON 9 Pin DSUB with Mounting Hardware
  • 1 - MS-151 to BNC Cable 5 ft
  • 1 - ESG, Right Angle USB Type C to 9 Pin D-Sub, 5 ft
  • 1 - Stratus Window Mount Clip
Parts List for Wiring Harness

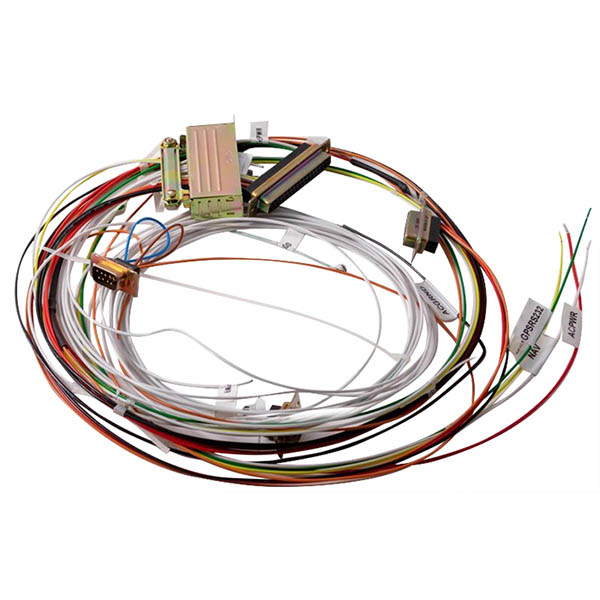

  • 1 - Universal Stratus XPDR Wiring Harness
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Neatly packaged and included everything needed for install except coax and associated terminations for transponder and GPS antenna. From an A&P perspective it was nice to have all the pins terminated and installed in connectors, although the dsub back shells were loose and could have been tightened by the tech assembling the harness. If I had to do it again I would order the cheaper kit and terminate all the pins myself so I could adjust the wire length for the cleanest install. It was more trouble figuring what to do with all the extra wiring, especially for the 3i and RS232 cables.

Scaled C Verified Purchase

APPAREO A&P BUNDLE WITH STRATUS ESG

May 31, 2022

I have now installed this package in two Mudry CAP10B aircraft, one to replace an aging KT76A and the other to replace a Garmin GTX327. In each case the installation was about 6 hours total. The transponder tray is a bolt-in replacement for the other trays making for almost no mechanical work. The provided wiring harness worked with both Ack and Trans Cal encoders, requiring only power wiring to the combination. In addition, since the Appareo transponder allows the ADS-B in device to share the transponders antenna, there is no need to install a separate antenna for a UAT, further simplifying installation. Overall, installation is a breeze. Right now it appears to me that this package is far and away the easiest and least-expensive way to retrofit ADS-B out and dual-band ADS-B in to an aircraft, especially if it has an older tube-type transponder that is going to need replacement anyway.

Lloyd A
December 30, 2020

Not a complete Bundle. May not find it to be a bargin. Did Basic install for Transponder/ADS-B Out compliance. No integration with other avionics. Supplied wiring harnesses not useful for basic install. No power cable for the GPS unit and more disappointingly no power out to the GPS from the head unit. Missing multiple connectors. No coax for the WAAS. Yes for $3k, I expect to hand it to my A&P with everything they need to do a basic install and not have to do part runs for $5 worth of parts.

David Z
March 14, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Appareo A&P bundle for certified aircraft?

Yes, this bundle can be installed in certified aircraft.

Q: Does the Appareo AP bundle come with a transponder antenna?

No, this bundle does not come with the transponder antenna.

Q: Does the Appareo A&P bundle require a particular transponder antenna, or will any type due?

The installation manual has specifications that the antenna has to meet. One that meets those specifications is the CI-105 p/n: 11-17965.

Q: Does this have the transponder antenna cable and the GPS antenna cable or will they need to be purchased?

No, this does not include the transponder antenna cable or the GPS antenna cable. Both need to be purchased separately.

Q: What is Appareos warranty on this product?

The ES/ ESG is 5 years or 2000 hour if installed and registered by an Appereo installer. 18 months from date of purchase otherwise. 2 year limited warranty on the stratus 3I.

Q: I see the Garmin has a GAE-12 encoder, I dont understand why with a GPS altitude, why you need old stile vacuum system altitude encoder. Or do you need the old altitude encoder? If I just by the Stratus EGS system with out the 3I in will I need the old vacuum encoder?

Yes, you still need the altitude encoder with this ESG.

Q: Is there an installation manual available for the Appareo A&P bundle?

We have added the Install Manual to this web page as a PDF. It is available for download.

Q: Does this Appareo A&P Bundle - With Stratus ESG come with the applicable STC documents required by the FAA?

We have added the STC document to this product page for your download and review.
