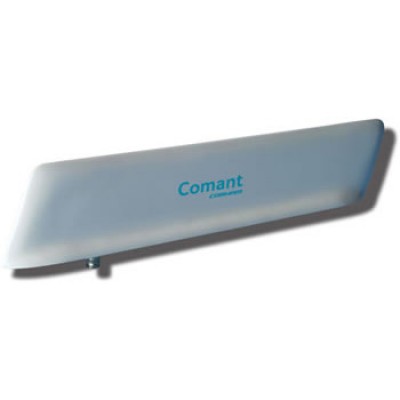

Frequency 75 MHz Designed specifically for high-performance aircraft applications. Features aerodynamic design in a lightweight package. Antenna is a low profile blade-type encased in a molded polyurethane shell. Skydrol and rain erosion resistant. |
MODEL CI 118 MARKER BEACON | |
Electrical | |
Frequency | 75 MHz |
VSWR | 1.5:1 |
Polarization | Parallel to the Mounting Plane |
Radiation Pattern | Partially Downward |
Impedance RF | 50 Ohms |
Resistance DC | DC Grounded |
Power RF | Receive Only |
Mechanical | |
Weight | 0.5 lb. Maximum |
Height | 2.69 in. Maximum |
Finish | Polyurethane Enamel |
Material | Molded Radome |
Connector | BNC |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 45,000 ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160A |
FAA TSO | C35d |
RTCA MOPS | DO-138, DO-143 |
