Comant Marker Beacon - CI-164

$2373.00/Each
Quantity
Add to Wishlist
Part# 11-06850
MFR Model# CI-164

Overview

Frequency • 75 MHz

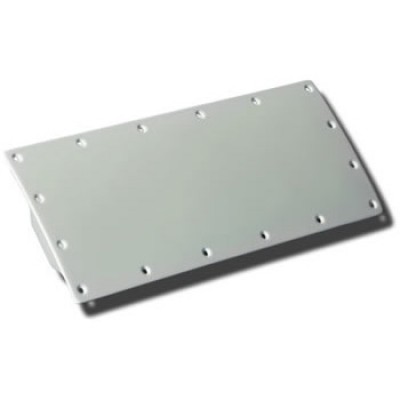

Lightweight flush mount antenna was originally designed for use on military aircraft. Provides for dualmarker beacon signal outputsatthe antenna, eliminating theneed fora separate marker beacon splitter. Antenna is housed in a aluminum enclosure with a glass laminate cover. Internal components are potted in place for mechanical integrity. The CI 164 is designed for curved “crown” surface mounting as is currently used on the Cessna Citation I and II.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 164 MARKER BEACON
Electrical
Frequency
75 MHz
VSWR

1.5:1 Maximum @ 75 Mhz

5.0:1 Maximum @ ± .15 MHz

Polarization
Horizontal
Insolation Between Ports
22dB
Impedance RF
50 Ohms
Resistance DC
DC Grounded
Power RF
Receive Only
Mechanial
Weight
1.0 lb. Maximum
Height
Flush Mount
Material
Aluminum Housing/Glass Laminate Cover
Finish
Polyurethane Enamel
Connector
BNC (Two Places)
Environmental
Temperature
-55ºC to +85º C
Altitude
45,000 ft.
Air Speed
600 Knots TAS at 55,000 ft.
Federal Specifications
RTCA Enviornmental
DO-160A
FAA TSO
C35d
RTCA MOPS
DO-138, DO-143
