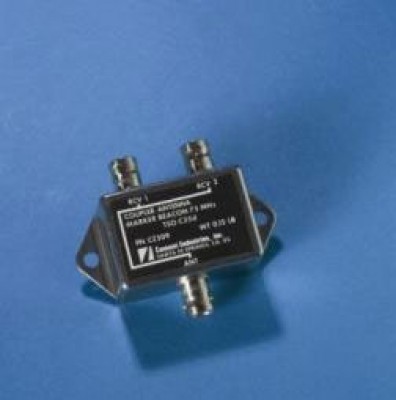

Comant Coupler Marker Beacon - CI-509

$200.85/Each
Quantity
Add to Wishlist
Part# 11-06852
MFR Model# CI-509

Overview

Dual marker beacon coupler permits the use of two marker beacon receivers from one marker beacon antenna. Compact design makes installation easy.

Specifications

MODEL CI 509 COUPLER /MARKER BEACON
Electrical
Frequency
75 MHz
VSWR

1.5:1 Maximum

Insertion Loss
0.5 dB Minimum
Isolation
22 dB Minimum
Impedance RF
50 Ohms
Mechanial
Weight
0.20 lb. Maximum
Height
0.88 in. Maximum
Material
Die Cast Aluminum
Finish
Aluminum
Connector
BNC (Female)
Environmental
Internal Mount
Federal Specifications
FAA TSO
C35d
