COMANT UHF
(CI-200)

$454.00/Each
Quantity
Add to Wishlist
Part# 11-06837
MFR Model# CI-200

Overview

Frequency 450-470 MHz

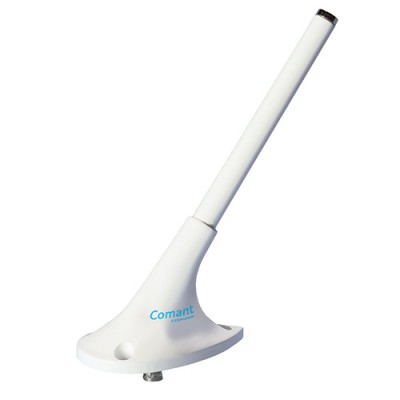

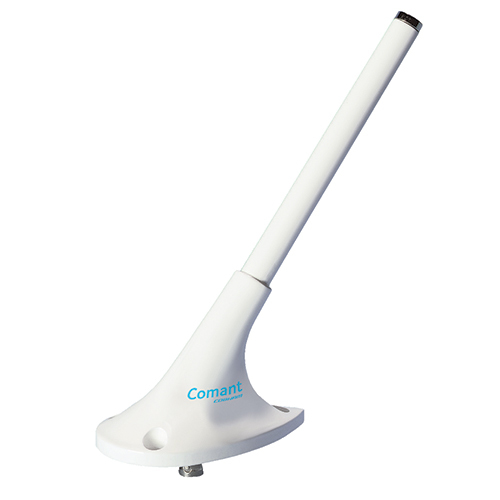

Rugged monopole antenna particularly well-suited to the harsh environments experienced on the underside of an aircraft. Features a very compact 3-hole mounted die-cast aluminum base with the radiator encased in a glass laminate housing.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 200 UHF ANTENNA
Electrical
Frequency
450-470 MHz
VSWR
1.5:1 Maximum
Polarization
Vertical
Radiation Pattern

Omnidirectional

Impedance
50 Ohms
Power RF
30 Watts
Mechanical
Weight
0.5lbs. Maximum
Height
6 -1/8 in. Maximum
Material
Alluminum Alloy / Fiberglass Whip
Finish
Polyurethane Enamel
Connector
BNC (Female)
Environmental
Air Speed
450 Knots TAS at 25,000 ft.
