Martin Fabric Clips

$15.50/Each
Quantity
Add to Wishlist
Part# 09-19400
MFR Model# 80ROLL MIN

Overview

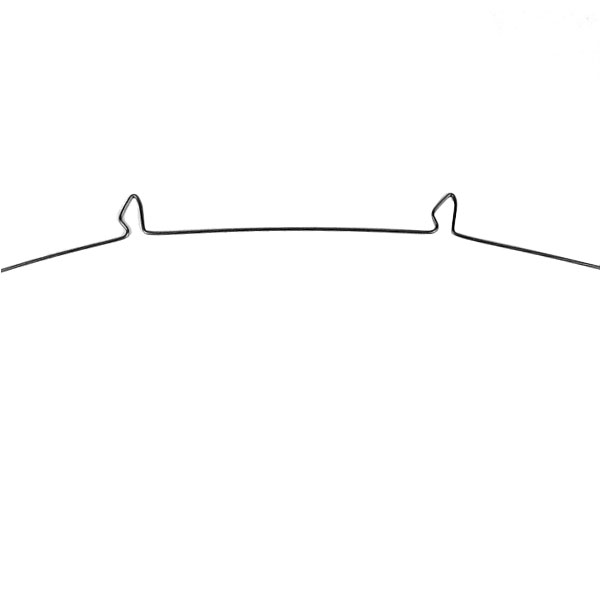

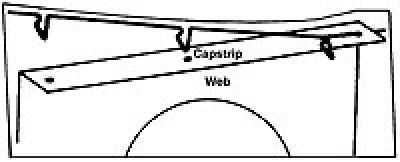

Used to secure fabric to metal ribs in wings and control surfaces. Replaces rib-stitch cord or P-K screws. Provides a more secure and streamlined installation. Drastically reduces covering time. FAA-approved for aircraft listed. Easily adapts to homebuilts with metal ribs. Spacing between clips, 3". Spacing may be reduced to 1-1/2" on high-performance aircraft by using two wires, with clips inserted in alternate holes that are spaced 1-1/2" apart. Fabricated from stainless steel wire. Supplied in 25-ft. continuous coils.

Reviews

5 stars

H. S
September 16, 2020

Well made with consistent. loops. Perfect in the aileron bays of my Aeronca with an Excellent price point as well.

Greg W
June 20, 2020

Great stuff good service

H. S
August 8, 2019

Fast service, quality stuff

H. S
July 29, 2019

they needed work

Robert F
August 5, 2020

had to rework every barb to make it lay down. I am some what POed

Robert F
July 29, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How big should be the holes on the rib be drilled?

1/8" or #30 bit hole size.
