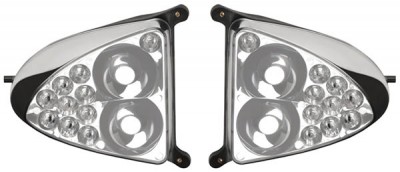

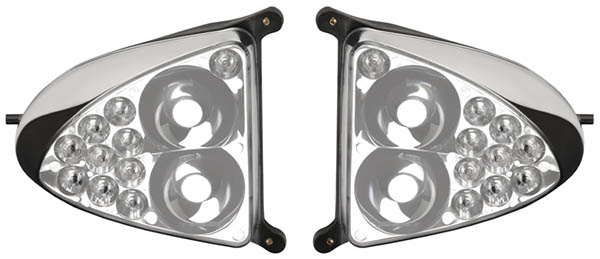

AeroLEDs Aerosun Vx Landing Light For RV Pair Non TSO For Experimental Aircraft

$895.00/Pair
Quantity
Add to Wishlist
Part# 11-12921
MFR Model# 01-2500

Overview

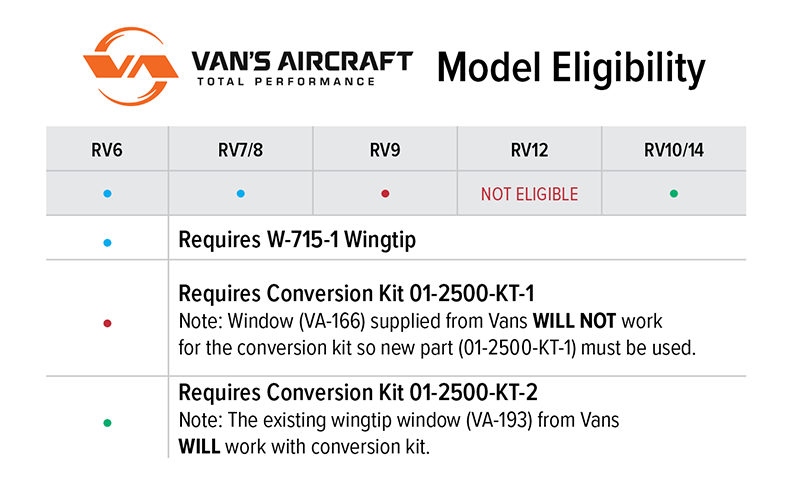

The Aerosun Vx is a high intensity wingtip landing/taxi/recognition light designed specifically for the Van's RV family of aircraft. Each pair draws 165 Watts of power and generate 13,300 lumens of light. The lights include a built-in wig-wag controller for a synchronized recognition light mode. The AeroSun Vx can be installed in any RV-6, RV-7, or RV-8 that has a set of W-715-1 fiberglass wingtip fairings with the 6" wide light cove. RV-9 will require the AeroLEDs conversion Kit P/Ns 01-2500-KT-1 & 01-2500-KT-1A. RV10/14 will require AeroLEDs conversion Kit 01-2500-KT-2 and will work with the existing wingtip window supplied from vans (VA-193).

Note: The AeroSun Vx is not eligible for installation on the RV-12 platform.

Specifications

  • Power:165 Watts
  • Voltage:9-40 VDC
  • Current: 11.8A total for pair at 14VDC, 2.6A taxi mode
  • Pulse: Built In
  • Wig Wag Sync: Built in
  • Lumens:13,300 combined
  • Candela: 120,000 Combined
  • Beam Angle: 20x20
  • Weight: 31 Ounces combined
  • Dimensions:6.3" x 5.7" x 3.4" ea
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the AeroLEDs Aerosun VX be used with AeroLEDs kit 1 position lights?

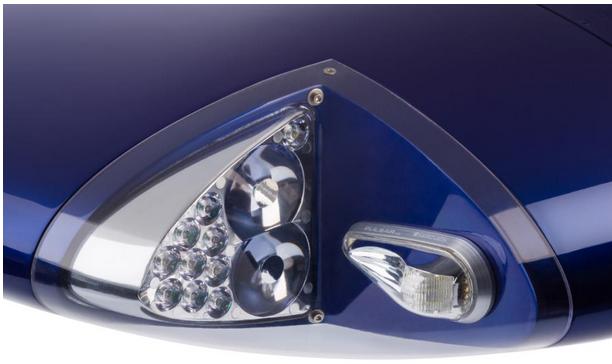

Per the supplier: Yes. See image number 2 on the web page. It shows the AeroSunVx installed in a wingtip with a pair of Pulsar NS90's which is part of the KT 1.

Q: Are these lights, part # 11-12921, sold as a pair?

Yes, these are priced and sold as a pair.

Q: Could you provide more info on the optional wire harnesses? I assume there is one for each light. What kind of connectors are used and how are they terminated on either end?

This kit will include 2 interconnect harnesses (one for each light). Connections to the light will be made using the included butt splices (part # 320559) the other side is left unterminated for customer disposition.

Q: Do you have a wiring schematic for how to connect the AeroLEDs Aerosun VX lights to a switch?

Yes, we have added the wiring diagram as a PDF to this web page. Please download and review it there.
