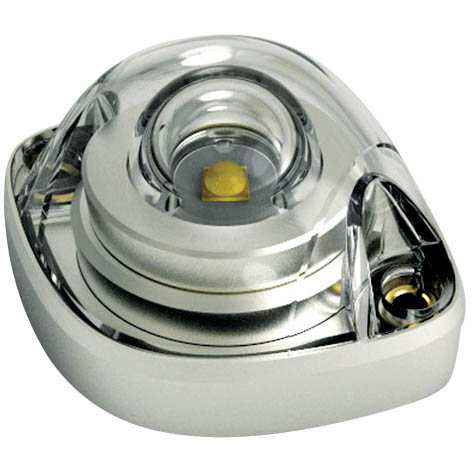

AVEO MINIMAX ARIEL™ LED ANTI-COLLISION / STROBES

Select Color:
WhiteRed
Quantity
Add to Wishlist

Overview

Developed originally at the request of the worlds leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax Ariel is a compact powerhouse of hemispheric light. It is also a great anticollision light to use on the upper and lower fuselage in combination with AveoFlash wing lights due to its incredibly small footprint.

Specifications

  • Weight: 53 g / 1.87 oz
  • Operating Voltage Range: 9 36 V DC
  • Power position: 2.6 W
  • Current strobe (@12V): 2.0 A
  • Current steeady (@12V): 0.22 A
  • Output Power:
  • strobe (Watts): 24 W
  • - Steady: 2.6 W
  • Flash Rate: 100/50 + 50/50 + 50/950(mS)
  • Ambient temperature: from -40C to +75C / from -40F to +167F
  • Overheat protection: Yes, +85C
  • Transient voltage: 60V
  • Under-voltage lockout: 9V, not more
  • Over Voltage Lockout: 36V, not less
  • Waterproof / Vibration-proof / Shock-proof / Dust-proof: YES
  • Wiring: Teflon insulation, 500V / Wire length from base of unit 254mm (10") min.

Drawing
