Corgi Aviation's trim servos are designed to control trim surfaces and other systems in homebuilt and other light aircraft applications. They are commonly installed alongside modern autopilot systems to provide auto-trim functionality, which reduces the need for pilots to trim the aircraft manually when under autopilot control.|

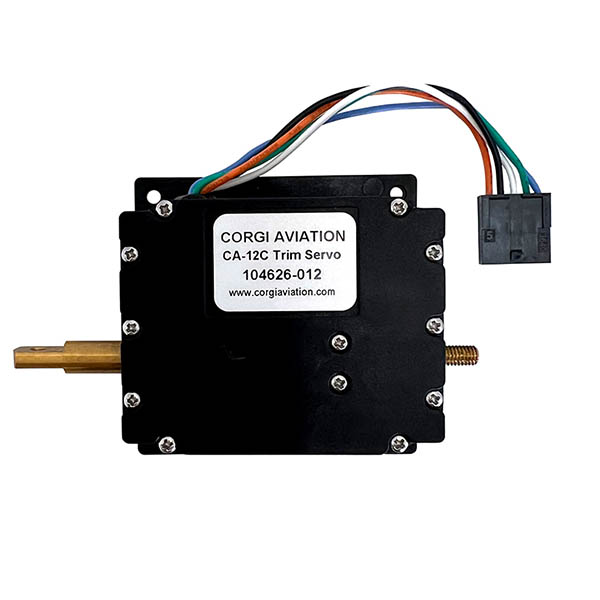

Corgi Aviation makes two styles of Trim Servos. Clevis and threaded shaft models are both available in different lengths.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|Dimensions (L x W x H)||2.750in. x 2.750in. x 1.061in. (69.9mm x 69.9mm x 27.0mm)|
|Operating Temperature||-22F to 140F (-30C to 60C)|
|Storage Temperature||-40F to 158F (-40C to 70C)|
|Operating Voltage||6-15V DC|
|Housing Material||Glass-Filled Nylon|
|Shaft End Type||Clevis||Threaded #10-32|
|Shaft Travel||0.7in (17.8mm)||1.0in (25.4mm)||1.1in. (27.9mm)||1.2in. (30.5mm)||0.7in (17.8mm)||1.1in. (27.9mm)|
|Travel Time (@13.5V DC)||11 Sec||14 Sec||17 Sec||18 Sec||11 Sec||17 Sec|
|Max Operating Thrust||50lb|
|Max Static Load||500lb|
|No Load Current (@12V DC)||95mA|
|Max Stall Current (@12V DC)||1.4A|
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These trim servos are intended for installation in experimental aircraft only.
Yes. They do stop at the end of the travel automatically, no external limit switches needed.
