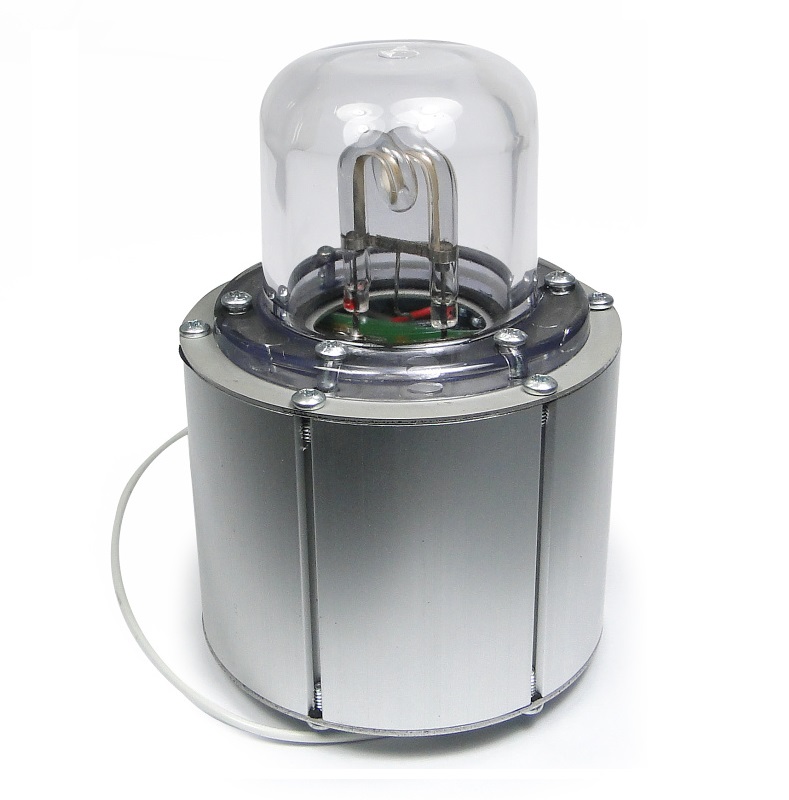

|This precision compact unit mounts easily on top or below fuselage, and directly replaces rotating beacons. It features a high-intensity Xenon arc lamp, a high-efficiency push pull inverter circuit for stable flash voltage and a flame-resistant military circuit board assembly. The lamp is readily replaceable without removing the unit from the aircraft, and the unit weighs only 1lb. 4oz. the flight strobe FS-4400 is visible for over 50 miles at night, in haze, smog or bright sunlight and is manufactured using the highest quality components for maximum reliability and service life. Amp draw 3 Amp. (14V) & 1.5 Amp (28V). STC'D for Cessna 180. FAA form 337 for field approval is required for installation of other certified aircraft. Order adapter separately.|
Along with the adapter, the installation was a direct swap.
Do not buy this unit, the bulb that comes with has constant problems, I have been using it for three or four years and had to change the bulbs several times because of the solder coming loose on the housing or is burning out prematurely. You may save some money buying this unit but you will spend a lot more in the long run on bulbs.
quality product. perfect hole pattern.
Sounds like a nice strobe unit. But it is not available to order with the red lens. The customer must order that separately at an additional $25.60 plus tax and shipping.
Very bright and works as advertised, but they also create a very noticeable whine in the headphones/audio panel. Installing a high quality line filter helped a bit, but not enough to warrant keeping this strobe. Had to remove it and install an alternate unit.
Installed the unit via field approval. This light is probably the best value around. I keep the light on all the time. About 1500 hours of usage or a bit more. strongly recommended, the new LED lights are great too, but this old school traditional light is simply reliable and works. Only one wire hook up if you have a metal airplane, the skin is the ground. Easy and cool.
Best bang for the buck ever. Bright dependable flash. I can use superlatives or just report that its bright strong and I use it all the time. No drama no BS it just works.
Fantastic light that provides very bright and adequate source. I have it installed on a PA28-140. Also, for replacement parts, its fantastic!
The FS 4400 comes stock with a clear lens only. Red/White or Red lens replacements or only available seperately.
FS-4400 FLIGHT STROBE flashes on/off. We set the flash rate at about 50/minute.
The mounting case for the FS 4400 has a diameter of 3.75"
Yes, the bulb is included with the FS 4400.
No, there is no mounting bracket included. An adapter must be purchased separately for a belly installation, it can be found under part # 11-06500. We have added the PDF of the installation instructions and the STC to the Documents tab of this web page for your review.

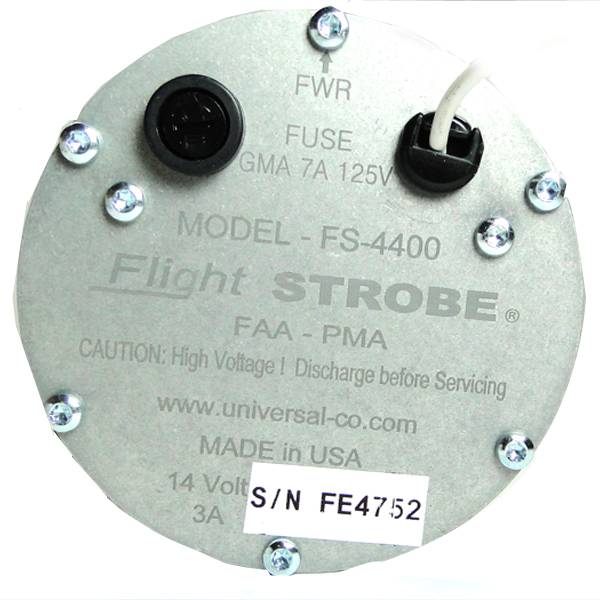

We have added the photo of the bottom of the unit to show the wire.
It is self contained. Its for a 14volt system which is basically the same as a 12volt. The system usually operates at around 12volts but can peak/spike up to 14volts so it is referred to as 14v system.
Overall height=5.25" | Diameter of base= 3.75" | Lens height= 2.5" | Lens diameter= 2.25"
