GARMIN GLARESHIELD MOUNT TNC GPS ANTENNA FOR G5 FAA-TSO

$199.95/Each
Quantity
Add to Wishlist
Part# 10-06987
MFR Model# 010-12444-00

Overview

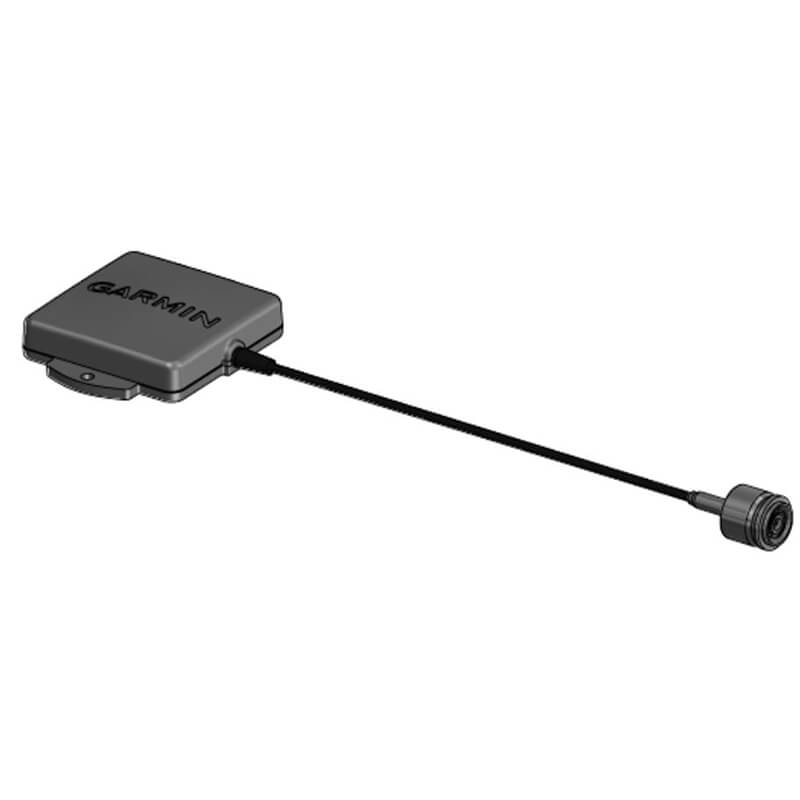

The glareshield-mounted GPS antenna (Garmin part number 011-04036-00) feeds a GPS receiver inside the G5 which provides position, velocity, and time data to support various functions.

If the primary G5 is installed as an ADI, HSI, or DG and not connected to a WAAS enabled GPS source, the G5 must be connected to this antenna.

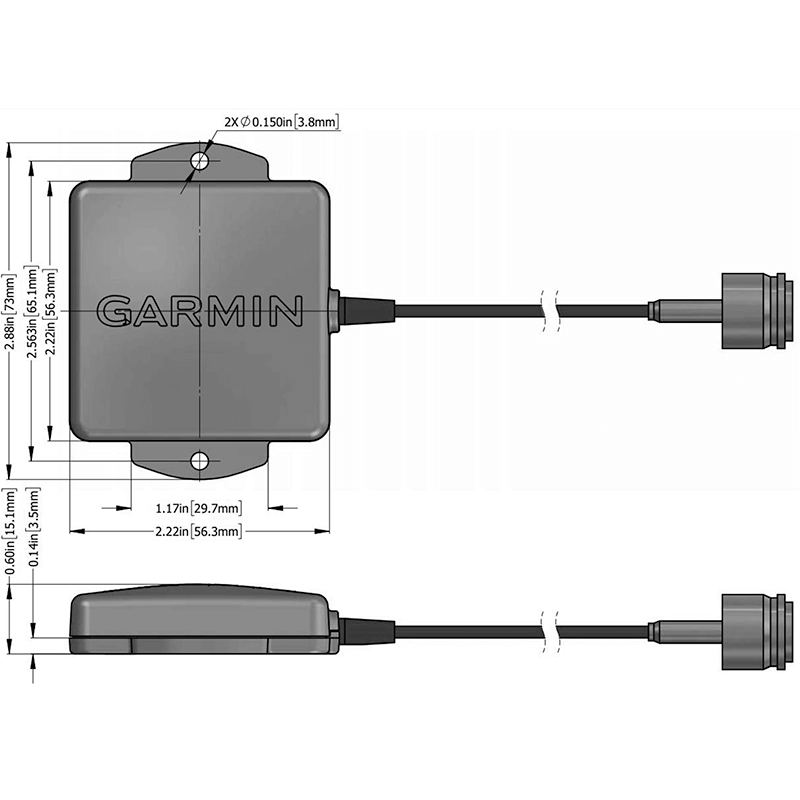

It is designed for installation on top of an existing instrument panel glareshield. The selected location must offer good visibility of the sky through the windshield. Installation of the GPS antenna cannot obstruct or limit the pilot’s vision (even though the antenna has a low profile). The optimal antenna position is horizontal, or as close to horizontal as practical given the shape of the glareshield.

Fastener holes for screw-mounted antenna installation must not penetrate through the ventilation or defrost channels built into the glareshield, if present. If the glareshield is part of the instrument panel structure, fastener holes may only be drilled if provisioned by the aircraft maintenance manual or structural repair manual.

A TNC/BNC Adaptor (P/N 11-17444) is required to connect the GPS antenna to the G5.

Reviews

It does what it needs to, but, why not put a standard connector on the end? Garmin puts a threaded BNC on the end then they want you to spend $95 for a BNC-TNC adapter

Chinookflight L
February 9, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of connector is on this, SMA?

This antenna has a TNC connector. In order to connect to a G5 you will also need p/n: 11-17444.

Q: How long is the Garmin antenna # 010-12444-00 cable?

This antenna cable is approximately 8 ft long.

Q: What external mounted GPS antenna would replace this antenna ( 011-04036-10 ) ?

Unfortunately the STC for the G5 does not provide an alternative antenna.

Q: Is this Garmin glareshield mount GPS antenna a WAAS GPS antenna?

No it is not a WAAS GPS antenna.

Q: Will I need to get a separate antenna for the aera660 if I plan to use this on a G5?

It is not required as the unit has a built-in receiver/antenna. However it is recommended to use one for a secure signal.
