P5 ON-OFF ALTERNATE ACTION SWITCH - PRESS FIT

Select Color:
Red Black White
Quantity
Add to Wishlist

Overview

Push and the P5 series switch holds “on” push again and the P5 switch turns “off”. Positive tactile feedback is featured so the operator is clearly aware the switch mode has been executed. The button returns to the original position after each actuation.

To guard against front panel splash and dirt, the P5 series is sealed at the button with OTTO’s patented rolling sleeve principle.The terminals are sealed with epoxy, providing a seal against flux during wiring and behind panel dirt and moisture. The combination of sealing provides smooth operation over a wide temperature range. Watertight sealing to 1meter (IP68) pressure is also available.

Load Amps Life (Full Load)
Resistive 10 25,000
Inductive 5 25,000
Motor 3 25,000
Lamp 1 25,000


Switch
Part No.

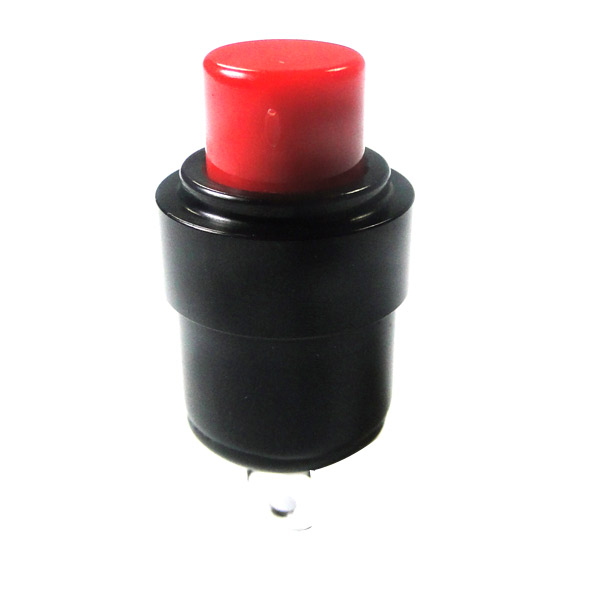

Press Fit - Red
P5115221
11-00796

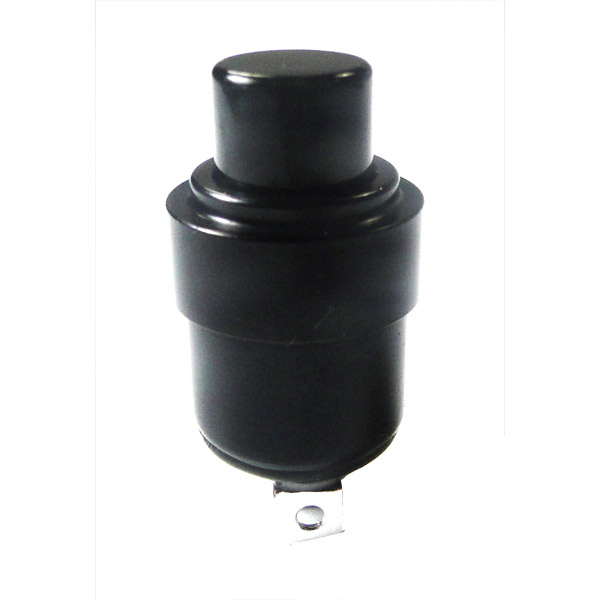

Press Fit - Black
P5-115222
11-00797

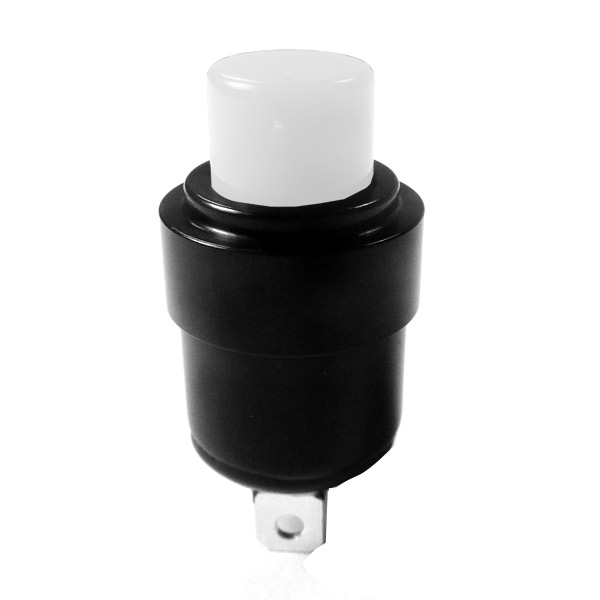

Press Fit - White
P5-115229
11-00798
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Q&A

Q: Does the P5 push switch have a light that glows when it is on?

No, these switched are not lighted.

Q: what is meant by positive tactile feedback, and how does this differ from your other push button switches?

It has a very pronounced click, both in feel and noise. It does this to make it obvious that the button has been pressed.
