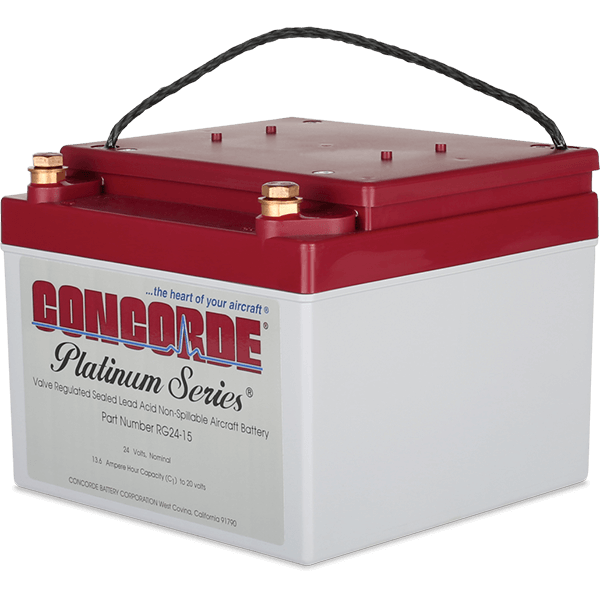

CONCORDE RG-24-15 PLATINUM SERIES SEALED LEAD ACID AIRCRAFT BATTERY

$699.00/Each
Quantity
Add to Wishlist
Part# 11-03878
MFR Model# RG24-15

Overview

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG® Series batteries ship non-HAZMAT

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

This Concorde Battery is TSO Approved under FAA TSO-C173a . TSO Approved authorizes Concorde Battery to produce a part to a Technical Standard Order. TSO Approved is both design and production approval of the battery.

Battery Type
Voltage
Ampere Hours
Max. Weight
Our P/N
Battery Diagram PDF
RG-24-15
Platinum
Series
24
13.6
29.5 lbs.
11-03878

In The Box

  • 1 - RG-24-15 Battery
  • 1 - 9771 Hold Down Bar
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Aircraft manufacturers recommended, specified or OEM parts. The battery was at my door in 4 days. Best price I could find. Glad I found a solid supplier of parts and accessories for my aircraft needs. Thank you, David.

David L Verified Purchase

CONCORDE SEALED BATTERY RG24-15

July 23, 2021

Product was a little different than what was needed but that was a minor issue for the application we needed.

Erik S Verified Purchase

CONCORDE SEALED BATTERY RG24-15

June 3, 2021

This is a great product. A big improvement over the old lead acid technology. A bit pricey but worth it. The battery I just now replaced was also a Concord 24-15 and it was still going strong after 8 years. I didn’t want to push things too far so decided to buy another one.

David J Verified Purchase

CONCORDE SEALED BATTERY RG24-15

May 25, 2021

arrived on schedule, with fresh date, shipped from mfr, feb 12,went to Peach Tree Ga. then shipped to me arrived late afternoon of 24th . Installed feb 25th. performed well

William C
March 8, 2021

great product

Anthon R
January 3, 2021

Bought my second of these in order to euthanize the first after nearly eight years of faithful service. My load testing was starting to indicate that the previous battery was finally deteriorating. Kudos to Aircraft Spruce for their inventory management in not allowing these things to get old in their warehouse. The battery they shipped indicated that it had been manufactured just three months prior.

Paul K
January 1, 2021

Great service

Kevin J
December 30, 2020

Battery arrived in 2 days, was well packaged. It was 6 months old so checked the voltage as per the included instructions which indicated 25.45 volts. Instructions said to charge it if below 25.5 volts so did so. Installed perfectly in C172N. Keeping a peep charger on it as per Concord recommendations. Have high expectations that it will last more than 3 years like the previous Gill.

Dave B
May 8, 2020

Fast, easy.fair price and quick delivery

Scott C
November 28, 2019

First one lasted 8+ years so replaced with another identical model. They live on a BatteryMinder/desulfator when not in flight or on a trip. Excellent product.

Gary F
June 14, 2019

Q&A

Q: What exactly would I require to charge this Battery? (RG24-15)

Concorde recommends the BatteryMINDer part number 11-14352 to charge this battery.

Q: Does the Concorde RG24-15 come with a hold down bar (Concorde PN 9771)?

Yes, this does come with a hold down bar.

Q: What Concorde battery replaces the Gill G242 battery?

That crosses to an RG24-12.

Q: What is the difference between an RG24-15 and RG24-15M?

The RG24-15M has a vent.

Q: Whats the difference between the RG24-15 and Rg24-15A1?

The RG24-15A1 is not an aircraft battery. It is intended for installation on a generator used by the army. They are roughly the same dimensionally, but the RG24-15A1 has a different terminal, it is not FAA approved, etc.

Q: What Concorde battery replaces a Gill G241?

Should be an RG24-11 or RG24-11M if you require the manifold.

Q: How many CCA does the Concorde RG24-15 have?

200 CCA.

Q: What is the difference between the RG24-15 and the RG24-16?

The dimensions. The -16 isn't quite as wide.
