Start Pac Portable Power Supply Model 53105M

$3658.00/Each
Quantity
Add to Wishlist
Part# 11-06834
MFR Model# 53105M

Overview

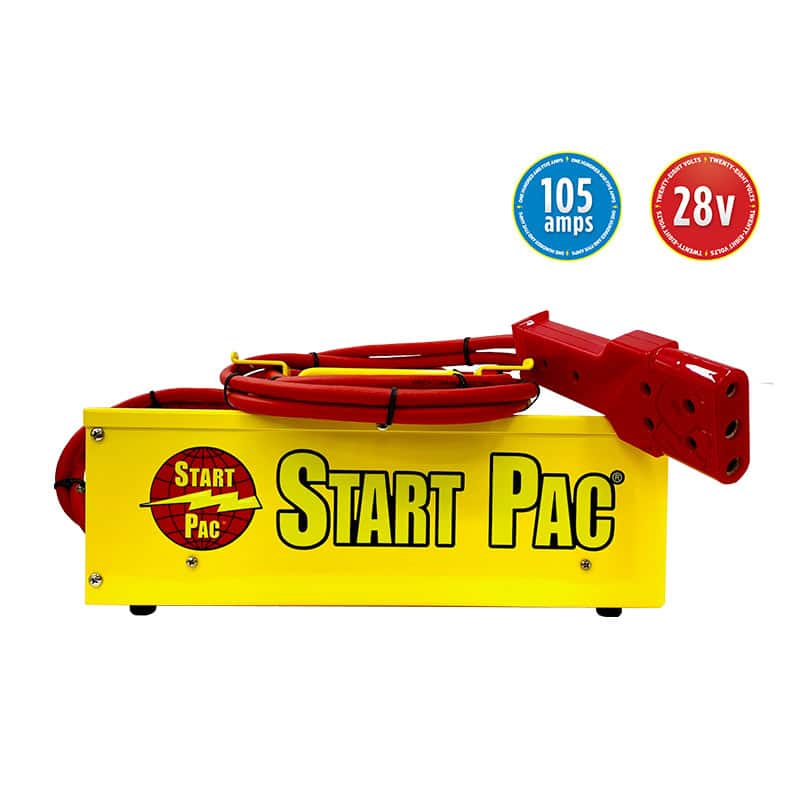

Start PacŪ Model 53105 is a 28.5 Volt continuous DC power supply when plugged into 220Volt single-phase AC power. This unit will deliver full 105 amp DC output, but will not provide enough current for engine starting. Therefore this unit is designed for maintenance and to power up various functions such as inverters, avionics, GPS, etc. Made in the USA.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Maximum Continuous Current output 105 A
DC voltage output 28.5 VDC
AC voltage input 90 - 240 VAC
AC current input at maximum DC power output 27 A @110VAC 14 A @220VAC
Phase Single
Forced air-cooling Yes
Over current protection Yes
Over voltage protection Yes
Over temperature protection Yes
Complete weight with aircraft cables 12lbs / 5.4kg
Dimensions Length x Width x Height 16" x 4-3/8" x 5-1/4" (40 x 11.5 x 13.3 cm)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I ordered a START-PAC 53105 power supply with the 28.5v and 105amp power for our Citation XLS+. Just used it to power the aircraft avionics systems and it works as advertised. Makes it easy to update the avionics. That is the reason we purchased the unit.

Harvey M Verified Purchase

START PAC 53105 POWER SUPPLY 28.5V 105AMP

November 8, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How long is the input cable and are there options on the length?

The aircraft cable is 8 foot long. They can be ordered with a custom cable length but the vendor does not recommend longer than 15 feet to avoid amperage loss.

Q: What type of input plug does this Start Pac portable power supply Model 53105M have?

This unit is provided with a detachable 50 FT 12-AWG power cord with bare wire ends so you can install the type of plug needed to match your AC wall receptacle.

Q: What is the required electrical service for the Start Pac 53105M?

To deliver the rated DC output, this unit requires 220V AC 50/60 Hz, 20-amp breaker service, single phase power.

Q: How long is the DC output cable to the aircraft and are there options on the length?

The aircraft cable is 8 feet long, terminated with a standard 3-pin oval plug. The cable is not detachable, not field retrofittable. Can be ordered with up a custom length cable, but vendor does not recommend longer than 15 feet to avoid amperage loss.

Q: What gauge is the wire used for the DC output cable? Is it detachable?

The cable uses 4-AWG wire. No, it is not detachable. Permanently wired.
