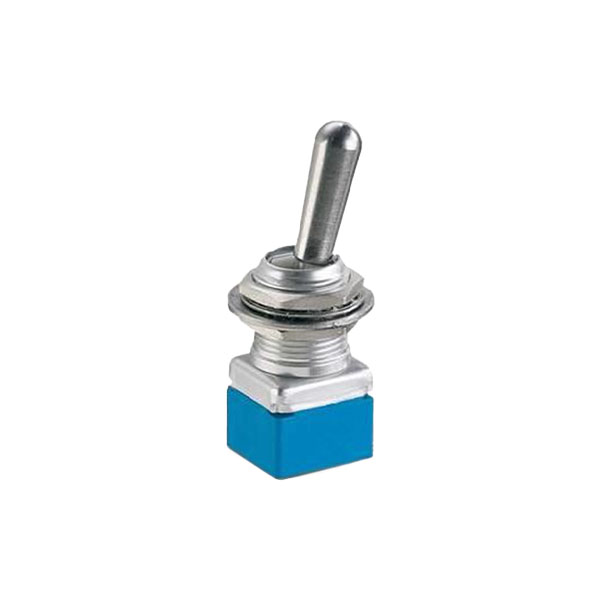

Otto T3 Miniature Toggle Switches Sealed 15/32 Bushing

From $38.50 to $42.70
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

# of Poles MIL No. OTTO No. Circuit Our Part No. Price Buy
1MS27718-21-1T3-11111on-off-on
11-00772
$38.50
Quantity
1MS27718-22-1T3-11121off-on
11-00773
$38.60
Quantity
1MS27718-23-1T3-11131on-on
11-00774
$38.70
Quantity
1MS27718-26-1T3-11141mom-on
11-00775
$39.95
Quantity
1MS27718-27-1T3-11151mom-off-mom
11-00776
$41.90
Quantity
1MS27718-31-1T3-11161mom-off-on
11-00777
$39.85
Quantity
2MS27719-22-1T3-11221off-on
11-00779
$39.85
Quantity
2MS27719-23-1T3-11231on-on
11-00780
$41.50
Quantity
2MS27719-27-1T3-11251mom-off-mom
11-00782
$42.70
Quantity
2MS27728-31-1T3-11261mom-off-on
11-00783
$41.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These miniature toggles are rugged, highly reliable switches offering positive detent action for safe switching operation. Featuring the unique OTTO snap-action switch mechanism in conjunction with a unique toggle actuator design, the T3 series offers snap-action contact actuation.

High contact pressure and superior wiping action of the OTTO design makes the T3 series an excellent choice for switching loads from logic level up to 5 amps.

15/32" sealed bushing construction, momentary and/or maintained operation.

Mounting hardware provided includes two hex nuts, one lockwasher and one keyway washer.

Note: MOM designates Momentary On.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Snap-action contact actuation
  • Shorter behind panel depth
  • Superior wiping action keeps contacts clean
  • Positive tactile response prevents operating errors
  • Weighs up to 25% less than competitive products
  • More contact/terminal plating choices
  • Highly reliable: simpler design, fewer parts
  • Black matte finish available (contact factory)
  • RoHS/WEEE/Reach compliant

Specifications

Specifictions

Ratings

Ratings
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Mike C Verified Purchase

Mini Goggle Switch T3-11121 Sealed

July 8, 2021

Nice MIL quality switch. Just what I needed for my cabin dome light on my vintage aircraft.

Tony
October 5, 2017
