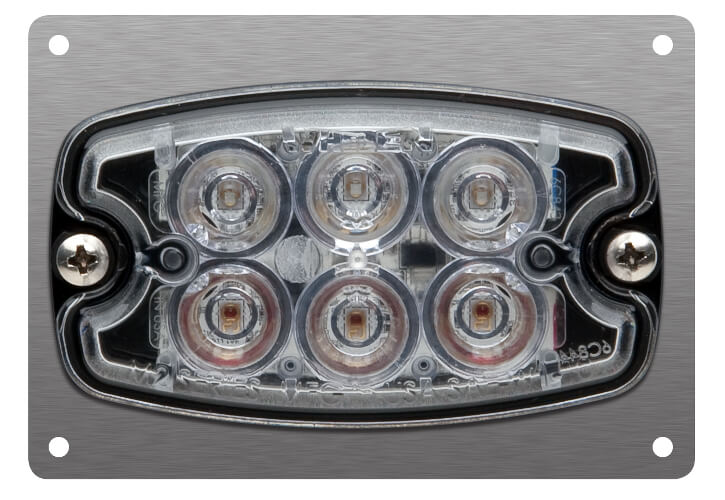

Whelen 71685 Recognition LED Landing Light Assembly Non TSO

Select Voltage:
Add to Wishlist


71685 Series LED Recognition/Landing light assembly. No FAA Approval.
California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to


  • Weight with Lens: 0.28 lbs. (127gm)
  • Dimensions H x W x D: 2.07 (53mm) x 3.64 (93mm) x Depth: 0.979 (25mm)
  • Frequently Purchased With
  • Customers Also Viewed


Great replacement for Ductworks lead edge landing lights LID lamps....fits perfectly!

Steve S Verified Purchase

WHELEN LED LIGHT 01-0771685-01

May 5, 2023

Small, lightweight, easy installation and surprisingly bright. No noise, well designed. 1 amp v 12 amps for an incandescent. Whelen never disappoints.

Nick A
December 17, 2018

Very easy to install. Not as bright as some led landing lights but I find it sufficient.

Michael R
August 25, 2017

I bought two of these as replacements for an E-LSA. Since the design was different than the original lights I had to trim and modify the backplate to get these to fit. The light output is sufficient and the price is good. No noise in the radio during operation. There are more powerful Whelen LEDs but at double the cost

James P
September 21, 2017

Disappointed with the very low intensity and will be looking for a replacement. The 24V version that was installed in my plane actually cut out below 26V (usually right after landing when going to engine idle!) and needed to be replaced by the manufacturer.

January 22, 2024


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the amperage of the Whelen 71685 Recognition Landing Light Assembly?

The amperage is listed in the Drawing And Specifications Sheet listed as a PDF in the 'Documents' tab of this web page. Please review the specs there.

Q: What is the lumen output?

Per the manufacturer the lumen output on P/N 11-11189 is 10k candle power.

Q: Is this a FAA TSOd landing light that I can put in a cessna 150?

No, the Whelen 71685 series does not have any FAA Approval.

Q: Can you run these on 12V rather than 14V? Im not sure how to get a 14V circuit out of a 12V electrical system.

Yes, these can run on 12v or 14v systems.

Q: Can you connect this up with another light to flash? Your catalogue says can be used in conjunction with 71115 Flasher control assembly. However I cannot find this part? If its obselete is there another part that will work with this light to make them flash?

Yes, The 01-0771685-01 can be flashed. They can utilize any type of aircraft flasher, we would recommend something like the maxpulse system. Part number 11-06998.
