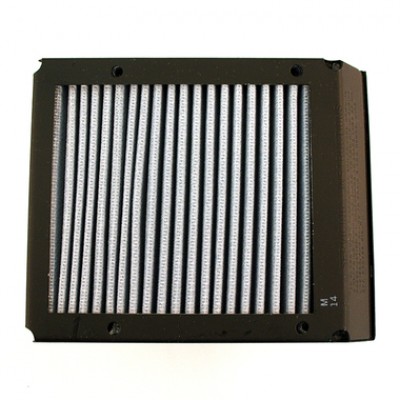

Air-Maze 600314 Air Filter

$106.80/Each
Part# 08-01542
MFR Model# 600314

Overview

Applicability: Continental A-65, A-75, C-85, C-90, and C-125; Luscombe 8A through 8F, Taylorcraft, Cessna 140, Swift GC-1A and GC-1B, etc.; Piper J-3 through J-5, PA-11, PA-15, PA-17, PA-18 (90hp, 105hp, 125hp models) and PA-22 (125hp models)

Prior to use, oil by dipping in Grade 1 or Grade 2 of MIL-L-21260, and allow to drain for 2 to 4 hours. Wipe off excess oil.

Supercedes 40599 and 460-639

Reviews

excellent works great

Carl E Verified Purchase

FILTER #A40599 CARB INTAKE

August 30, 2022

Works great, fit my Aeronca Champ w/ C-85

Michael Y Verified Purchase

FILTER #A40599 CARB INTAKE

November 19, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the Air Maze 600314 air filter?

5" x 6.5"

Q: What is the thickness of the Air Maze 600314 air filter?

P/N# 08-01542 has a thickness of 1".

Q: Is there a bracket or retainer that goes in front of the filter?

The filter is in a metal case that attaches to the airbox. No need for a bracket or retainer.

Q: What are the dimensions of the A40599 air filter?

5" x 6.5".

Q: What is complete dimensions of the filter and box?

5" x 6" x 1"

Q: What are the mounting hole spacing on the 600314 air filter and box? I have continental P/N 50256 heat box which has 4-1/2 hole spacing width and aprox 3-1/4 length spacing.

These are spaced a 4-1/2 and 3-1/4

Q: Does it come with the retaining bolts?

No the hardware is not included.
