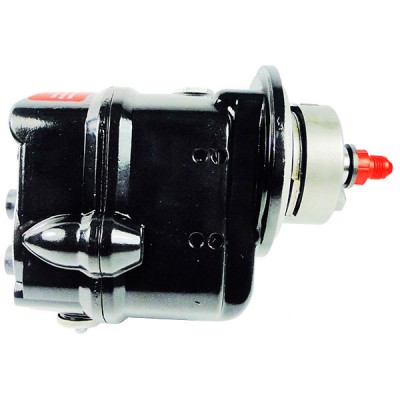

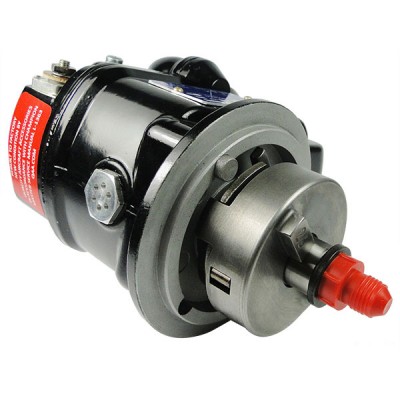

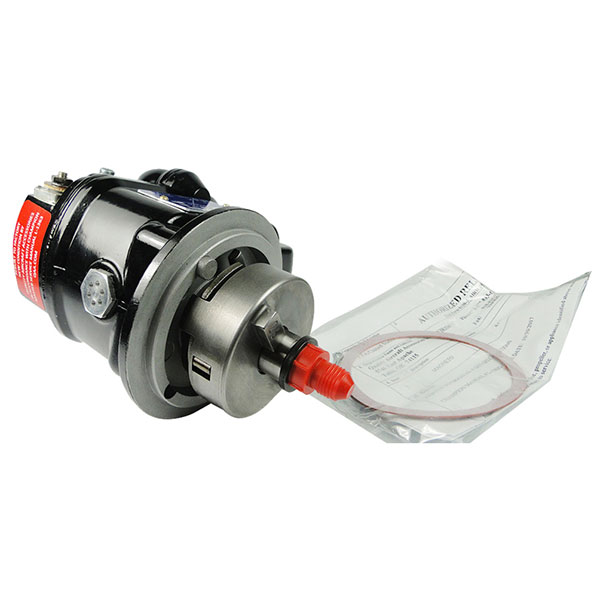

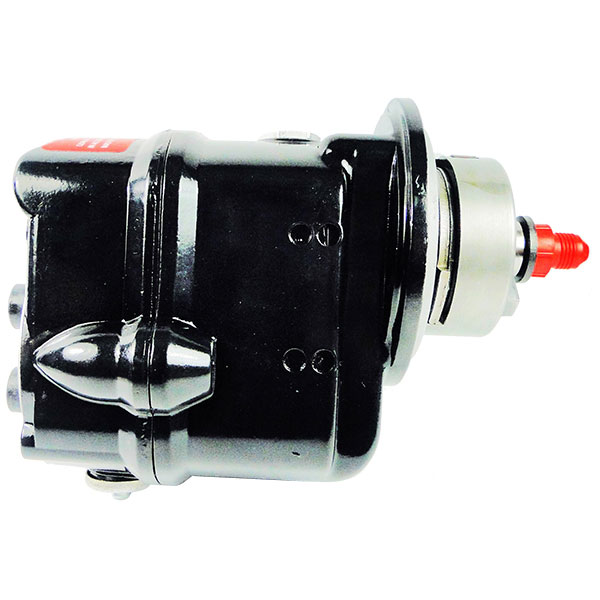

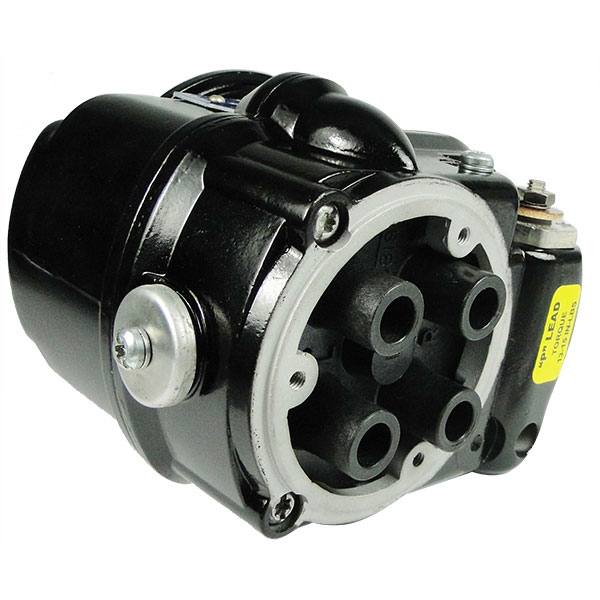

CHAMPION OVERHAULED 4300 SERIES SLICK MAGNETOS BY QAA

From $995.00 to $1123.00
Description PN Price Buy
4309R Champion Overhauled Slick Mag Non Impulsed by QAA
08-13930
$1007.00
Quantity
4310R Champion Overhauled Slick Mag Non Impulsed by QAA
08-13931
$995.00
Quantity
4370R Champion Overhauled Slick Mag Non Impulsed by QAA
08-13916
$995.00
Quantity
4371R Champion Overhauled Slick Mag Impulsed by QAA
08-13915
$995.00
Quantity
4372R Champion Overhauled Slick Mag Impulsed by QAA
08-13928
$1007.00
Quantity
4373R Champion Overhauled Slick Mag Impulsed by QAA
08-13921
$995.00
Quantity
4381R Champion Overhauled Slick Mag Impulsed by QAA
08-13918
$995.00
Quantity
4301R Champion Rebuilt Slick Mag Imp Coupled
08-13927
$1123.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

NOTE 1: Magnetos are overhauled by Quality Aircraft Accessories. Quality Aircraft Accessories is the Champion Authorized Repair Station for Slick Magnetos.

NOTE 2: Please remove drive gears before returning Magneto cores for "Core Credit."

These lightweight aircraft magnetos are being used by many new equipment manufacturers. Weigh only 3-3/4 lbs. compared to 6-1/4 lbs. for typical old style magnetos.

In early 1988, Slick discontinued the sale of re-manufactured magnetos to offer new units only.

All units carry a 12-month warranty after delivery to the user. These model magnetos are completely rebuild-able. The old 4000/4100 series magnetos and the 600 series magnetos may not be returned as an exchange unit for a new magneto of the same model. Most other Magnetos may be returned for core credit.

Drive gears are not included. *When purchasing slick magneto separately gaskets are not included.

4300 series is a direct replacement for previous 4200 series Magnetos.

All Slick Magneto and harness prices shown are well below Slick Factory list price; we will beat any competitor's "Advertised Price!"
    Slick Harnesses in Custom Colors:
    Slick harnesses come standard in red. Harnesses are available in black on a special order basis.
Additional core charge added to purchase at time of checkout

Application Guide

Application Guide

Rebuilt vs Overhauled

Overhaul and Rebuild are terms commonly used in Aviation to refer to the condition of a part. People in the Aviation industry often use these words interchangeably; it is easy to see the parts as the same and generally the overhaul is less expensive. Often people are left asking, “why should I get a Rebuilt unit when an overhauled is the same for less?”. The two terms are different because of the type of work performed. An Overhaul means that a part is disassembled and examined, parts are replaced as necessary according to the manufacturer’s overhaul manual. To consider a part in Rebuilt condition it must be brought back to factory new specifications as per the manufacturer. Contrasting the two definitions highlights the disparity between Rebuilt and Overhauled. The differences between a Rebuilt and Overhauled Slick magneto also shows how the two work processes will affect the condition of the magneto you receive. The purpose of this post is to help show differences in the two services from a technical perspective.

Certain parts are required to be replaced in both the Overhaul and Rebuild processes, such as the points, capacitor, oil seal, rotor gear, and impulse spring, so these parts are not worth going in depth on. The parts in question are the coil, impulse coupling assembly, block and gear. During the Rebuild process all of these items are replaced 100% of the time with new parts from Champion. The Overhaul manual states, “Additional parts may require replacement depending on conditions as determined during magneto inspection.” For the coil the extent of inspection is “inspect for visible radial cracks” and testing “for primary and secondary circuit resistance and continuity” according to the Champion Manual L-1363. Testing the resistance and continuity is objective and easy to see when the coil is outside of tolerances but visually inspecting a part for cracks relies on a judgment call whether the part should be replaced. The same issue comes up with the impulse coupling assembly, block and gear inspections. In total for these two parts the Overhaul manual calls out for inspection of eight different aspects of the parts. These inspections are based on a technician visually checking for cracks, rust, pitting, damage, or loose parts “using acceptable procedures” per the manual. These inspections rely a large amount on technician visual inspection which can introduces subjectivity into the overhaul process of the magneto.

Further complicating the Overhaul process is that the manual states, “discard all parts removed for overhaul replacement and REPLACE WITH NEW CHAMPION AEROSPACE PARTS.” The Overhaul manual itself is requiring for the Slick Magneto to be replaced by all new parts. Now you may be asking yourself, why don’t more vendors just go ahead and replace all these parts with new items automatically? The answer is because some vendors use DER manuals which allows them to use serviceable parts instead of new. Champion advises the use of these techniques is problematic, “Salvaged magneto parts, reworked parts obtained from non-Champion Aerospace approved sources, or parts the service history of which is unknown or cannot be authenticated, may have been subjected to unacceptable stresses or temperatures, or have other hidden damage, not discernible through routine visual or usual nondestructive testing techniques.” Well maybe some vendors can get around this by using Champion parts from used Slick magnetos but Champion goes on to state, “service worn parts should never be used to troubleshoot or repair a magneto, nor should original parts be replaced by used service worn parts on magnetos being returned to service.” So we are left with the manufacturer stating only to use new replacement parts for all overhauls as deemed necessary by a technician. The best solution is to go with a Rebuilt magneto that is going new replacement parts used every time. Additionally, the rebuilt magneto is going to come with the same 1-year warranty as a new magneto because of the quality of the works and parts.

From a technical perspective, it is clear to see the contrasts in a Rebuilt and Overhauled Slick magneto. During the rebuild process, the magneto is consistently replaced with high quality parts no matter the situation. The Overhaul process allows for interpretation of what is acceptable wear on the parts and is often replaced with serviceable parts to complete the overhaul. The manufacturer’s manual is clear on that the parts should already be nearly rebuilt when they are serviced every time. The question to ask yourself next time you are looking for repair of your Slick magneto is do you want to leave it up to chance of what parts may go into your magneto or do you want the certainty that comes with have all new parts in your Rebuilt Slick magneto?
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

I installed 4 on my Twin Comanche. They arrived packaged well ,cotter pin and gasket included,.once the BO was filled the installation was went smooth. I only have 1 hour of maintenance time on them but time will tell how well they work. , somewhat too early to make that determination.

George K
August 29, 2019

When my O-320 engine was overhauled on my Grumman Cheetah in 2015 it came with rebuilt mags by this same company. Worked fine until recently when I noticed the aircraft was hard to start when hot (non-fuel injected). My IA said this is usually a failing impulse coupler (and condenser). Bought a replacement 4173R (rebuilt) and installed it and it works great and runs smooth. Of concern is that the paperwork said Overhauled when I ordered a Rebuilt. Didnt really have a choice but to install it anyway. Sure hope I didnt get an Overhauled mag when I asked (and paid for) a Rebuilt. Time will tell if this mag stays working. So far, so good.

Tracy N
May 31, 2019

Great Value. Easy swap. Run perfect. Nice to have the 8130s too.

Rick
July 9, 2018

Installed these after the Kelly Overhauled Magneto, failed to start the Grumman AA5. The Kellys worked fine after the plane was running, but left me stranded by the 20th start. These Champions have everything replaced, including the coil and condenser. Money better spent, in my experience.

Jeffrey F
May 23, 2017

Grateful that Spruce had in stock when no one did!! Ordered the QAA Slick 4373R. Noted that the impulse coupler was greasy with dirty grease came with FAA 8130. We ran it on the magneto bench and it operated fine. Typical Covid 19 shipping. 2 to 3 days later than expected, not Spruces fault.

Prairie W
August 24, 2020

Well Im back, 2.5 years later, and the 4371 impulse coupled mag only lasted 300 hours on my Cheetah/O320. I think it was the condenser, since the starts and final start were always good. Was dead two mins later at the runup. Total time: 300 hours, 660 flights, and approx 725 starts. Unacceptable. Out of warranty. Im buying a Surefly mag. Im done with the insanity of flying with two Slick mags.

Jeffrey F
November 25, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I need a Slick rebuilt magneto #4371 Left hand rotation with impulse. Do you sell them? All I see is 4371R-not 4371L.

The "R" in the part number just means it is overhauled. A 4371 is a left hand rotation mag.

Q: Regarding the 4370/7371 Slick Magneto, What is the difference between Overhaul and Rebuilt?

Overhauled and rebuild magneto's share different replacement parts. When they overhaul a unit they tear down the magneto and only replace the parts that needs to be replaced. A rebuilt unit is where they replace all the parts in the magneto with brand new parts.

Q: Will a 4200 series mag be accepted as a core?

Yes, quality aircraft will accept 4200 series as core.

Q: I am planning on switching from Bendix to Slick. Will a Bendix core be accepted?

Per QAA: Yes, we will take a Bendix magneto as a core of a Slick.

Q: Do the QAA rebuilt slick magnetos come with an FAA-8130 approval form (or similar document)?

Yes, they come with the domestic 8130.

Q: Do the impulse mags such as the 4371 come with a rebuilt/overhauled impulse coupling?

Yes, the impulse coupling is included.

Q: Is the mag harness included in the price?

No. This is the overhauled magneto only. The harness would be purchased separately.

Q: Will slick 4050 and 4051 be accepted as core for 4370 and 4371?

No, Slick will only take 4200 and 4300 series mags as cores.
