Ercoupe Metal Bowl Gascolator Conversion STC Kit

$267.95/Each
Quantity
Add to Wishlist
Part# 05-15059
MFR Model# STC SA01246CH

Overview

This kit is authorized for Ercoupe 415-C, CD, D, E, G, F-1, F-1A, A-2, A2-A and M10 Aircraft.

It is designed to be installed on aircraft with the Gascolator attached to the carburetor.

It is intended to replace aging glass bowl gascolators and metal bowl gascolators that lack a bowl quick drain.

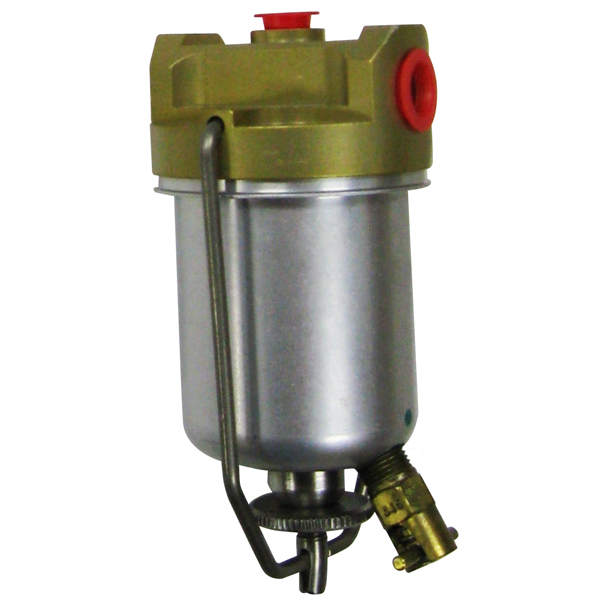

The SS13100 Gascolator is of a modern design and includes a metal bowl, standard quick drain, heavy duty bail assembly, Viton (all fuel) gasket and brass screen.

The Gascolator is sold as a standalone item, and is intended to be installed by reference to the Ercoupe Service Manual, pertinent AD's, Service Bulletins and Memorandums.

When accomplished in conjunction with an Annual / 100 Hour Inspection the additional labor requirement is approximately 1 hour.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this include everything needed or are there other components needed to be functional, ie bracket, fittings, plug, etc?

The kit comes with a metal bowl, standard quick drain, heavy duty bail assembly, Viton (All Fuel) gasket and brass screen - anything needed in addition to that would need to be sourced by the customer.
