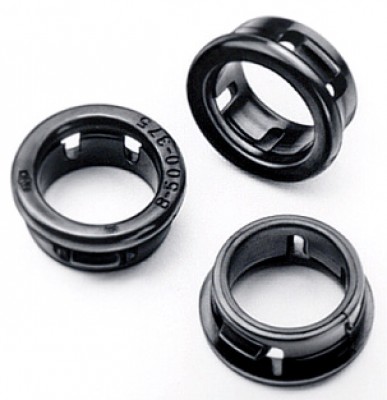

Shorty Bushing 2820

$0.15/Piece
Quantity
Add to Wishlist
Part# 04-02026
MFR Model# 2820

Overview

Material: 6/6 Nylon

Certifications:

File E15331

File LR8919

Flammability Rating: 94V-2

Material Temperature Index: 125C (257F)Max. temperature on part not to exceed 105C (221F)

  • Insulating feed-thru bushings for limited internal clearance applications.
  • Insulates and isolates electric or telecommunications cables as well as low RPM shafts and push-pull rods.
  • Locking fingers hold securely after only fingertip pressure snap-in installation.
  • Locking finger steps are designed at fractional increments to accommodate panel thicknesses less than the maxiumum.

Specifications

  • Max Thickness: .062
  • Mounting Hole Diameter: .500
  • Mfg Part No. 2820
  • Inside Diameter: .375
  • Overall Height: .250

Reviews

You set the high standards for quality thanks and thanks again

Dennis
February 15, 2019
