Electronics International TR-1-Itt Temperature Gauge

Select Package:
StandardPremium
Quantity
Add to Wishlist

Overview

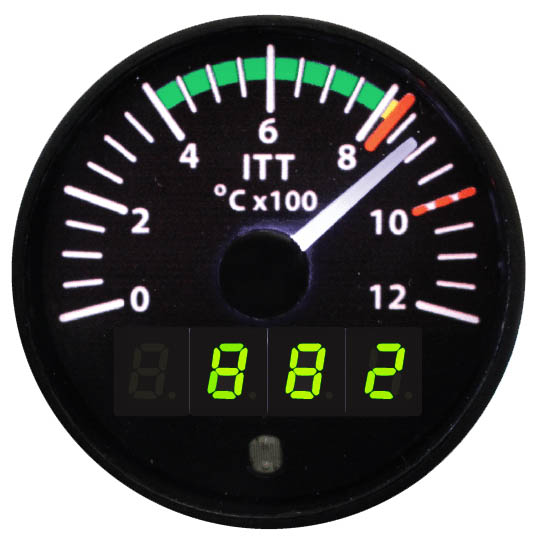

The TR-1-ITT (Inter Turbine Temperature) instrument is configured to interface with a Type-K thermocouple probe. The TR-1-ITT incorporates a map which is used to compensate for nonlinearities in the voltage vs temperature curves of the probe. This instrument has exceptional performance, reliability and features; a design driven by the 38+ years of experience.

The TR-1-ITT Instrument was designed as a replacement for existing 2″ ITT instruments. Depending on your current installation you may need to wire in aircraft power and ground. The instrument features a 210° analog arc, backlight and a dimmable, digital display. The instrument’s faceplate will be custom built to match your aircraft’s limits (red/yellow markings).

The TR-1-ITT fits into a 2″ standard round hole (MS28041-1A mount) and is 4.23″ long. It is FAA Certified to TSO: -C43c, -C44c, -C45b, -C47a, -49b, -C55a and comes with an FAA 8130-3 Airworthiness Approval Tag.
  • FAA TSO’d Replacement Instrument
  • Standard 2″ Mount
  • Reliable, Accurate & Dependable
  • Data Recording Available
  • Custom Faceplate to Match Your Limits
  • 30-Day Money-Back Guarantee

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Features

TR-1-NP RPM (Standard Pkg)
  • 1 Year Warranty
  • FAA TSO’d
  • No Risk 3-Month Money-Back Guarantee
  • 8130-3 Airworthiness Approval Tag Provided
TR-1-NP-P RPM (Premium Pkg)
  • 3 Year Warranty
  • FAA TSO’d
  • No Risk 3-Month Money-Back Guarantee
  • 8130-3 Airworthiness Approval Tag Provided
  • 1000+ hours of recording at 1 second per record.
  • Priority service on warranties and orders.
  • Free overnight shipping on warranties and orders.
  • Warranties handled by providing an exchange unit.
  • Custom-printed faceplates with your aircraft’s markings will be held in stock.
  • Replacement units will be held in stock.
  • Exchange the TR-1-TQ for an MVP-50T within one year and get full credit on your returned TR-1-TQ towards the purchase price of an MVP-50T.

Specifications

  • Size: 1.932″ Dia, 4.23″ long (Not including the connector), 2.0″ dia Bezel
  • Mount: MS28041-1A, Two Inch Round
  • Weight: 0.3 Lbs.
  • Environmental: Designed and Tested to TSO, DO-160G
  • Software: Designed and Documented to DO-178C, Level C
  • Minimum Performance Standards: TSO‐C43c, TSO‐C44c, TSO‐C45b, TSO‐C47a, TSO‐49b, and TSO‐C55a.
  • Power Requirements: 6.0 to 55 Volts, 0.075 Amps @ 28V (Typ), 0.05 Amps @ 14 Volts (Typ).
  • Communication Port: RS232
  • Display Area: Backlit for night operation. Optional Red and/or Yellow Warning Lights
  • Dimming Circuits: Electric eye and Control Voltage Input. * Analog Pointer: 210° sweep, Backlit.
  • Digital Display: 4 digits, -999 to 9999 (or -99.9 to 999.9) readings, Dimmable.
  • Data Recording: 1000 Hours at 1 second per record, accessible via RS232 Port.
