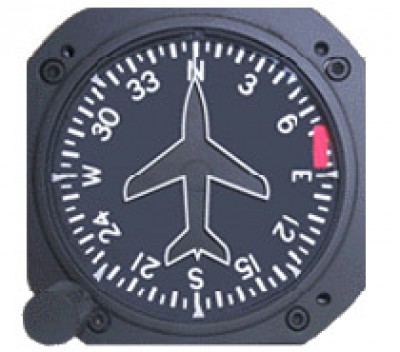

RC Allen 15Bk-1 Factory Lighted Directional Gyro Overhauled

+$1000 Core Exchange Charge
Add to Wishlist
Part# 10-05690
MFR Model# RCA15BK-1


The RCA15 Series electric directional gyro employs and electrically driven gyro motor and is a direct reading, azimuth indicator. Rotor run up time is 3 min. They have a built in inverter which converts aircraft DC power to the required AC voltage and frequency. May be used in both fixed wing and rotor wing aircraft and is easily installed in standard 3 1/8" panel cut out. Power failure flag drops into view when supply voltage is lost or has dropped below a level for proper operation of the gyro. Azimuth indication range 360. Altitude operation -1,000 to 40,000 feet. Internal 3 phase inverter prodeces high starting torque and increases gyro roto speed. Internal lighting provides even light distribution at any intensity level. calibrated to an accuracy of 3 maximum drift error after 10 minutes of 1.5 scorsby motion.

Meets of exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.
Made in the USA
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.

Electrical Requirements

  • Starting Current @ 14 VDC: 2.4A Max
  • Running Current @ 14 VDC: 1.2A
  • Starting Current @ 28 VDC:; 1.4A Max
  • Running Current @28 VDC .6A
  • Reccomended Circuit Breaker 3A


  • Length: 6.7"
  • Width; 3.4"
  • Height: 3.4"
  • Weight; 2.3 pounds
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this a 14v or 28v version? The electrical requirements list both. I would like to buy a 14v overhauled version if available.

This is the 28v version. We only have the 14v version available new. The lighted version is part # 10-01681. The non-lighted version is part # 10-01390.

Q: Is this legal for certified aircraft?

Yes, the RC Allen 15BK-1 is FAA approved for use in certificated aircraft. Please verify eligibility with your A&P in your aircraft before installing.
