RC Allen 11A Series Vacuum Directional Gyros
| Model No. | Description | Part No. | Price | Buy |
|---|---|---|---|---|

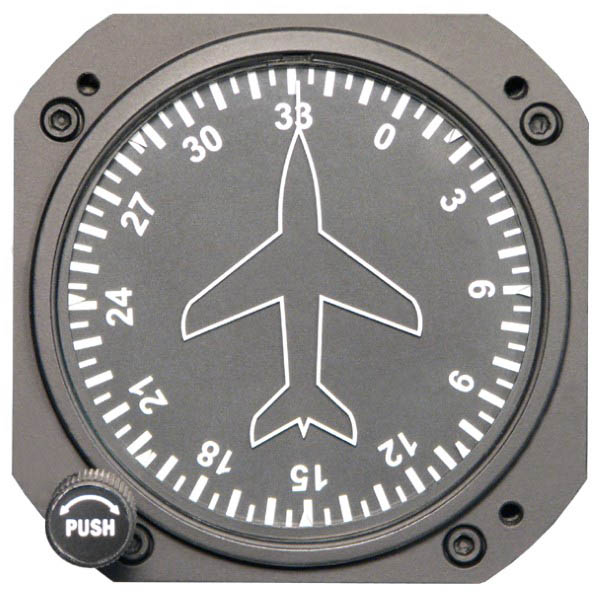

| RCA11A-8 | Standard Display | 10-01370 | $1035.00 | |

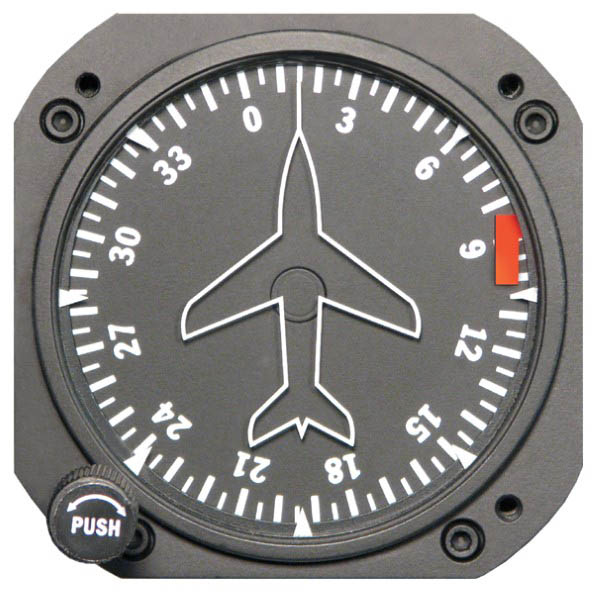

| RCA11A-8F | Standard Display with Flag | 10-01680 | $1125.00 | |
| RCA11A-15 | Cardinal Heading markers N., S., E., & W. (Piper/Cessna display) | 10-00390 | $1035.00 | |
| RCA11A-15F | Cardinal Heading markers N., S., E., & W. (Piper/Cessna display) with Flag | 10-01116 | $1150.00 | |

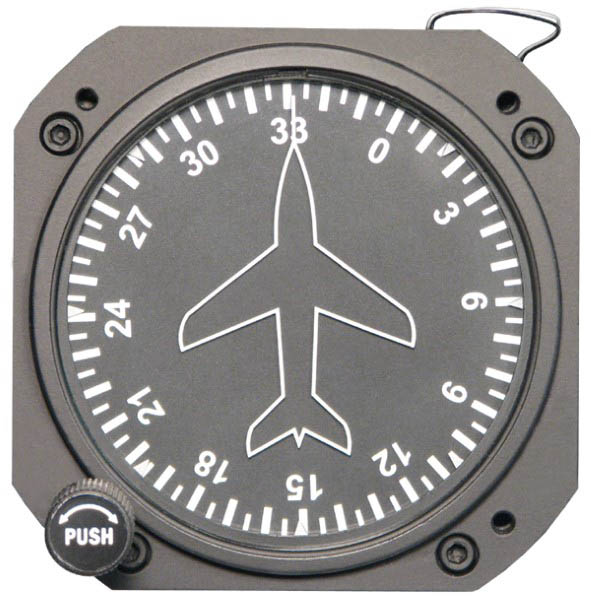

| RCA11A-16B | Standard Display Lighted, 14 Volt | 10-01369 | $1145.00 | |
| RCA11A-17B | Standard Display Lighted, 28 Volt | 10-01389 | $1125.00 |
- JUMP TO
- Overview
- Dimensions
- Reviews
- Q&A
- View in Catalog
Overview
|
The RCA-11A series of vacuum directional gyros utilize and air driven precision gyro that controls a vertical rotating azimuth gimbal. The R.C. Allen Model RCA11A has been designed to provide a long life of accurate operation even when subjected to severe operating requirements. This instrument is engineered with a minimum of machined parts, providing lower initial cost and lower maintenance cost through its lifetime. The RCA11A is non-tumbling within ±85° limits in pitch and roll and can be easily installed in any 3 1/8" panel cut out. Full freedom design allows accurate indication, even after extreme maneuvers. Stainless steel is used at wear points, with aluminum investment and die castings. A knob is provided to reset the gyro, when compared to the magnetic compass. the RCA11A-8 features the "standard" display. Meets or exceeds all requirements of FAA TSO C5c
and Aeronautical Standard AS397.
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Dimensions
- Length: 6.7"
- Height: 3.4"
- Width: 3.4"
- Weight: 2.3 Pounds
Reviews
Installed and working properly. No warranty?
Verified Purchase
RC Allen 11A-15 Vacuum Directional Gyro Cardinal Marker TSO
Verified Purchase
RC Allen 11A-8 Vacuum Directional Gyro Standard Display TSO
Product arrived on time and works great!
Verified Purchase
RC Allen 11A-8 Vacuum Directional Gyro Standard Display TSO
Could not have been better
Verified Purchase
RC Allen 11A-15 Vacuum Directional Gyro Cardinal Marker TSO
I needed it and it was available. Works great. It wasnt available from another company, quick delivery.
Verified Purchase
RC Allen 11A-15 Vacuum Directional Gyro Cardinal Marker TSO
As advertised. Prompt delivery.
exactly the right instrument
Q&A
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Heading indicators can be mounted in a vertical panel. You have to be aware of the tilt angles when it comes to attitude indicators.
No, please see the RCA11D series part number 10-02931 for heading bug.
Yes, the RC Allen 11A series is FAA Approved.
The gyros listed on this page are factory new.
A 1/4 -18 NPTF nylon tube slip fitting is recommended for vacuum hose installation. A 1/8 - 27 NPTF nylon tube slip fitting is recommended for vacuum gage installation
