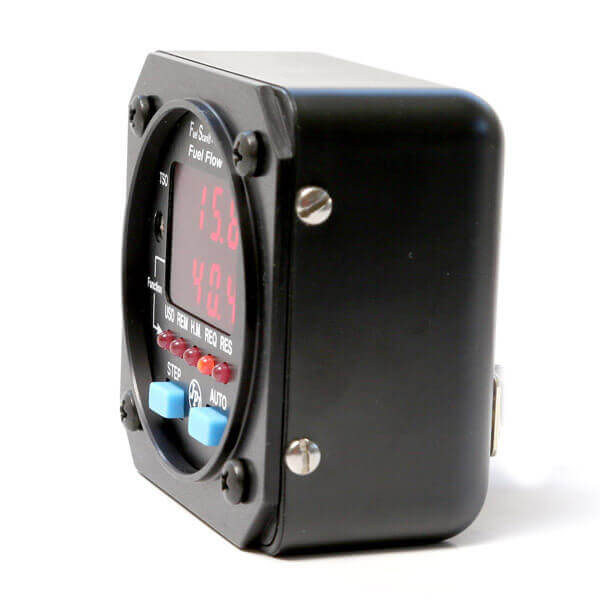

JPI Fuel Scan FS450 FAA TSO

Select Model:
Gravity Fed+ (No Fuel Pump)Fuel Pump / Fuel Injected
Quantity
Add to Wishlist

Overview

  • TSO C44b
  • Continuous display of fuel burned,in upper display in
  • Gallons per Hour. Liters and Lbs per hr also available.
  • An amazingly low price includes Instrument harness and a Flow Scan 201 or 231 transducer.
  • Upgrade your old Hoskins, or Shadin System. Will function with any K factors; connector is pin to pin compatible.
  • Automatically calculates the K factor.
  • All programming done from the front panel.
  • Size 2.25" diameter (small hole)
  • Light Weight 5 oz with Super Thin 1.5" depth
  • Three year warranty. (yes, the only three year warranty around!)

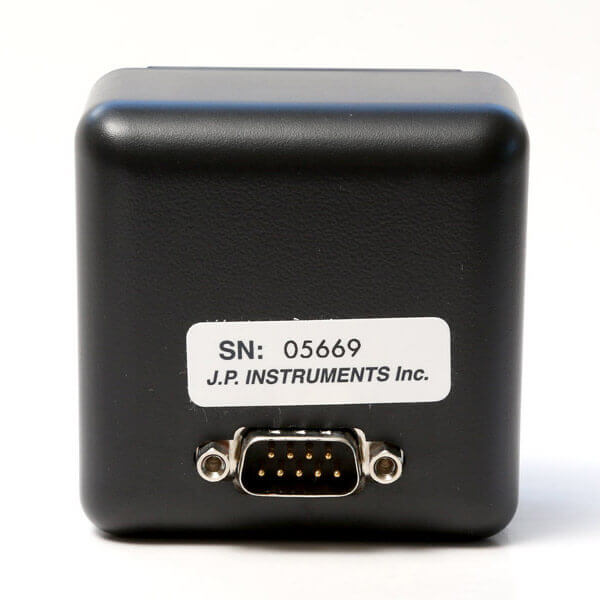

  • Serial port sends and receives data from all GPS units, even handhelds.
  • Calculates fuel to next waypoint.

Displays All These Functions:

  • Total Fuel Used
  • Fuel Remaining
  • Endurance in Hours and Minutes
  • Fuel Required to next Waypoint
  • Fuel Reserve at Next Waypoint
  • Nautical miles per Gallon

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • FS-450 Can Mate to an old Shadin or Hoskins System.
  • Gallons per hour can be changed tap litres or Lbs.

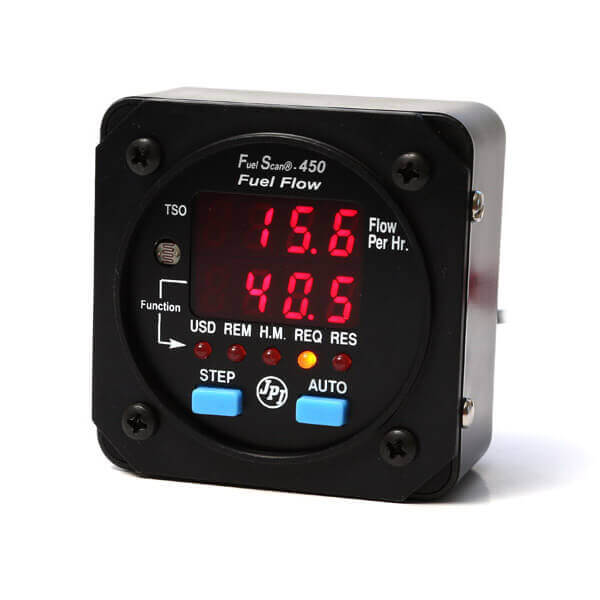

  • QUE lights indicate which function is being displayed in the lower display
  • Auto Button, starts the automatic scan of the functions. Rate can be set from 1-9
  • Continuous display of fuel burn in Gal/Lbs/Litres per hour.
  • Step button can index information forward or backward. All programing done easily from the from panel with two buttons and no switches to toggle.

In The Box

  • Indicator
  • Fire Sleeve
  • Harness
  • Transducer
  • Pilots Guide
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Display on my FS450 was erratic, sometime shutting off in flight despite good wiring and volt supply . Just ordered this brand new one to avoid workshop trouble shooting on a 15 years old display . Plug and play OK . Hope this display lasts at least 15 years. I appreciate FS 450 accuracy . A real need in managing and monitoring fuel on my IO550 V35.

Jean F Verified Purchase

JPI FS 450 FUEL INJECTED ENGINE WITH FUEL PUMP

January 22, 2024

Purchased an additional $300 in parts, installed in about 7 hours with 2 people. Works as it it should. I have not had it installed long enough to test accuracy . I’m very happy with the FS 450 and it sure makes you lean it out!

Scott P Verified Purchase

JPI FS 450 FUEL INJECTED ENGINE WITH FUEL PUMP

December 5, 2023

Awesome unit and aircraft spruce had it to me in two days. Great experience. Thanks.

Frank H Verified Purchase

JPI FS 450 GRAVITY FED +

August 29, 2023

Fast and easy to buy online with Aircraft Spruce. The Alaska store needs more staffing to be more efficient. They are always pleasant but they are slammed.

Theo P Verified Purchase

JPI FS 450 GRAVITY FED +

March 7, 2023

Michael D Verified Purchase

JPI FS 450 GRAVITY FED +

December 14, 2022

As of today I have not been able to get the FS-450 to work. After the install and it didnt work I contacted tech support who made me feel like I was some kind of ignorant moron. There suggestion was to blow through the transducer to see if the pulse wheel was spinning which it was. So what now? Well you can call the RMA department and get an RMA to send it back to be bench tested, DUH! After 15 emails back and forth with JPI RMA department I finally got the RMA and sent the transducer back. Im currently waiting a reply. Needless to say Im not impressed with JPI, especially Tech Support, and will not be doing business with them again.

Richard Verified Purchase

JPI FS 450 GRAVITY FED +

June 3, 2022

Works like a charm. Accurate and reliable. A&P quoted 8 hrs for the install and paperwork. YMMV.

Stefan D Verified Purchase

JPI FS 450 FUEL INJECTED ENGINE WITH FUEL PUMP

May 28, 2022

Great unit easy to install, all the information you need to manage fuel onboard.

Aerospace E Verified Purchase

JPI FS 450 FUEL INJECTED ENGINE WITH FUEL PUMP

January 30, 2022

Works perfectly

David J Verified Purchase

JPI FS 450 FUEL INJECTED ENGINE WITH FUEL PUMP

October 5, 2021

I ordered this product to replace the same unit that failed after 14 years of excellent reliability. Straight forward to use and far better than unreliable tank gauges

Charlie O Verified Purchase

JPI FS 450 FUEL INJECTED ENGINE WITH FUEL PUMP

July 31, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the JPI FS 450 GRAVITY FED (P/N: 10-00134) come with a FAA FORM 8130-3?

No, these do not come standard with an 8130-3 form. These must be requested at the time of order.

Q: Does the JPI FS 450 unit include the transducer?

Yes it does as you have to select gravity fed (231) or fuel pump (201) system.

Q: I just purchased a 1966 Piper PA28-235 with no current fuel computer system installed. What else do I need to order with the JPI FS 450 for my mechanic to install the system?

Please note that the FS 450 cannot be used as a primary fuel flow in your panel (in can be used for secondary). The JPI FS 450 comes with all the parts to install the FS 450 but other parts like tubing and connections from your fuel system need to be ordered separate. We recommend you and your mechanic review the manual on our documents tab before ordering to make sure the install is efficient.

Q: I just purchased a 1966 Piper PA28-235 with no current fuel computer system installed. What else do I need to order with the JPI FS 450 for my mechanic to install the system?

Please note that the FS 450 cannot be used as a primary fuel flow in your panel (in can be used for secondary). The JPI FS 450 comes with all the parts to install the FS 450 but other parts like tubing and connections from your fuel system need to be ordered separate. We recommend you and your mechanic review the manual on our documents tab before ordering to make sure the install is efficient.

Q: What is included with the J.P. Instruments Fuel Scan FS450? Is it compatible with a Cessna 182R?

Items included are the indicator, fire sleeve, harness, transducer and pilots guide. If you want to use it with your Cessna, you will need to use the gravity fed version (10-00134).

Q: I have a Cherokee 180 and wanted to add this to augment my fuel gauges. Can I install the FS450?

The manual describes the procedure for installing the Fuel Scan FS450 as a secondary gauge including the necessary placards you must include with the installation of the gauge.

Q: Which J.P. Instruments Fuel Scan FS 450 would work on a Cessna 150M?

For a Gravity Fed Fuel aircraft such as the Cessna 150 series you would need part number 10-00134.

Q: Does the FS450G have the flow labelled in Gal/Hr on the gauge, or is the label units/hr?

The JPI Fuel Scan FS450 is programmable to either gallons, pounds or liters.

Q: I have the EI Red Cube transducer fitted. Is that compatible with the JPI FS 450?

The recommended transducers are listed for the FS450 in the installation manual by JPI. Using another manufacturer’s transducer is not recommended or tested.

Q: Is there a wiring harness available for the FS 450 transducer to indicator?

For the fuel scan FS450, part numbers 10-00135 and 10-00134, the harness is included with the instrument.
