|Manifold pressure is one factor used to obtain correct power setting of the engine. The indicators are temp. and altitude compensated. Matte-white dials. 2-1/4" units are 10-35 Hg.|
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Easy to install and works great. The instructions are a little hard to follow. Suffice it to say that this unit assumes the ambient temperature is 75 degrees and will display a cht that starts there. So, if the ambient temp is less than 75 degrees the unit is assuming its hotter than it really is. So, you subtract one degree for each degree below 75. If its hotter than 75, the unit assumes its cooler than reality, so you add one degree for each ambient degree above 75.

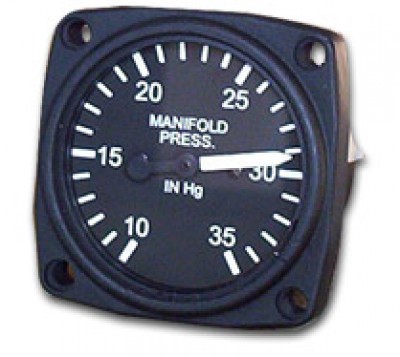

UMA 2-1/4" MECHANICAL MANIFOLD PRESS 10 - 35 IN HG NON TSO
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The round face is 2.25" in diameter.
Part number 10-11250 is UMA part number 7-100-20.
No, the UMA manifold pressure gauge (10-11250) is intended for use with experimental aircraft only.
UMA Instruments is the manufacturer of this gage.
This will require an 1/8 inch fitting.
