THERMOCOUPLES-UNIVERSAL REPLACEMENT PROBES

From $66.85 to $478.00
Description Part Number Price Buy

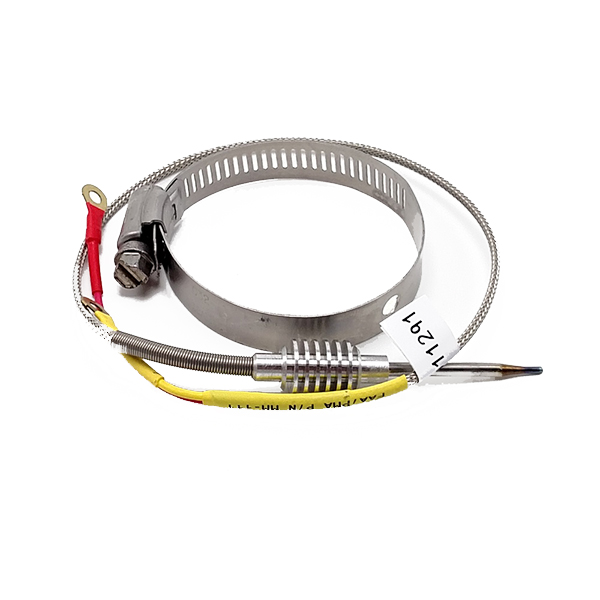

EGT PROBE TYPE K, MM-111
11-01022
$66.85
Quantity
THERMO. BAYONET TYPE AN5541-1
AN5541-1
$72.75
Quantity
CHT PROBE, TYPE K
11-01023
$66.95
Quantity
CESSNA PROBE CHT S2334-3
MUST BE USED WITH THE NEW ROCHESTER GAUGES. CANNOT BE USED WITH OLD STEWART WARNER GAUGES.
06-00703
$478.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

EGT Probe, Type K, Style 86255
P/N 11-01022

CHT Probe, Type J, Style AN5541-1
P/N AN5541-1

CHT Probe, Type K
P/N 11-01023

Cessna CHT Probe
P/N 06-00703

Note: These probes will only work with a grounded system.

Order Instruction

Before making any purchase on any thermocouple products, please provide the following information listed below to our Order Department:

1. The type of thermocouple - type J, type K, type T, etc.
2. The length of the thermocouple cable.
3. The thermocouple housing or mounting (bayonet, 1/8" NPT, etc.)
4. The length of the thermocouple probe
5. The electrical termination (bare wire, #8 ring connector, etc.)

For further assistance, please call us at 1-800-861-3192 or
email our by clicking here.

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Great product. the order was processed quickly

Richard M Verified Purchase

EGT PROBE TYPE K, MM-111

July 13, 2021

Good but to short for my Project and i must return

David C Verified Purchase

CHT PROBE, TYPE K

June 26, 2021

Probe fit as a direct replacement and was easier to install in a P32T. The red and yellow leads would be better with opposing lengths, but just folded the red and covered with existing sleeve. Probe is more sensitive, which allowed a more accurate setting during run up.

Johnny H Verified Purchase

EGT PROBE TYPE K, MM-111

June 19, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I use P/N AN5541-1 with P/N 10-00374? Thank you!

Yes, the AN5541-1 will fit into the 10-00374 CHT adapter.

Q: Will EGT probe # 11-01022 work on Insight GEM?

Yes, the Insight Gem uses a type K grounded probe.

Q: What size is the clamp on probe # 11-01022?

The clamp included is 1.56"-2.5". A 3.5" clamp can be ordered separately.

Q: How long are the wires on 11-01023 CHT probe? If I need longer what kind of wire should I use?

The wires are about 1ft long. To extend the leads, you will need type k thermocouple wire.
