CORBY STARLET CJ-1

From $464.07 to $1306.21

Description	Part Number	Price	Buy
CORBY STARLET SPRUCE KIT Click Here for Kit Components	02-04300	$1227.99	Quantity
CORBY STARLET 2PC SPAR KIT	02-09000	$464.07	Quantity
CORBY STARLET PLYWOOD KIT Click Here for Kit Components	01-00381	$1306.21	Quantity

Subtotal $0.00

Add to Wishlist

Overview

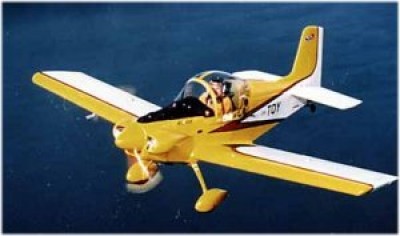

The Corby Starlet is an all wood, ply and fabric covered, single seat, low wing cantelever monoplane. It is stressed for sportsmen aerobatics at 4.5g. The design has established a reputation for excellent performance for its horsepower and capability being both cross country plane and an excellent aerobatic platform.

For more information contact:

CSN
1335 Robinhood Lane S.
Lakeland, FL 33813
Email: CorbyStarlet@gmail.com
Phone: (863) 644-8426

Specifications

Kit Price Without Engine: N/A
Plans Price: $325
Number of Seats: 1
Building Materials: W, F
Building Time: ~1400 Hours
Standard Engine: VW 1600CC-2100CC
Horsepower: 50-70
Wing Span: 18.6'
Wing Area: 68.5 sq ft
Empty Weight: 425 lbs
Gross Weight: 750 lbs
Takeoff Distance: 300'
Landing Distance: 750'
Cruise Speed: 123 mph
Top Speed: 160 mph
Fuel Capacity: 11 Gallons
Range: N/A

Customers Also Viewed
Frequently Purchased With
Accessories

Question About:	Corby Starlet Cj-1
Email:
Your Name:
Question:
	Submit

Review Product:	Corby Starlet Cj-1
Email:
Your Name:
Rating:
Comments:
	Submit

Component	Quantity	Price
02-19880DOM MAHOG PLYWOOD 5/16X4X8 90*	0.5	$314.00
02-20300FINNISH BIRCH 48"X48" X 0.8MM	3	$37.50
02-20400FINNISH BIRCH 48"X48" X 1.5MM	9	$44.50
02-20500FINNISH BIRCH 48"X48" X 2.5MM	1	$72.75
02-20600FINNISH BIRCH 48"X48" X 3MM	0.5	$77.95
02-21080ROY MARINE PLYWOOD 4X81/4	0.25	$113.75
02-28050FINNISH BIRCH 2MM X 48 X 48	7	$57.75
02-50000FINNISH BIRCH 48"X48" X 1.0MM	2	$45.90

Component	Quantity	Price
02-11SPRUCE CAPSTRIP 1" X 1"	1	$4.00
02-1112CAPSTRIP 1" X 1-1/2	1	$4.75
02-11300CAPSTRIP 1/4" X 1/4"	120	$0.33
02-12000CAPSTRIP 1/2" X 1/2"	60	$1.12
02-121CAPSTRIP 1/2" X 1"	10	$2.05
02-12114CAPSTRIP 1/2" X 1-1/4"	7	$2.70
02-12212CAPSTRIP 1/2" X 2-1/2"	9	$5.25
02-12234SPRUCE 1/2 X NOM 2-3/4	3	$7.50
02-123SPRUCE 1/2 X NOM 3	1	$7.50
02-14314SPRUCE 1/4 X NOM 3-1/4	10	$3.80
02-14334SPRUCE 1/4 X NOM 3-3/4	11	$3.80
02-14516CAPSTRIP 1/4" X 5/16"	90	$0.37
02-212514SPRUCE 2-1/2" X NON 5-1/4"	2	$32.16
02-34212CAPSTRIP 3/4" X 2-1/2"	7	$5.75
02-34314SPRUCE 3/4 X NOM 3-1/4	14	$7.50
02-3434CAPSTRIP 3/4" X 3/4"	75	$1.95
02-38112CAPSTRIP 3/8" X 1-1/2"	9	$2.95
02-3812CAPSTRIP 3/8" X 1/2"	60	$0.98
02-3834CAPSTRIP 3/8" X 3/4"	75	$1.48
02-51612CAPSTRIP 5/16" X 1/2"	3	$0.81
02-51634CAPSTRIP 5/16" X 3/4"	30	$0.90
02-516516CAPSTRIP 5/16" X 5/16"	180	$0.42
02-583SPRUCE 5/8 X NOM 3	2	$7.50
