| Description | PN | Price | Buy |
|---|---|---|---|
| LONGEZ WOOD KIT Click Here for Kit Components | 01-00500 | $271.57 | |
| LONGEZ HARDWARE KIT Click Here for Kit Components | 01-00900 | $306.15 | |
| LONGEZ PLUMBING & CONDUITS KIT Click Here for Kit Components | 01-01100 | $72.95 | |
| LONGEZ MISCELLANEOUS ITEMS KIT Click Here for Kit Components | 01-01200 | $1326.21 | |
| LONG EZ DECAL WHITE | 09-43791 | $10.95 | |
| LONG-EZ EXHAUST SYSTEM 33804 | 08-00832 | $1268.00 | |
| LONG-EZ EXHAUST SYSTEM 33804-1 W/O HEAT EXCHANGER | 08-00833 | $1560.00 | |
| LONG-EZ HANDLE | 01-00770 | $18.40 | |
| LONG-EZ HANDLE | 01-00771 | $11.30 | |
| LONG -E-Z LEFT CONTROL ARM | 01-00780 | $35.75 | |
| LONG -E-Z RIGHT CONTROL ARM | 01-00781 | $35.75 | |
| LONG-EZ STEEL BUSHING | 01-00782 | $1.82 | |
| LONG-EZ BELLCRANK ASSY | 01-00783 | $48.40 | |
| LONG-EZ BRACKET | 01-00785 | $5.45 | |
| VARI-EZE 3/8" Universal Joint | 01-00786 | $49.50 | |
| LONG-EZ BEARING | 01-00787 | $6.05 | |
| LONG-EZ ALUMINUM BUSHINGS | 01-00789 | $1.80 | |
| LONG-EZ LL-4 SPACER | 01-00798 | $3.00 | |
| LONG-EZ REPL. O-RING LST-7 | 01-00804 | $3.90 | |
| LONG-EZ NG9 INSERT | 01-00809 | $10.45 | |
| LONG-EZ LB6 SPACER | 01-00815 | $3.90 | |
| LONG-EZ LB-16 SPACER | 01-00817 | $5.75 | |
| LONG-EZ LB18 BRACKET | 01-00818 | $4.95 | |
| LONG-EZ LB21 ROD | 01-00819 | $11.40 | |
| LONG-EZ NOSEGEAR MOUNTNG PLATE | 01-00838 | $8.40 | |
| AZUSA TIRE 280/250 x 4 4PLY | 06-01287 | $12.50 | |
| AZUSA TUBE 280/250 X 4 | 06-01288 | $7.50 | |
| TIRE 11x4.00-5 6 PLY | 06-02952 | $31.70 | |
| ULTRALIGHT & EXPERIMENTAL 11-400 X 5 8PLY 7046-8 | 06-01573 | $34.80 |
Overview
|

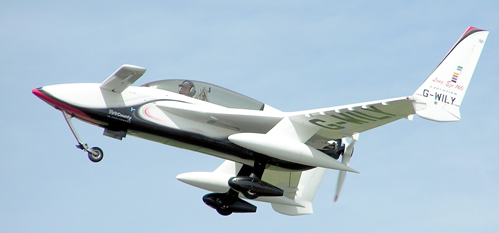

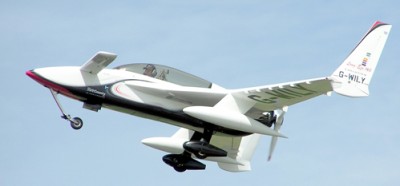

The Long-EZ designed by Burt Rutan, is a homebuilt aircraft derived from the VariEze. Changes from the VariEze include a larger main wing with modified Eppler 1230 airfoil and less sweep, larger strakes containing more fuel and baggage storage, slightly wider cabin, and the ability to use a Lycoming 108 hp engine with no nose ballast. The aircraft is designed for fuel-efficient long-range flight and can fly for over ten hours and up to 1,600 miles (2,500 kilometers) on 52 gallons (200 liters) of fuel. The pilot sits in a semi-reclined seat and controls the Long-EZ by means of a side-stick controller situated on the right-hand console. In addition to having an airbrake on the underside, the twin tail’s wingtip rudders can be deflected outwards to act as auxiliary airbrakes. The aircraft will not stall in the manner of a conventional aircraft since, if the Long-EZ reaches too low a speed, the front (canard) wing will stall and lower the aircraft nose until speed is regained. |
Builders Forum
Specifications
- Kit Price Without Engine: ~$30,000
- Plans Price: N/A
- Number of Seats: 1
- Building Materials: N/A
- Building Time: N/A
- Standard Engine: Lycoming O-235 115HP
- Horsepower: 115
- Wing Span: 26.1'
- Wing Aera: 81.99 sq ft
- Empty Weight: 710 lbs
- Gross Weight: 1325 lbs
- Takeoff Distance: N/A
- Landing Distance: 1200'
- Cruise Speed: 144 mph
- Top Speed: 185 mph
- Fuel Capacity: 52 Gallons
- Range: 2010 miles
Reviews
Excellent
Verified Purchase
TIRE 11x4.00-5 6 PLY
Had to make a little extra clearance on my Lancair due to the slightly larger diameter over the 6 ply version. Be aware as it would have caused the wheels to jam up on retraction.
Verified Purchase
ULTRALIGHT & EXPERIMENTAL 11-400 X 5 8PLY 7046-8
Arrived on time. Good product and price. Long-EZ front tire now holding air again.
Hola me podrian comunicar el costo de los planos para construir el avion long ez
Built, own and fly one. Builders usually use the Lycoming 320 engine for improved performance. Baggage pods help for distance travel with a passenger. Supreme economy and speed for the money. Typical 160 Kts True at 7.5gal/hour actual and common numbers.
This manufacturer seems to be the only one that makes this size tire. It’s for my RV-7A nose wheel I have had 3 flats in 8 years, all at away airports. I don’t know if it’s just bad luck, poor tube, or what. My solution is now to always carry a fully assembled, pressurized spare wheel assembly. That’s what this one is for.
Verified Purchase
TIRE 11x4.00-5 6 PLY
For another .50 you could have provided pictures so we know what we are buying. Your part numbers are nondescript.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We do not carry they Long EZ plans as they are no longer printed. The best bet to find them is to check the Aircraft Spruce Builder Forums or Trade-A-Plane for anyone selling their plans.
We do not market these products specifically for the Long EZ but we have a large selection of composite materials that are commonly used on Long EZs.
