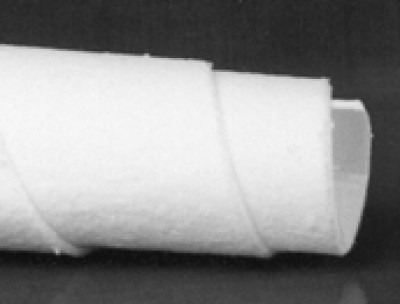

|A new material made from washed ceramic fibers with binders added to form a lightweight, flexible asbestos-free insulation. Withstands temperatures to 2300 F. Excellent for aircraft firewalls. Available in 24" wide. Sold by the foot.|
perfect replacement for the 3 layers fiberfrax under the stainless firewall of my Lancair 360. this is the exact same product. gloves and paint mask mandatory!!!
FIBERFRAX 970J PAPER 1/8 x 24W
Working on an auto ejection of bat cells for ballistic chute weight reduction and IN HOUSE Aircraft recovery w/supplies... FUN!
Great Product, Fantastic customer service as always.
Perfect product for what I had to used for.
Exactly what I needed for furnace heat exchanger reassembly.
The thermal conductivity is specified as 0.58 BTU/in/hr/sf/F at 1000F. It is listed as 10 PCF density. I couldn’t tell you what the thermal conductivity is at other densities, but that’s the value I found digging. I use this stuff and other related stuff on a 3D printer that I use with polycarbonate filament. Roughly speaking that’s 5600 BTU/hr per square foot with 1/8” thick with a 1350F EGT and 150F ambient. One way to deal with the fragility is to cut curved panels designed to follow the contours of pipes with bends, meeting with other pieces and wrap two or more non overlapping layers with scraps of copper wire until you’re ready cover it and lace it with stainless wire or whatever you were thinking. It’s good to higher temperatures than your exhaust will ever see (melts at 2150 I think).
Cannot check the technicall properties, however, its easy to cutt with scissor and I bonded with 3m fire barrier. Worked great for my needs at the firewall. Searched on the web and call the factory to know which side, but its only part of the manufacturing process, so any side is the same. I used the cloth style on view.
This is a great material for heat proofing a cowl that is close to the exhaust system. I put some on a Super Decathlon and a PA28R-201. No worries about the paint bubbling again. I used 3M 1300L Scotchgrip to attach the Fiberfrax material then spray painted it silver and sealed the edges with silicone sealant. The paint helps reflect the radiant heat and keeps the material from absorbing oil or fuel. Try it, you'll like it.
Application is for insulation on an engine cowl. This material is essentially a fiber mat with no reinforcement. You can’t bond this to fiberglass or aluminum foil as the mat simply falls off. I’ll be using a woven insulation fabric blanket supplied with an aluminum foil facing.
I didnt test thiis for fire resistance so I cannot rate that aspect of Fiberfrax. However, Im writing this to advise potential buyers of two characteristics. Fiberfrax will tear easier than a sheet of paper and wont tolerate working around on into tight spaces. Secondly the patterns are different from one side to the other. This is only a problem when trying to efficienly utilize the material. Because ACS fails to provide a detailed description of most of their products the only way one would know such things is to waste $50 such as I did or hope someone has provided details in a review.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per supplier: P/N# 05-02678 is .051 to .0623 lbs/sq ft. P/N# 05-02679 is .105 to .140 lbs/sq ft.
You could use PLIOBOND 25 LV, it is CA compliant.
Yes, that is one of its intended uses.
This material is 24 inches wide and sold by the linear foot(LF).
Yes the 970 F Paper can be painted.
We do not have FAA certs for this product.
