Photo may represent series and not specific product

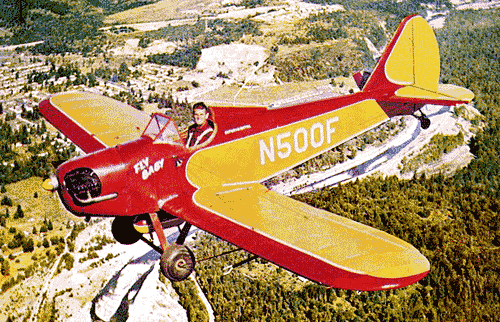

Fly Baby

1 Review 1 Answered Question

From $1558.54 to $5360.90

Description	Part Number	Price	Buy
Flybaby Spruce Kit Click Here for Kit Components	01-00977	$5360.90	Quantity
Flybaby Plywood Kit Click Here for Kit Components	01-00974	$2332.12	Quantity
Flybaby Metals Kit Click Here for Kit Components	01-00976	$1558.54	Quantity
Flybaby Hardware Kit Click Here for Kit Components	01-00975	$3704.41	Quantity

Subtotal $0.00

Add to Wishlist

JUMP TO

JUMP TO
Overview
Specifications
Reviews
Q&A

Overview

This plane is a structurally simple and easy-to-fly airplane designed to the requirements of the Experimental Aircraft Association for home construction and storage in a space 7’ x 8’ x 20’, which is equivalent to the standard home garage. Great emphasis has been placed upon safe flight characteristics and good low-speed performance for takeoff and landing at some sacrifice of high speed.

The structure has been designed for standard airplane engines from 65 to 85 horsepower and the aerodynamic features are of sizes and proportions suited to obtaining the best all-around performance in this power range. Because of this, there is not enough advantage to be gained from using engines of significantly higher power to offset the cost and weight penalties. Increasing the power to increase the aerobatic capability is not recommended. The plane can be built both as a biplane and as a monoplane.

Complete instructions for building the Fly Baby can be found in EAA Sport Aviation magazine, January 1963 through September 1964. EAA members may download these articles free through the EAA Archive web page. For more information, see https://www.bowersflybaby.com


	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Number of Seats: 1
Building Materials: Wood and fabric
Building Time: ~1200 Hours
Standard Engine: Continental A-65
Horsepower: 65-100 hp
Wing Span: 28'
Wing Area: 120 sq ft
Empty Weight: 605 lbs
Gross Weight: 925 lbs
Takeoff Distance: 350'
Landing Distance: 420'
Cruise Speed: 95 mph
Top Speed: 120 mph
Fuel Capacity: 16 Gallons
Range: 320 miles

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Walt

September 20, 2015

Q&A

Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this kit for biplane or monoplane

Monoplane. We have updated the photo.

Question About:	Fly Baby
Email:
Your Name:
Question:

	Submit

Review Product:	Fly Baby
Email:
Your Name:
Rating:
Comments:

	Submit

Component	Quantity	Price
02-19210Domestic Mahogony Plywood 1/8X4X4 45*	1	$156.00
02-19280Domestic Mahogony Plywood 1/8X4X8 45*	0.5	$312.00
02-19380Domestic Mahogony Plywood 1/8X4X8 90*	7	$218.95
02-21080Roy Marine Plywood 4X81/4	1	$154.75
02-21160Roy Marine Plywood 4X4 3/8	1	$106.75
02-21180Roy Marine Plywood 4X8X3/8	0.5	$212.95
02-21440Roy Marine Plywood 2X4 3/4	1	$59.75
02-21480Roy Marine Plywood 4X8X3/4	0.25	$239.00

Component	Quantity	Price
05-03295Zinc Sleeve 28-3-M MS51844-24	60	$0.77
AN100C-4Stainless Steel Cable Thimbles AN100C-4	60	$0.50
AN155-16STurnbuckle Barrel AN155-16S	40	$13.75
AN155-80LTurnbuckle Barrel AN155-80L	1	$38.50
AN161-16RSTurnbuckle Fork AN161-16Rs	40	$18.60
AN161-80LLTurnbuckle Fork AN161-80Ll	1	$78.90
AN161-80RLTurnbuckle Fork AN161-80Rl	1	$82.90
AN170-16LSCable Eye AN170-16Ls	40	$18.85
AN301-20-5	0.5
AN310-3Nut, Castle AN310-3	10	$1.84
AN310-4Nut, Castle AN310-4	10	$1.89
AN310-6Nut, Castle AN310-6	20	$2.50
AN3-10ABolt Undrilled AN3-10A	20	$0.71
AN3-12ABolt Undrilled AN3-12A	70	$0.39
AN3-13ABolt Undrilled AN3-13A	25	$0.32
AN3-14ABolt Undrilled AN3-14A	25	$0.34
AN3-22ABolt Undrilled AN3-22A	25	$0.60
AN3-23AN Bolt Drilled AN3-23	5	$0.95
AN3-23ABolt Undrilled AN3-23A	20	$0.58
AN3-26ABolt Undrilled AN3-26A	10	$0.79
AN3-30ABolt Undrilled AN3-30A	10	$0.64
AN3-54AAN Bolt AN3-54A	8	$22.50
AN3-5ABolt Undrilled AN3-5A	2	$0.36
AN365-1032AMS21044N3 Elastic Stop Nut	150	$0.18
AN365-428AMS21044N4 Elastic Stop Nut	50	$0.19
AN365-524AMS21044N5 Nut, Elastic Stop	10	$0.34
AN365-624ANut, Elastic Stop MS21044N6	20	$0.39
AN366F-832AElastic Insert MS21078-08	75	$9.70
AN3-7ABolt Undrilled AN3-7A	2	$0.35
AN393-11Clevis Pin MS20392-2C11	12	$0.77
AN393-7Clevis Pin MS20392-2C7	25	$0.51
AN394-81Clevis Pin AN394-81 MS20392-3C81	10	$3.80
AN396-19Clevis Pin AN396-19	2	$2.53
AN4-14ABolt Undrilled AN4-14A	50	$0.44
AN416-1Cowling Safety Pin AA55488-1	2	$0.32
AN4-35Bolt Drilled AN4-35	2	$1.35
AN4-40Bolt Drilled AN4-40	4	$1.81
AN4-6ABolt Undrilled AN4-6A	10	$0.31
AN5-13ABolt Undrilled AN5-13A	6	$0.66
AN5-26ABolt Undrilled AN5-26A	2	$0.96
AN6-14ABolt Undrilled AN6-14A	20	$1.42
AN6-16Bolt Drilled AN6-16	7	$2.10
AN8-24Bolt Drilled AN8-24	4	$7.90
AN960-10Washer, Flat AN960-10	200	$0.08
AN960-10LWasher, Flat AN960-10L	25	$0.04
AN970-3Washer, Flat AN970-3	100	$0.15
MS24665-132Cotter Pin AN380-2-2	50	$0.13
MS24665-283Cotter Pin AN380-3-3	20	$0.18

Component	Quantity	Price
03-00300-24130 Steel Tube 1/4X.035 - 2 Foot	1	$10.70
03-024004130 Steel Tube 1/2" X .035	19	$4.80
03-02900-24130 Steel Tube 1/2X.120 - 2 Foot	1	$19.00
03-03600-34130 Steel Tube 5/8X.035 - 3 Foot	8	$17.25
03-06400-34130 Steel Tube 1X.065 - 3 Foot	1	$13.35
03-06500-14130 Steel Tube 1X.095 - 1 Foot	1	$7.65
03-07900-14130 Steel Tube 1-1/4X.095 - 1 Foot	1	$6.60
03-17800-3Brass Tube 1/2X3/8X.065 - 3 Foot	1	$31.65
03-18600-64130 Strip 3/4 X 72 X .063	0.5	$4.45
03-19000-64130 Strip 2 X 72 X .063	0.5	$13.50
03-225104130 Sheet .032 6 X 12	3	$4.40
03-235004130 Steel Sheet 9 X 18 X .063	3	$15.55
03-255004130 Sheet 18 X 18 X .125	3	$74.90
03-256604130 Steel Sheet 9 X 9 X .190	1	$25.50
03-279102024T3 Aluminum Sheet .025 4X12	0.67	$251.95
03-279202024T3 Aluminum Sheet .025 4X8	1	$168.85
03-308502024T3 Leading Edge 18X144X016	7	$78.75
03-36700-16061T6 Aluminum Tubing 1X.058 - 1 Foot	2	$5.35
03-404003003-0 Tube 1/4 OD X .032 W	16	$1.36

Fly Baby

Overview

Specifications

Reviews

Q&A

01-00974Flybaby Plywood Kit

01-00975Flybaby Hardware Kit

01-00976Flybaby Metals Kit

01-00977Flybaby Spruce Kit

Component	Quantity	Price
02-11300Capstrip 1/4" X 1/4"	120	$0.56
02-11700Capstrip 1/4" X 1/2"	160	$0.84
02-12000Capstrip 1/2" X 1/2"	36	$1.79
02-122Capstrip 1/2" X 2"	1	$7.50
02-12551	13.2
02-141Capstrip 1/4" X 1"	42	$1.45
02-1438Capstrip 1/4" X 3/8"	104	$0.66
02-145Spruce 1/4 X Nominal 5	48	$15.70
02-14800Capstrip 1/2" X 3/4"	30	$2.58
02-18000Triangular Corner Blocking 1/2"	75	$1.75
02-18212Capstrip 1/8" X 2-1/2"	264	$3.70
02-1858Capstrip 1/8" X 5/8"	210	$0.92
02-34112Capstrip 3/4" X 1-1/2"	2	$5.99
02-3434Capstrip 3/4" X 3/4"	60	$3.35
02-34412Spruce 3/4" X Nominal 4-1/2"	26	$26.60
02-345Spruce 3/4 X Nominal 5	10	$32.50
02-346Spruce 3/4 X Nominal 6	26	$36.50
02-382Capstrip 3/8" X 2"	1	$5.75
02-383Spruce 3/8 X Nominal 3	1	$21.50
02-3834Capstrip 3/8" X 3/4"	14	$2.37
02-3838Capstrip 3/8" X 3/8"	42	$1.16
02-3858Capstrip 3/8" X 5/8"	36	$1.97
