One Design

From $14.50 to $6659.92
Category Description Part Number Price Buy
Info PackOne Design Info Pack
01-06005
Free
Quantity
PlansOne Design Plans (w/ ID Plate)
01-06010-C
$376.95
Quantity
PlansOne Design ID Plate
01-06010-ID
$14.50
Quantity
Kits
Click Here for Kit Components
Aileron Kit
01-02305
$560.44
Quantity
Kits
Click Here for Kit Components
Engine Mount Kit
01-02310
$115.15
Quantity
Kits
Click Here for Kit Components
Elevator-Stabilizer Kit
01-02315
$383.36
Quantity
Kits
Click Here for Kit Components
Fin & Rudder Kit
01-02320
$212.39
Quantity
Kits
Click Here for Kit Components
Fueslage Kit
01-02325
$1476.92
Quantity
Kits
Click Here for Kit Components
Wing Ribs Kit
01-02330
$478.89
Quantity
Kits
Click Here for Kit Components
Wing Spar & Skin Kit
01-02335
$6659.92
Quantity
Pre-fab PartsOne Design Poplar 3/4x3-1/2x9
01-02327
$22.50
Quantity
Pre-fab PartsOne Design Poplar 3/4x1-3/4x13
01-02328
$32.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

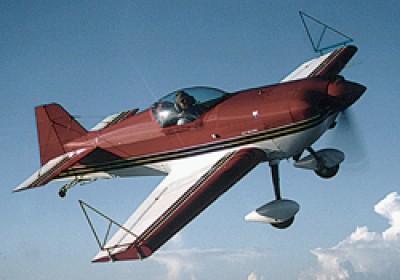

We offer a complete set of plans for the single seat aerobatic aircraft known as the One Design. Created by Dan Rihn as an economical answer for pilots wishing to fly Basic through Advanced aerobatics, the One Design features quick, easy construction and excellent performance. Wings for the One Design are all wood, the fuselage is steel truss, covered with aluminum sheet from the firewall to the rear of the cockpit. The turtle deck is also aluminum and the lower half of the aft fuselage is fabric covered. The tail is fabric covered. A one piece aluminum spring gear is used for the main wheels and a steerable tailwheel is used. Power for the One Design is obtained from a 0-360 and modified with an inverted oil system, high compression cylinders and fuel injection. Stressed for +/- 10 Gs, the One Design has a max. level speed of 184 mph, and cruises with a 75% power setting at 160 mph.

Note: Complete construction drawings required to build the One Design aircraft from scratch or using pre-fabricated components. A signed License Agreement is required from the builder prior to shipment of plans. Include completed License Agreement with your payment.

Download the License Agreements in PDF.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Kit Price Without Engine: ~$5000
  • Plans Price: ~$377
  • Number of Seats: 1
  • Building Materials: C, F, M, T, W
  • Building Time: ~3000 Hours
  • Standard Engine: Lycoming IO-320 / 160 hp
  • Horsepower: 160-180
  • Wing Span: 19.3'
  • Wing Area: 75.5 sq ft
  • Empty Weight: 710 lbs
  • Gross Weight: 1140 lbs
  • Takeoff Distance: 600'
  • Landing Distance: 600'
  • Cruise Speed: 160 mph
  • Top Speed: 180 mph
  • Fuel Capacity: 20 Gallons
  • Range: 380 miles

Reviews

Very pleased with service I received from Jaycee.

Joseph J Verified Purchase

ONE DESIGN PLANS COMPLETE

July 26, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is included in the spar and skin kit?

You can click on the part number, 01-02335, to see a breakdown of what is included in the kit.

Q: What is Manufacturers C of C?

C of C means certificate of conformance which means the item(s) is made to a specification and the supplier is certifying that it meets the spec. If you check the box, we will include the original manufacturer paperwork with the c of c with your order for that item. If you are unsure of what it is, you most likely do not require it.

On this One Design experimental aircraft, it is irrelevant.
