McFarlane MC0541153 Landing Gear U-Bolt for Cessna Aircraft - FAA / PMA

$605.00/Each
Quantity
Add to Wishlist
Part# 05-26710
MFR Model# MC0541153

Overview

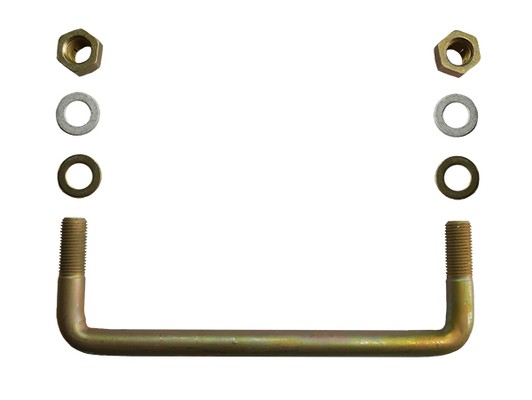

FAA approved ICA allows 1200 hours service life instead of 1000 hours as per SE78-68. Vacuum re-melt crankshaft steel alloy for extreme fatigue resistance, and rolled "J" threads instead of cut threads for twice the fatigue resistance

"J" style nuts and washers included

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Eligible Aircraft

Make Series Model Beginning S/N Ending S/N Quantity Per Aircraft Location Eligibility Chart
Cessna 172 172 28000 46754 2 LANDING GEAR 7435
Cessna 172 172A 46755 47746 2 LANDING GEAR 7435
Cessna 172 172B 17247747 17248734 2 LANDING GEAR 7435
Cessna 172 172C 17248735 17249544 2 LANDING GEAR 7435
Cessna 172 172D 17249545 17250572 2 LANDING GEAR 7435
Cessna 172 172E 17250573 17251822 2 LANDING GEAR 7435
Cessna 172 172F (T-41A) 17251823 17253392 2 LANDING GEAR 7435
Cessna 172 172G 17253393 17254892 2 LANDING GEAR 7435
Cessna 172 172H (T-41A) 17254893 17256512 2 LANDING GEAR 7435
Cessna 172 172I 17256513 17257161 2 LANDING GEAR 7435
Cessna 172 172K 17257162 17259223 2 LANDING GEAR 7435
Cessna 172 F172D F172-0001 F172-0018 2 LANDING GEAR 7435
Cessna 172 F172E F172-0019 F172-0085 2 LANDING GEAR 7435
Cessna 172 F172F F172-0086 F172-0179 2 LANDING GEAR 7435
Cessna 172 F172G F172-0180 F172-0319 2 LANDING GEAR 7435
Cessna 172 F172H F17200655 F17200754 2 LANDING GEAR 7435
Cessna 172 F172H F172-0320 F172-0654 2 LANDING GEAR 7435
Cessna 172 FR172E FR17200001 FR17200060 2 LANDING GEAR 7435
Cessna 172 FR172F FR17200061 FR17200145 2 LANDING GEAR 7435
Cessna 172 FR172G FR17200146 FR17200225 2 LANDING GEAR 7435
Cessna 172 P172D P17257120 P17257188 2 LANDING GEAR 7435
Cessna 172 R172E (T-41B,C,D) R172-0001 R1720335 2 LANDING GEAR 7435
Cessna 172 R172F (T-41D) R172-0336 R172-0409 2 LANDING GEAR 7435
Cessna 172 R172G (T-41C,D) R1720410 R1720444 2 LANDING GEAR 7435
Cessna 172 R172H (T-41D) R1720445 R1720620 2 LANDING GEAR 7435
Cessna 175 175 55001 56238 2 LANDING GEAR 7435
Cessna 175 175A 56239 56777 2 LANDING GEAR 7435
Cessna 175 175B 17556778 17557002 2 LANDING GEAR 7435
Cessna 175 175C 17557003 17557119 2 LANDING GEAR 7435
Cessna 182 182 33000 33842 2 LANDING GEAR 7435
Cessna 182 182A 33843 51556 2 LANDING GEAR 7435
Cessna 182 182B 51557 52358 2 LANDING GEAR 7435
Cessna 182 182C 52359 53007 2 LANDING GEAR 7435
Cessna 182 182D 18253008 18253598 2 LANDING GEAR 7435

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
