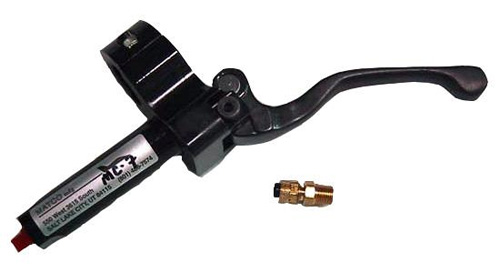

Matco Mcmc-7 Hand Operated Master Cylinder

Add to Wishlist
Part# 06-00014
MFR Model# MCMC-7


MATCO mfg's MCMC-7 master cylinder uses a INTERNAL reservoir. The MCMC-7 can be used in individual or dual brake applications. Buna-n orings are used in this assembly. Mil-H-5606 aircraft hydraulic fluid or compatible fluids are reccomended. DOT5 may be used but not DOT5.1 which contains glycol. DOT3 and DOT4 may not be used and will cause immediate damage to the seals.

The MC-7 hand operated master cylinder is designed to be stick mounted. This product features a small internal vented reservoir that allows the hydraulic system to self-adjust. The MC-7 must be mounted vertically. This unit replaces the MC-6 which did not self adjust and required dismounting from the control stick for bleeding. The MC-7 is designed to be serviced and bled in the installed position. It is black anodized and uses 1/8 inch NPT fittings. Like all MATCO mfg master cylinders, this system uses Mil-H-5606 hydraulic fluid

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.


  • Measures 9.2 inches from end to end.
  • Measures 9.2 inches from mounting hole to mounting hole.
  • A 0.688 inch diameter piston is used.
  • Stroke is approximately 0.7 inches.
  • Displacement is 0.25 cubic inches.
  • The ports on all MATCO mfg master cylinders are 1/8 inch NPT (except the MC-4E).
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed


This master cylinder works well. I made the mistake of using 125 psi air line instead of proper brake line which gave unsatisfactory results. The tech department at Matco was EXCELLENT! They helped me trouble shoot, my emails were answered very promptly. Make sure you use proper brake line with this cylinder as it develops up to 600 psi.

Dennis C
October 14, 2018

My Light Sport came with a hand operated master cylinder. I had nothing but trouble with it. If I left my plane in the sun on a warm day, the heat would build internal pressure in the brake system, and the brakes would drag. I read about this master cylinder on Aircraft Spruce, and decided to give it a try. The internal venting feature allows for absolutely no pressure build up. My braking system has never worked so well. I highly recommend this master cylinder!

Guy S
April 5, 2018


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What should be the outer diameter of the stick to install the Matco MCMC-7 hand operated master cylinder?

Matco calls for a 1" diameter tube / stick for the unit to attach to.

Q: Does the Matco MCMC-7 hand operated master cylinder include a parking brake position?

No, this does not include the parking brake position valve. This would be P/N# 06-01267 (See Accessories).
