UNIV SPRING LOCKING LATCH (R)

$47.50/Each
Part# 05-00896
MFR Model# 05-00896

Overview

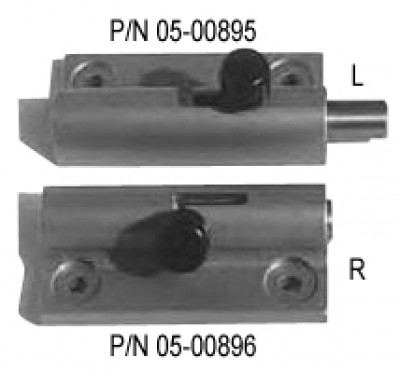

These universal spring loaded latches are designed for aircraft canopies, cockpit doors, and baggage doors. They are available in right hand and left hand models with different striker angle lock pins on the two models. These latches work great on a wide variety of experimental aircraft.

Latch flange has 3/16" holes drilled for mounting.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the material and finish of the universal spring loaded latch, part# 05-00895?

It is machined out of aluminum, and has a yellow-ish anodized finish.

Q: What is the extended length of the pin and the diameter of the pin?

Pin extension is 1/2" and pin diameter is 3/8".

Q: What are the dimensions of the Universal spring loaded locking latch?

Length: 2-3/4", Width: 1-5/8", Thickness 1/4", Pin Extension 1/2", Pin Diameter 3/8"
