Radiant SafeAlt Portable Altimeter / VSI Combo Orange Case
MFR Model# RI-2025-1-SA
FREE Shipping
Overview
**NOTE FAA APPROVED - FOR USE IN EXPERIMENTAL AIRCRAFT ONLY**SafeAlt is a self-contained Portable Altimeter/VSI designed to increase safety for both pilots and passengers. We've added an automatic computation of Density Altitude to evaluate the effects of altitude and heat on takeoff performance. The new Density Altitude feature (July 2025) provides pilots with information that is critical for safe takeoffs, especially at higher altitudes and on hot days. A temperature sensor within the unit is used in conjunction with internally determined pressure altitude, thus providing Density Altitude. With altimeter, VSI, and now Density Altitude, SafeAlt provides valuable information for pilots. It runs for hours on an internal USB chargeable battery and uses an extraordinarily accurate solid-state pressure sensor. It can be recharged from any USB port. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- In addition to Density Altitude, it improves safety in these scenarios:
- For general aviation pilots, it provides a backup to panel-mounted altimeters and VSI gauges in an easy to use, USB rechargeable, portable device.
- For corporate pilots in pressurized aircraft, it provides a visual and aural alarm if cabin depressurization occurs. This might save lives.
- For passengers on commercial aircraft, it provides a visual and aural alarm if cabin altitude slowly exceeds a set value (indicating a failure of the aircraft to pressurize) or if rapid decompression occurs (also indicating a pressure failure). Furthermore, it reads pressure altitude within the cabin, which is a proxy for flying comfort. The latest commercial aircraft designs have better, or lower, pressure altitude while flying.
Specifications
- Altimeter range: 0 to 20K feet (will not show negative altitude values, nor values above 20,000 feet).

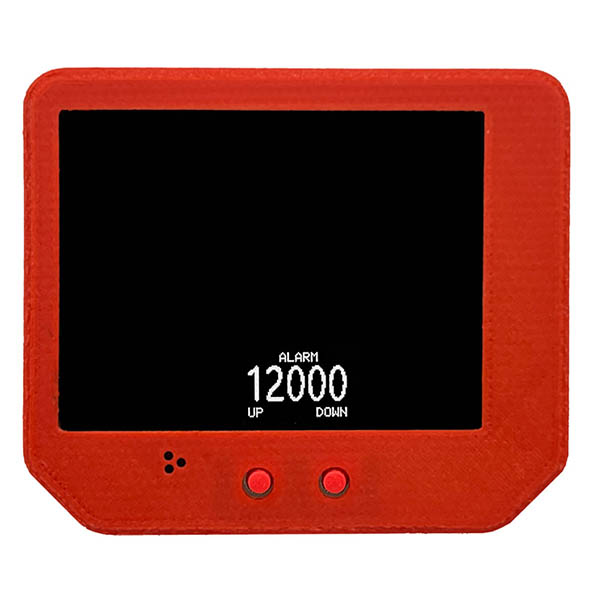

- Pressure Alarm: Preset at 12,000 feet. User adjustable.
- Dimmable for use in low light.
- Aural alarm when pressure alarm value is exceeded.
- Visual alarm appears on screen when pressure alarm value is exceeded.

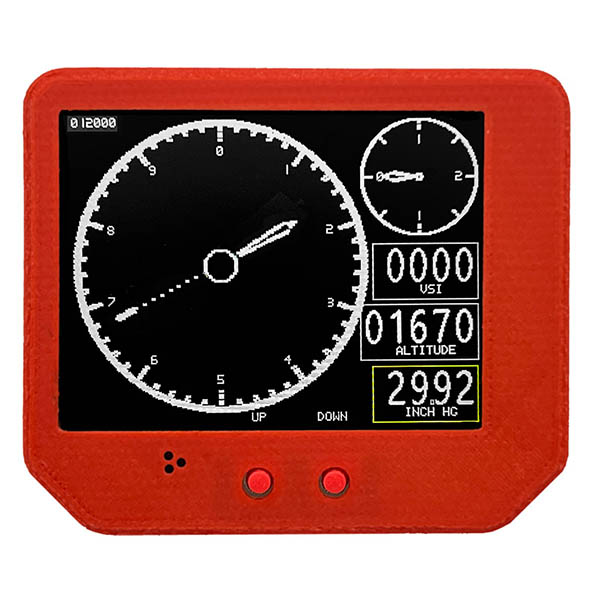

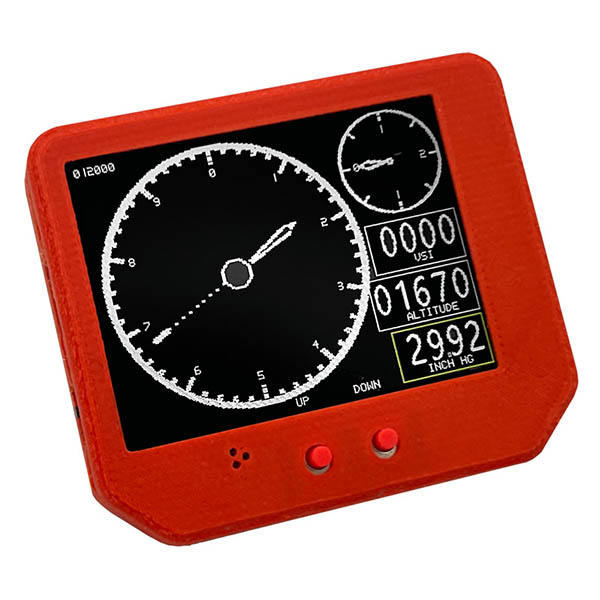

- Altimeter display type: analog dual needle representation supplemented by digital value.
- VSI display type: analog single needle supplemented by digital value.
- Kollsman window: digital. (This allows fine-tuning the altitude to match local barometric variation and is not used when monitoring cabin pressure altitude.)
Benefits
- SafeAlt runs for hours off an internal USB chargeable battery and uses an extraordinarily accurate solid-state pressure sensor.
- SafeAlt is a self-contained, portable device. The altitude sensor is internal and uses ultra-reliable MEMS technology. A USB charging port and switch are on the side. Buttons on the bottom can be used to exactly match the local pressure setting but aren’t needed for tracking cabin pressure inside an aircraft.
- Of course, it is also an excellent backup to panel-based altimeters and VSI gauges for any general aviation pilot. An optional Adapter Ring is available for mounting in a 3 1/8” standard panel cutout.
Documents
Reviews
Great way to check density altitude before every takeoff in mountains
Verified Purchase
Radiant SafeAlt Portable Altimeter / VSI Combo Orange Case
Q&A
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Based on the available information, the RI-2025-1-SA RADIANT SAFEALT digital altimeter does not appear to display tenths of a meter or tenths of a foot. It is displays altitude in whole units.
The altimeter provides a digital altitude reading that can be user-selected to display in either feet or meters. However, the documentation indicates a precision of 1 foot, and there is no mention of a feature to display tenths of either unit. For ground elevations requiring that level of detail, this altimeter would not be suitable.
The manufacturer describes the solid-state altitude sensor as "amazingly accurate" and specifies that it shows differential altitudes with a precision of 1 foot. This means the smallest increment of change the altimeter will display is a single foot. The overall accuracy will be dependent on proper calibration to the local barometric pressure, which can be done via the digital Kollsman window.
