|Illuminated Rocker Switch OFF-ON||Red||12v / 20 amps||14-305|

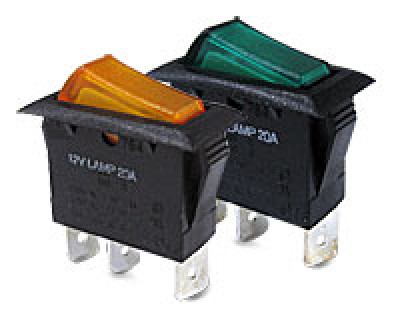

|Illuminated Single Pole Rocker Switches, OFF-ON, 12V / 20A|
Very functional for daytime, a little too bright for night flight.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dimensions of the switch faceplate is approximately 1-1/4" x 3/4". Total depth of switch from top of switch to bottom of terminal is approximately 1-1/2". These are 12V / 20 amp switches. They are intended to be used as ON-OFF switches only, not designed for ON-ON.
No, for use on experimental aircraft only.
Yes, these switches are designed to be up for on and down for off.
The spade connection is .25" wide.
No, the bulbs are incandescent.
The panel cutout needs to be 1.12" (28.5 mm) in height, and .55" (14 mm) wide.
Yes you are correct. This switch is as follows:
These are incandescent.
