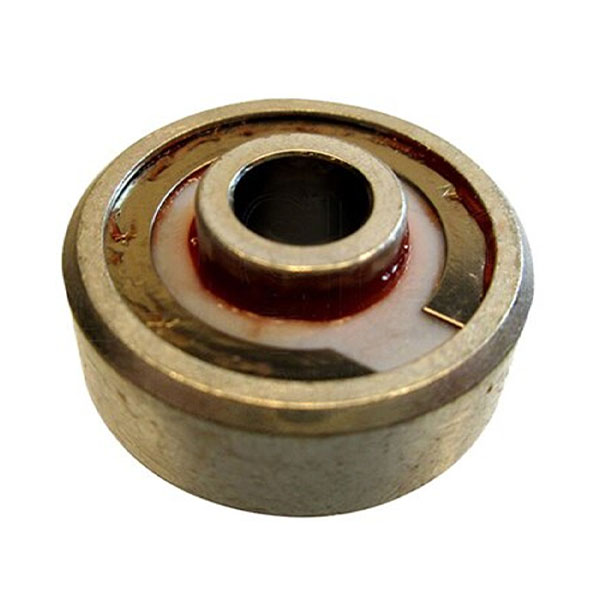

KSP4 BEARING MS27645-4
MFR Model# MS27645-4
Eligible for FREE Shipping
| PN |
|---|
| KSP4 |
Overview
| KS Series Bearings MS27645 |
 |
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov |
Specifications
| OEM PN | (B) Dia. +.00-.0005(in.) | (D) Outside Inner Ring | (W) Width Outer Ring | (H) Width Inner | (A) Shoulder Width Bore Ring | (E) Inner Ring OD | (C) Outer Ring Corner Chamfer | Balls No.(Size) | Max Radial | Max Thrust | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KSP3L | .1900 | .6250 | .245 | .203 | .257 | .005 | .016 | 13 (3/32) | 400 | 100 | .01 |
| KSP3 | .1900 | .7774 | .297 | .270 | .342 | .005 | .022 | 12 (1/8) | 800 | 200 | .03 |
| KSP4 | .2500 | .9014 | 484 | .335 | .400 | .005 | .032 | 12 (5/32) | 1100 | 300 | .04 |
| KSP5 | .3125 | 1.2500 | .558 | .375 | .562 | .015 | .032 | 13 (3/32) | 1400 | 300 | .10 |
| KP6 | .3750 | 1.438 | .62 | .469 | .591 | .015 | .032 | 10 (11/32) | 2980 | 400 | .15 |
| KS6A | .3750 | .8750 | .313 | .250 | .475 | .016 | .016 | 15 (1/8) | 1000 | 200 | .03 |
| KS8 | .5000 | 1.6875 | .620 | .500 | .798 | .015 | .044 | 16 (7/32) | 2100 | 500 | .23 |
Reference Chart
Reviews
Great product, very happy with it. No “slop” in the bearing at all.
Verified Purchase
KSP4 BEARING MS27645-4
Quick ship and on time as always.. Thanks Aircraft Spruce!!!!!
As Advertised.......... Thank You!
