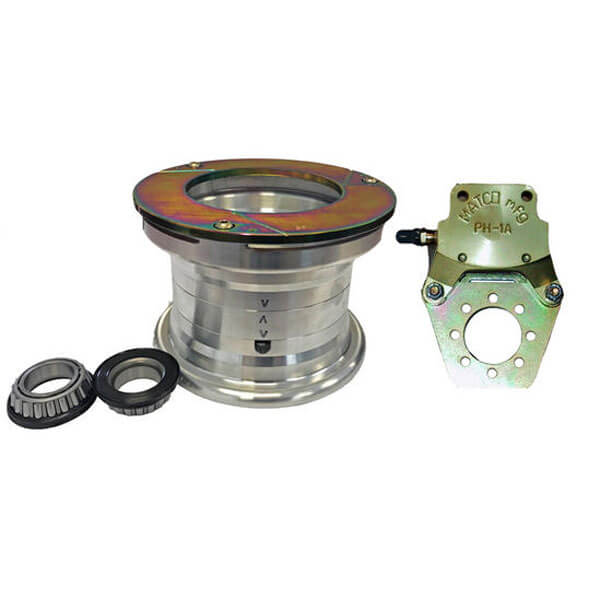

Matco Centrifugally Cast Wheels Internal Caliper F600

Part# 06-00466
MFR Model# WHLF600


MATCO mfg produces a superior 6 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).

Product Comparison Table
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.


  • The F600: 6 inch wheel with 5.37 inch width with an additional 1.23 inch caliper spacing.
  • Bearing spacing: 3.7 inches and axle spacing is 1.25 inches.
  • The total weight of this wheel/brake assembly: 7.8 pounds.
  • The bearing axle diameter: 1.25 inches.

  • Performance -The F600 is designed for the following standards:
    • Static Capacity: 1420 LBS

    • Load Limit: 4260 LBS

    • Maximum Accelerate/Stop Kinetic Energy: 189604 ft-lb

    • Torque Rating (@450 PSI): 1988 in-lb
    • Frequently Purchased With
    • Customers Also Viewed



    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Is this price for two wheels and two brake or single one ?

    Part # 06-00466 is priced and sold as a pair.
