Home / Landing Gear / Brake Components / Linings/Pads /Cleveland 66-106 Organic Brake Lining
Main Image

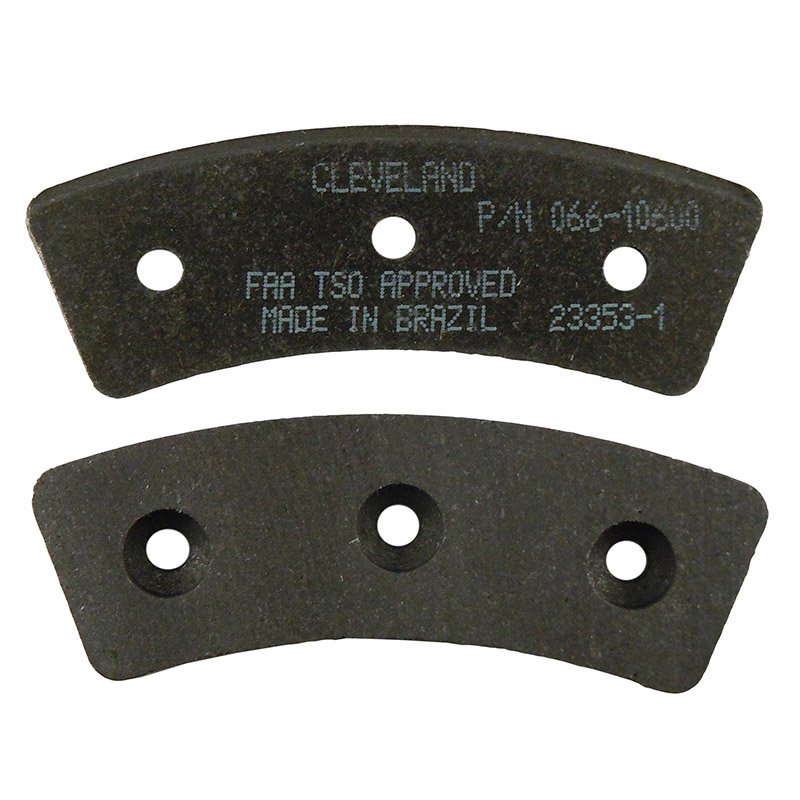

CLEVELAND 66-106 ORGANIC BRAKE LINING

0 Reviews 1 Answered Question
$15.50/Each
Quantity
Add to Wishlist
Part# 66-106
MFR Model# 066-10600

Overview

Cleveland 66-106 Organic Brake Lining includes three rivets.

Most light aircraft take 2 linings per wheel. See tool section for economical rivet tool.

Advise aircraft make, model and serial number to assure that correct brake lining part number is furnished.

Application Chart

Aircraft Make & Model Old Cleveland P/N No. Req. New Cleveland P/N
AEROTEK
Pitts S-1, S-2A 66-2 2 66-106
4 Pack Kit of
66-106
BEECH
Musketeer 66-55 2 66-105
4 Pack Kit of
66-105
Sierra Sport Sundowner B-19; C-23, 24R 66-55 2 66-105
4 Pack Kit of
66-105
Debonair CD-1 thru CD-387 66-4 2 66-111
4 Pack Kit of
66-111
Debonair B-33 66-2 2 66-106
4 Pack Kit of
66-106
BELLANCA
Citabria, Champ 66-2 2 66-106
4 Pack Kit of
66-106
Scout 66-3 1 66-106
4 Pack Kit of
66-106
Decathalon, Scout 8GCBC 66-2 2 66-106
4 Pack Kit of
66-106
Viking, Aries 250 66-55 2 66-105
4 Pack Kit of
66-105
Skipper 66-71 2 66-112
CESSNA
150A, B, C, D, E 66-2 2 66-106
4 Pack Kit of
66-106
66-56 2 66-106
4 Pack Kit of
66-106
150F, G, H, J, K, 152, F-152, FA-152 66-55 2 66-105
4 Pack Kit of
66-105
Skyhawk 172, Cardinal 177 All 66-55 2 66-105
4 Pack Kit of
66-105
Skywagon 180 66-55 4 66-105
Skylane 182 H, J, K, L, M, N 66-55 2 66-105
4 Pack Kit of
66-105
185A, B 66-2 2 66-106
4 Pack Kit of
66-106
185C, D, E 66-55 2 66-105
4 Pack Kit of
66-105
185 with crosswind gear 66-2 2 66-106
AGWagon 66-55 4 66-105
Stationair-6 205, 205A 66-2 2 66-106
4 Pack Kit of
66-106
Stationair-6 205, 205A (s/n 205-0481 & up) 66-55 4 66-105
206, U206A, D, E & Turbo models 66-55 4 66-105
207, T207 66-55 4 66-105
210C 66-4 2 66-111
210, P210, T210, 210N, P210N 66-55 4 66-105
303, T303 66-44 4 66-44
305A, B, C, D, E, F 66-55 4 66-105
310, 335 66-33 6 66-33
Skymaster 336 66-2 2 66-106
4 Pack Kit of
66-106
All Cessnas using Cessna/McCauley Brakes B-30026 2
  • 150,152,A150 (1971 to 1973),F150,F152 (1973 to 1976)FA152 (Reims)
  • 172,R172 (1971 to 1973),F172,FR172,172RG
  • 177,177RG,F177RG (1975 thru 1977)
  • 180 Series Skywagon
  • 182 Series, F182 (Reims)(1976 thru 1978), T182 (1981 and on)
  • 185 Series Skywagon (1973 to 1974)
  • 206 Series (Aircraft equipped with McCauley)
  • 210 Series (Aircraft equipped with McCauley)
B-30026 2 66-109
CIRRUS

SR-20

(Click image to enlarge view)
 066-14100 4 66-141
GRUMMAN
AA-1, A, B, AA-5, AA-5A, AA-5B, Tiger, TR-2 66-55 2 66-105
4 Pack Kit of
66-105
AG-CAT 66-3 1 66-106
4 Pack Kit of
66-106
66-56 2 66-106
4 Pack Kit of 66-106
G-154 66-2 2 66-106
4 Pack Kit of
66-106

Aircraft Make & Model Old Cleveland P/N No. Req. New Cleveland P/N
MAULE
Jetasen/Rocket, Lunar/Rocket 66-55 2 66-105
4 Pack Kit of
66-105
MOONEY
Most M20, A, B, D, E 66-4 2 66-111
PILATUS BRITTEN-NORMAN LTD.
Defender 4000 66-44 6 66-44
PIPER
Colt PA22-108
66-2
 2 66-106
4 Pack Kit of
66-106
66-56
 2 66-106
4 Pack Kit of
66-106
Apache PA-23-150, 160
66-2
 2 66-106
4 Pack Kit of
66-106
66-56
 2 66-106
4 Pack Kit of
66-106
Apache/Aztec PA-23-235, 250 Series
66-2
 4 66-106
66-3
 4 66-106
Comanche PA-24-180, 250, 260
66-2
 2 66-106
4 Pack Kit of
66-106
Pawnee C PA-25
66-2
 2 66-106
4 Pack Kit of
66-106
Cherokee/Cruiser PA-28-140
66-2
 2 66-106
4 Pack Kit of
66-106
PA-28-140 s/n 28-20521 & up
66-55
 2 66-105
4 Pack Kit of
66-105
Cherokee PA-28-150
66-2
 2 66-106
4 Pack Kit of
66-106
Cherokee PA-28-150 s/n 28-1761 & up
66-55
 2 66-105
4 Pack Kit of
66-105
Cherokee Warrier PA-28-151
66-55
 2 66-105
4 Pack Kit of
66-105
Cherokee PA-28-160
66-2
 2 66-106
4 Pack Kit of
66-106
Cherokee/Warrier II PA-28-161
66-55
 2 66-105
4 Pack Kit of
66-105
Cherokee/Archer PA-28-180
66-2
 2 66-106
4 Pack Kit of
66-106
Cherokee/Archer PA-28-160
66-55
 2 66-105
4 Pack Kit of
66-105
Cherokee/Pathfinder PA-28-181, PA-28-236
66-55
 2 66-105
4 Pack Kit of
66-105
PA-28R-180, PA-28-200
66-2
 2 66-106
4 Pack Kit of
66-106
PA-28R-180 s/n 28R-7130006 & up
66-55
 2 66-105
4 Pack Kit of
66-105
PA-28-200 s/n 28R-7135110 & up
66-55
 2 66-105
4 Pack Kit of
66-105
PA-28R-201T, 201, PA-28RT-201, 201T
66-55
 2 66-105
4 Pack Kit of
66-105
Early PA-28-235
66-56
 2 66-105
4 Pack Kit of
66-105
Early PA-28R-180, 200
66-56
 2 66-105
4 Pack Kit of
66-105
Twin Comanche PA-30
Serial # 30-845 and on
66-19
 2 66-62
Twin Comanche PA-30
Serial # 30-2 thru 30-845
66-19
 2 66-65
Navajo B, PA31-300, 310, Turbo Navajo
66-33
 6 66-33
Chieftain, PA-31-350
66-33
 6 66-33
Cherokee/Six-260 PA-32-260
66-55
 4 66-105
PA-32-300 s/n 32-40000 thru 7200029
66-55
 4 66-105
PA-32R-300, 32RT-300
66-55
 4 66-105
PA-38-112 (6" Wheels)
66-71
 2 66-112
PA-38-112 (5" Wheels)
66-51
 2 66-106
4 Pack Kit of
66-106
PA-39
66-19
 1 66-62
PA-39, PA-39-1 & up
66-3
 1 66-106
PA-44-180
66-55
 4 66-105
RAYTHEON
C55, TE-1 AND ON 66-44 4 66-44
D55 TE-452 AND ON
E55, TE-768 AND ON
TAYLORCRAFT
Sportsman 100 66-55 2 66-105
4 Pack Kit of
66-105
*Advise aircraft make, model and serial number to assure that correct brake lining part number is furnished.
** Extra rivets, P/N 105-2, for all models listed in table .05 each

Documents

  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Submit a Review

Q&A

Submit
Q: AC Spruce # 66-106 brake lining. Is this price for one single lining, or for a 4 pack?

Part# 66-106 is a single lining with rivets. They are priced and sold each.
