AVI Survival Products TSO Type I 6 Person Life Rafts

From $7430.00 to $13290.00
Model No. Description Packed Dimensions (inches) Weight (Lbs) Part Number Buy
RAF-1206-3016 Person, TSO Life Raft with FAR 91 Survival Kit9X15X2037
13-05861
$7430.00
Quantity
RAF-1206-3036 Person, TSO Life Raft with FAR 121 Survival Kit9X15X2038
13-23606
$7730.00
Quantity
RAF-1206-3056 Person, TSO Life Raft with FAR 135 Survival Kit9X15X2043
13-23608
$9048.00
Quantity
RAF-1206-3076 Person, TSO Endpack Life Raft with FAR 91 Survival Kit7X13.75X29.2539
13-23610
$7511.00
Quantity
RAF-1206-3096 Person, TSO Endpack Life Raft with FAR 121 Survival Kit7X15X29.2541
13-23612
$7700.00
Quantity
RAF-1206-3116 Person, TSO Endpack Life Raft with FAR 135 Survival Kit7X15X29.2545
13-23614
$9214.00
Quantity
RAF-1206-301T16 Person, TSO Life Raft with FAR 91 Survival Kit + 406 elt9X15X2039
13-23605
$11485.00
Quantity
RAF-1206-303T16 Person, TSO Life Raft with FAR 121 Survival Kit + 406 elt9X15X2043
13-23607
$11806.00
Quantity
RAF-1206-305T16 Person, TSO Life Raft with FAR 135 Survival Kit + 406 elt9X15X2045
13-23609
$13124.00
Quantity
RAF-1206-307T16 Person, TSO Endpack Life Raft with FAR 91 Survival Kit + 406 ELT7X13.75X29.2539
13-23611
$11553.00
Quantity
RAF-1206-309T16 Person, TSO Endpack Life Raft with FAR 121 Survival Kit + 406 ELT7X13.75X29.2543
13-23613
$11807.00
Quantity
RAF-1206-3011T16 Person, TSO Endpack Life Raft with FAR 135 Survival Kit + 406 ELT7X13.75X29.2545
13-23615
$13290.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

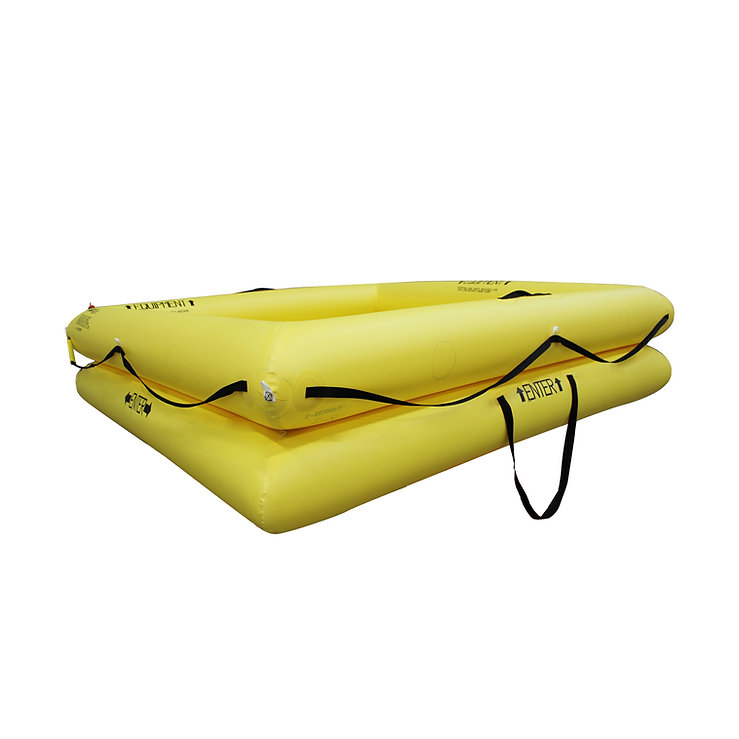

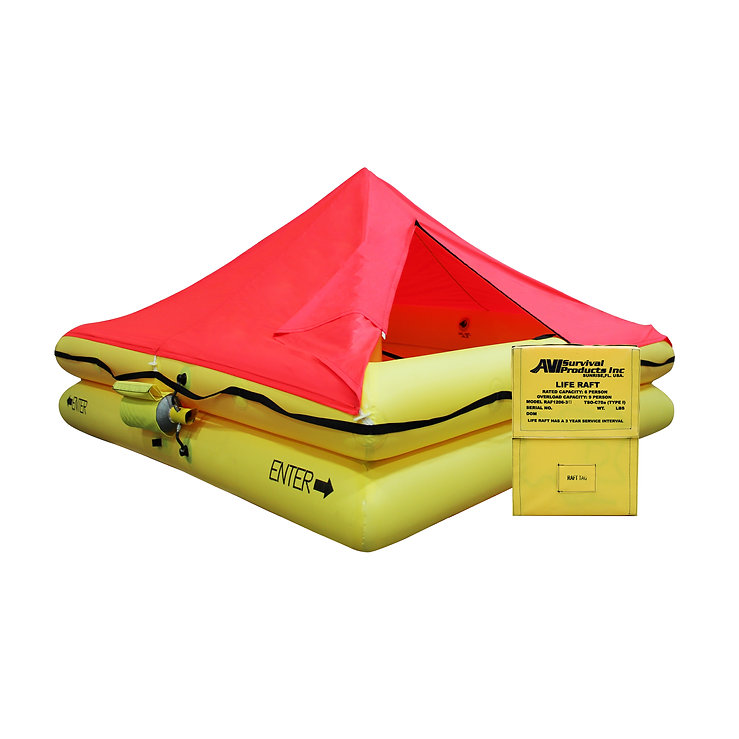

AVI Survival Products 6 Person Life Raft conforms to the latest FAA TSO C70a requirement. The life raft has a dual tube in­flatable design, classified as a Type I, Transport category life raft recommended for Corporate and General Aviation.

The 6 Person life raft series is constructed with the latest Urethane coated Nylon Fabric, that is manufactured using thermal bonding technology. This process heat seals the fabric, melting the seams together to ensure longevity of the raft. Each raft includes a stabilizing Water Ballast system, a hand pump, bailing bucket, a sea anchor, secured life-lines on the exterior perimeter of the raft for use of survivors in the water, and an inflation/retaining line that is attached to a high strength patch on the raft to prevent drifting and a water activated locator light. Aluminum cylinders and valves are added to reduce corrosion while packed and in use. The Soft-Pack Valise is made of heavy-duty polyester fabric with secured Velcro closures for a tightly packed raft.

These rafts are engineered to reduce overall weight and deliver a compact de­sign for easy transport and stowage for any aircraft compartment. AVI life rafts come with a 5-year warranty on parts and labor, built to last a lifetime with proper care.

This raft includes the FAR 91, FAR 121, or FAR 135 Survival Equipment Kit. The 406 ELT, which may be required by law for those who operate an airplane in extended overwater operations is available and can be added to the kit.


California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Features

  • Lightest weight and most compact - easy to carry, stow away, and maneuverable any emergency.
  • Single tube with internal bulkhead design creating two separate chambers.
  • Includes a stabilizing Water Ballast System and a Water Activated Locator Light.

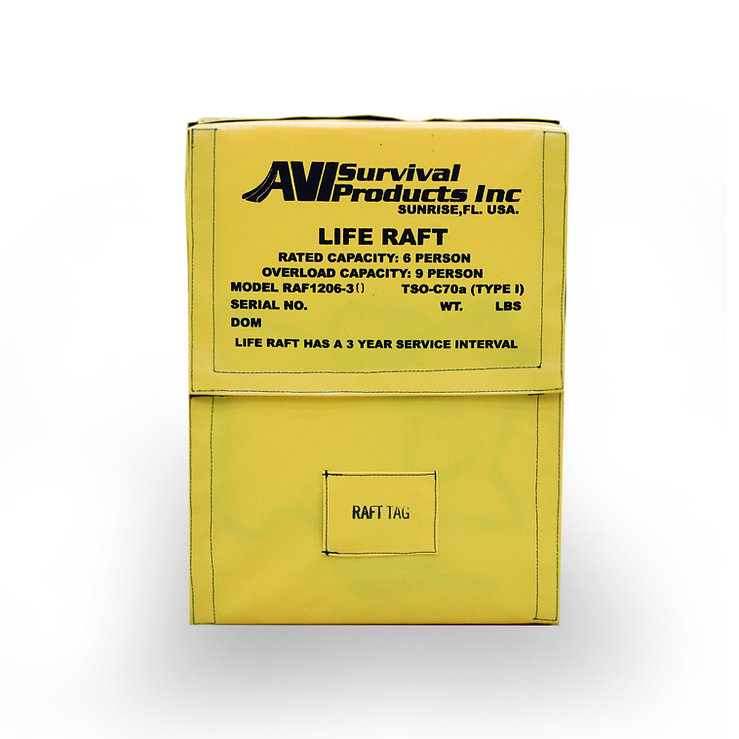

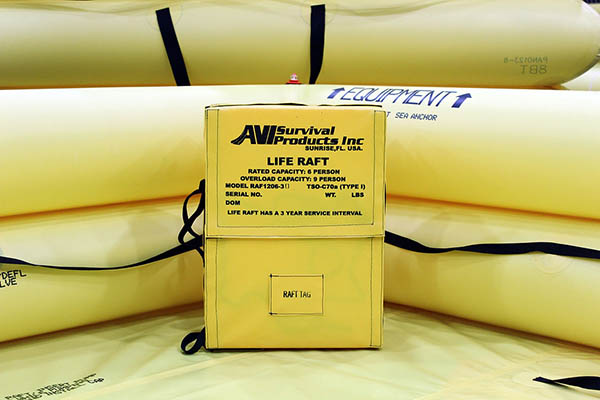

  • Soft-Pack Valise made of heavy duty Polyester fabric with secure Velcro closures.
  • Constructed of Urethane coated Nylon Fabric, meeting TSO-C70B requirements.
  • Contains Aluminum Cylinders and valves eliminating corrosion and greatly reducing the weight.
  • 5-year warranty on parts and labor, built to last a lifetime with proper care.

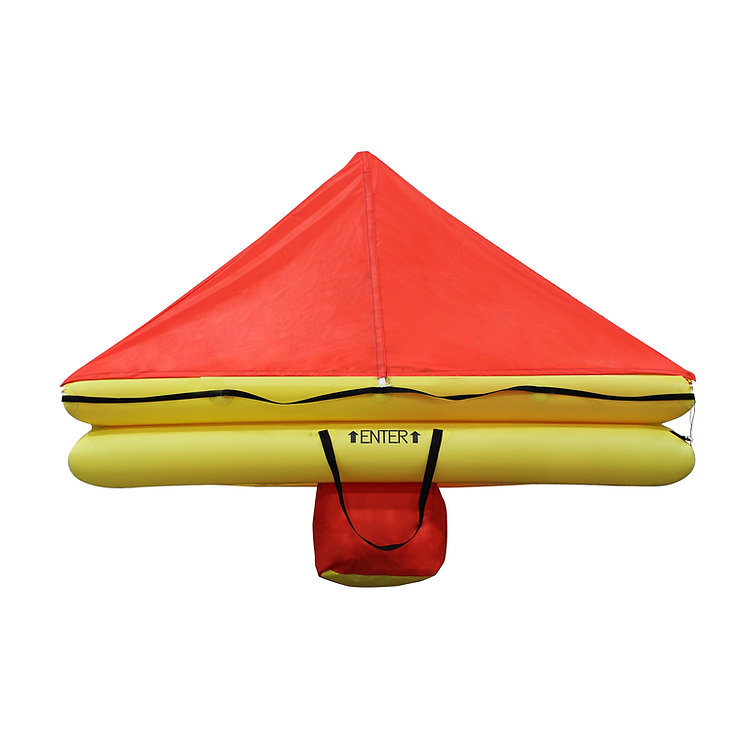

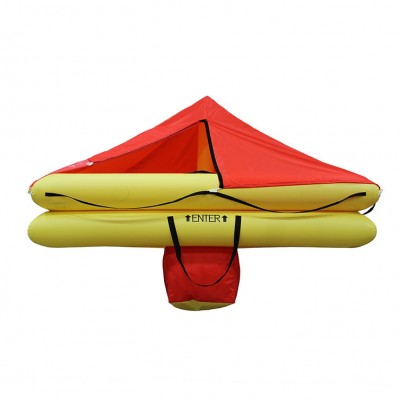

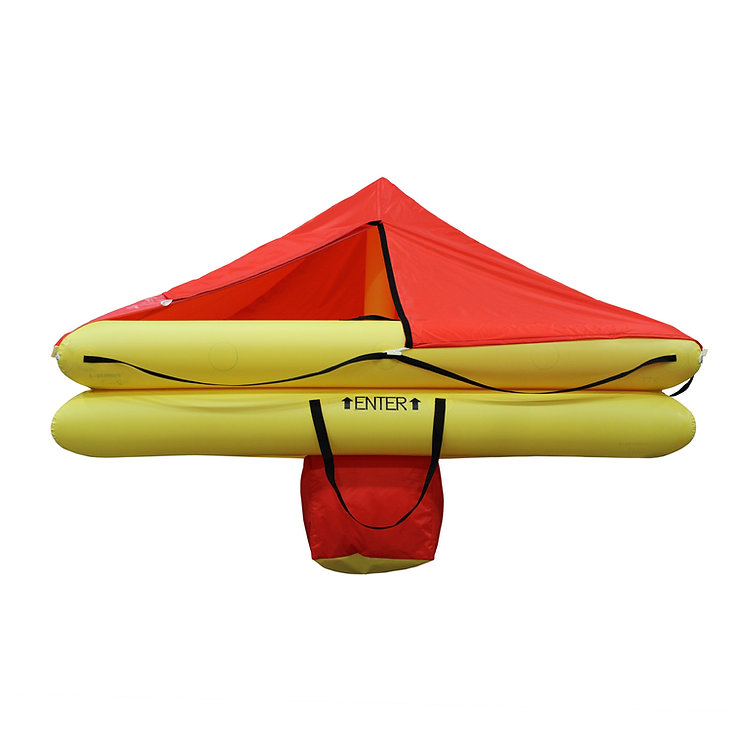

  • Highly visible orange canopy to aid in search and rescue operations.

Specifications

  • Capacity: 6
  • Overload Capacity: 9
  • Weight: See Chart Above
  • Packed Dimension: See Chart Above
  • *Dimensions are measured by W x H x L.
  • **Required Raft Compartment Size = Add 1-2” to all around life raft dimensions. Raft required weight +/- 2lbs.

360 View

Survival Kit Contents

    • FAR 91 Survival Kit:
    • Mini Maglite Flashlight
    • Red Aerial Flare
    • First Aid Kit
    • Raft Repair Kit
    • Signal Kit (Mirror, Whistle, Dye Maker, Signal Flag)
    • Water Rations
    • Food Rations
    • FAR 121 Survival Kit:
    • All Contents of Above FAR 91 Survival Kit
    • Utility Knife
    • Survival Manual
    • Compressed Sponge
    • FAR l35 Kit:
    • All Contents of Above FAR 121 Survival Kit
    • Compass
    • 75" Tie Down Cord
    • Fishing Kit
    • Watermaker
    • Paddle
    • Radar Reflective Blanket

In The Box

  • Buoyancy Tube
  • Deck
  • CO2 Inflation System
  • Canopy & Mast
  • Valise
  • Boarding Handles
  • Retaining Line
  • Hand Pump
  • Bailing Bucket
  • Sea Anchor
  • Lifelines
