Brackett TH-6 Towbars

Select Style:
Ring HitchBall HitchClevis Hitch
Quantity
Add to Wishlist

Overview

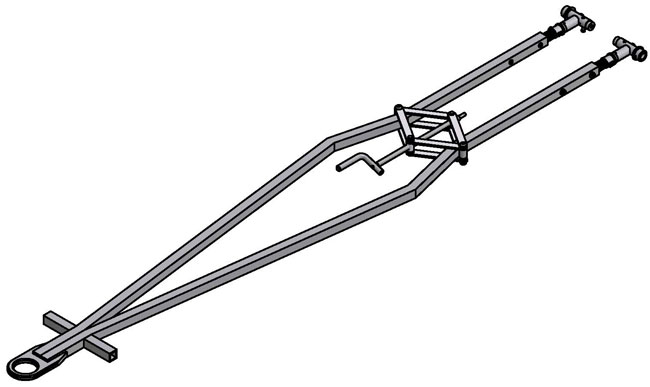

The TH-6 is a light-weight universal towbar designed primarily for hand towing. The TH-6 eliminates the mad hunt for the proper towbar when moving a hangar full of singles and light twins. This towbar also has a good handle for pulling and a ring ,ball or clevis hitch for occasional light towing. NOTE: The piper manual states that the tow pins are for hand towing.

For powered towing we suggest adapter set P/N 13-15488.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Maximum gross aircraft weight: 4,000 lbs (1820 kg)
  • Maximum opening: 10" (25.4 cm)
  • Length: 74" (188 cm)
  • Weight: 18 lbs. (8.2 kg) with ring hitch) / 19 lbs. (8.6 kg) with ball hitch)
  • Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
  • Color: Orange powder coating
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Very nice adjustable tow bar although a bit heavy for this LSA (VL3). Wish a lighter version would be available

Alex W Verified Purchase

BRACKETT TH-6B TOWBAR WITH BALL HITCH

May 24, 2023

Works great for towing our Piper PA28-180 in and out of our hangar with a lawn tractor.

Dion Z
September 9, 2020

Using to tow 1980 Piper Saratoga fixed gear PA32-301T it works as intended - think these things are overpriced but with no alternatives I suppose it isnt It works

Michael L
March 7, 2020

Excellent Towbar. I ran a business for 16 years and a TH-5 was a daily user and I was never disappointed. The TH-6 looks like a formidable replacement. I am no longer in business, but badly miss my TH-5. So I ordered this replacement for my personal use, towing my Piper Comanche. It works great, its light weight makes it easy to use and it is up to the task. I recommend this towbar

Robert J
July 4, 2018

Super quality towbar. Very heavy and as far as Im concerned for vehicular use only. Pulling with tug is easy. Pushing is tough and takes practice. I did know what I was buying before had and this is a must towbar for folks who use them a lot.

Buck
October 13, 2017

This is the 4th Brackett tow bar that Ive purchased over the past 20 years. Disappointed that the TH5B was discontinued and replaced with the TH6. The TH6 lacks the sturdy feel of the TH5, especially when the bar is opened wide. You can see the reasoning in the change: fewer parts, easier to manufacture, cheaper to make. In execution however one gets the sense that they overpaid for the TH6, whereas the TH5 felt like a relative bargain. Will it work? Yes. Would I recommend it over a TH53 or a used TH5B? No.

Tom
November 7, 2017

It doesn’t work well in reverse.

Nicholas V Verified Purchase

BRACKETT TH-6B TOWBAR WITH BALL HITCH

February 1, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the TH-6 replace the TH-5 towbar?

Yes, the TH-6 is a replacement for the TH-5 towbar.

Q: For Brackett towbar TH6, what one do I order so I can put it onto a tow balll? Is that the ring or?

No, for a tow ball hitch, order part # 13-18548.

Q: Does the TH-6 fit an A36 Bonanza as sold or does it require adaptors?

No additional adapters are needed for that aircraft.

Q: What size ball do you use with this?

This has a 2" ring so you would use one smaller than 2".

Q: Good morning. Will the TH-6 attach to the G5 Cirrus without using any adapters like P/N 13-15488? The G5 is under 3200 lbs with full fuel.

You would need to order qty2 of our part number 13-16095.

Q: Will the adapter for Cessna 152, 172, 182 etc on the TH6 tow bar work for the Cessna 177B Cardinal?

Yes you would need two of the T-N182 adapters (13-16106.)
