No. | Rotax PN | Description | Qty | Part Number | Price | Buy |
---|---|---|---|---|---|---|
1 | 996-826 | TRIGGER WHEEL ASSY., | 1c | 15-04418 | $607.00 | |
4 | 945-750 | LOCK WASHER A5 | 5 | 07-00435 | $1.76 | |
5 | 940-880 | ALLEN SCREW M5X30 | 3 | 15-03232 | $0.57 | |
8 | 964-072 | INSULATION SHEATH | 1 | 15-03812 | $1.42 | |
9 | 964-067 | FASTON CONNECTOR 3,96 | 1 | 15-03811 | $1.42 | |
10 | 827-800 | WASHER A 5,5 DIN 6902 | 2 | 15-00860 | $0.27 | |
11 | 941-925 | TAPTITE SCREW M5X16 | 2 | 15-03287 | $0.79 | |
12 | 945-759 | LOCK WASHER 22 | 1 | 15-03367 | $1.10 | |
13 | 842-230 | HEX. NUT M22X1,5 | 1 | 15-01244 | $8.40 | |
15 | 852-412 | STARTING PULLEY | 1 | 15-01591 | $27.79 | |
20-21 | 965-153 | IGNITION CABLE 1,5/7 MM (SEE NOTES) | ARb | 15-03827 | $10.20 | |
22 | 830-962 | PROTECTION HOSE 12X16X40 | 1 | 15-00909 | $2.90 | |
23 | 866-705 | SUPPRESSED SPARK PLUG CONNECTOR | 2 | 15-01867 | $17.99 | |
24 | 244-211 | WASHER 6,4 DIN 134 | 2 | 15-00229 | $0.13 | |
27 | 897-055 | SPARK PLUG 14 MM, NGK BR 8 ES | 2 | 08-00736 | $2.95 | |
30 | 860-962 | CABLE GROMMET 24, 5/11 | 1 | 15-01743 | $6.35 |

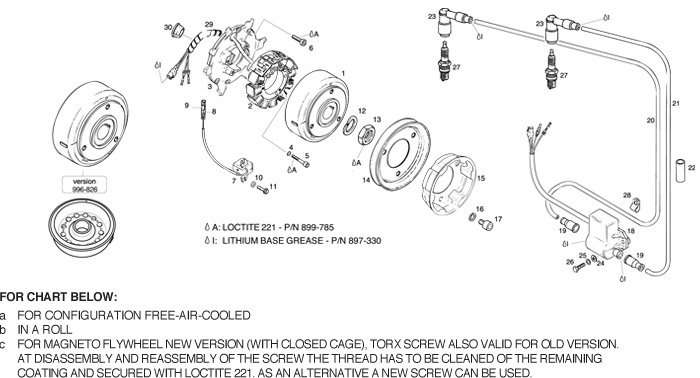

Rotax 447 UL Engine Magneto generator 12v 170w, electronic box, starting pulley parts. Explanations of symbols and statements in part number charts:
![]() |
No. | Status | Part No. | Descriptions | QTY | PRICE |
20 | 965-153 | IGNITION CABLE 730 MM | 1 | $14.95 | |
20 | 965-153 | IGNITION CABLE 560 MM | 1A | $14.95 | |
21 | 965-153 | IGNITION CABLE 500 MM | 1 | $14.95 | |
21 | 965-153 | IGNITION CABLE 560 MM | 1A | $14.95 | |
No. | Status | Part No. | Descriptions | QTY | PRICE |
29 | 966-060 | * SPIRAL HOSE 70 MM | 1 | $10.25 |
* THIS ITEM CAN USE 11-12316(SOLD PER FOOT)
