Rotax 582 Ul Engine Ducati Magneto - Generator 12V 170W | Starting Pulley

From $0.13 to $607.00

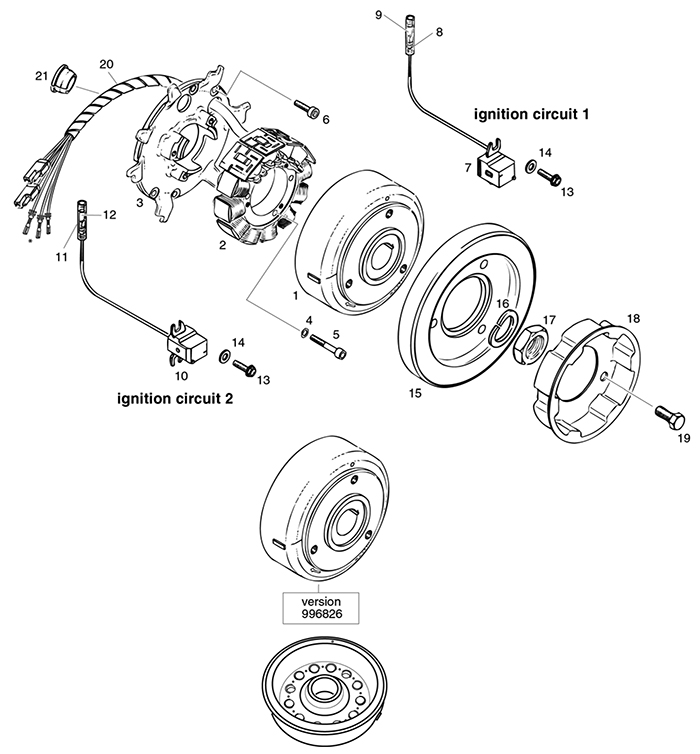

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Part Number Description Qty Req PN Price Buy
1996-826MAGNETO FLYWHEEL P12W1701
15-04418
$607.00
Quantity
4945-750LOCK WASHER A52
07-00435
$0.13
Quantity
5940-880ALLEN SCREW M5X303
15-03232
$0.57
Quantity
8, 11964-072INSULATION SHEATH 1
15-03812
$1.42
Quantity
9, 12964-067FASTON CONNECTOR 3,961
15-03811
$1.42
Quantity
13941-925TAPTITE SCREW M5X164
15-03287
$0.79
Quantity
14827-800WASHER A 5,5 DIN 69024
15-00860
$0.27
Quantity
16945-759 LOCK WASHER 221
15-03367
$1.10
Quantity
17842-239HEX. NUT M22X1,51
15-01245
$8.40
Quantity
21960-288CABLE GROMMET 20,5/111
15-03642
$6.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   For ignition circuit 1.
  • b   For ignition circuit 2.
  • c   In a roll.
  • d   Without rewind starter.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

* THIS ITEM CAN USE 11-12316(SOLD PER FOOT)
