No. | Rotax Part Number | Description | Qty Req. 503 UL | Qty Req. 582 UL | PN | Price | Buy |
---|---|---|---|---|---|---|---|
1 | 960-970 | CONNECTOR SHEATH, YELLOW | NB | NB | 15-03678 | $0.88 | |
2 | 866-300 | FASTON CONNECTOR 6,3X0,8 | NB | NB | 15-01844 | $1.65 | |
4 | 960-719 | CONNECTOR SHEATH | NB | NB | 15-03664 | $0.42 | |
6 | 866-010 | CONNECTOR HOUSING | NB | NB | 15-01830 | $11.90 | |
7 | 866-305 | FASTON CONNECTOR 6,3X0,8 | NB | NB | 15-01845 | $2.82 | |
12 | 860-621 | SHRINK HOSE 40 MM | NB | NB | 15-01720 | $3.59 | |
14 | 866-710 | CLAMP 142X2,5 MM | NB | NB | 15-01869 | $0.79 | |
22 | 265-200 | CONNECTOR HOUSING 2-POLE | NB | 15-00369 | $9.67 | ||
23 | 265-205 | CONNECTOR HOUSING 2-POLE | NB | 15-00371 | $6.59 | ||
24 | 964-072 | INSULATION SHEATH | NB | NB | 15-03812 | $1.42 | |
25 | 964-067 | FASTON CONNECTOR 3,96 | NB | NB | 15-03811 | $1.42 | |
26 | 964-077 | INSULATION SHEATH | NB | NB | 15-03814 | $1.54 | |
27 | 964-062 | FASTON CONNECTOR 3,96 | NB | NB | 15-03810 | $1.42 |

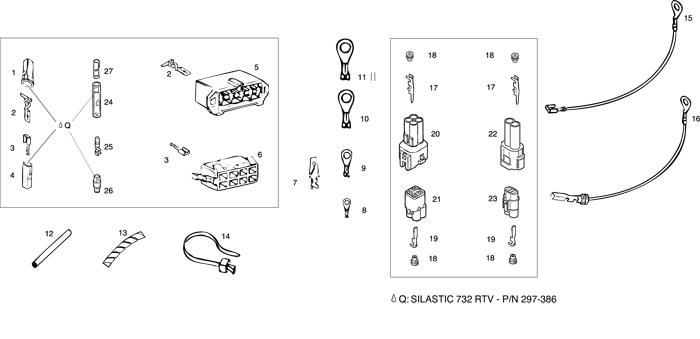

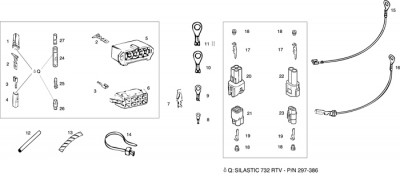

Rotax 447, 503, 582, 618 UL engine wiring accessories parts. Explanations of symbols and statements in part number charts:
|
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
No. | Status | Part No. | Description | 447 | 503 | 582 m90 | 582 m99 | 618 | Price |
9 | 965-700 | CABLE SHOE M4 | AR | AR | AR | AR | AR | * | |
11 | 964-052 | CABLE TERMINAL M6 | AR | AR | AR | AR | AR | * | |
16 | N.A. | 964-052 | MASS CABLE ASSY., 170MM | 1 | 1 | 1 | 1 | 1 | * |
