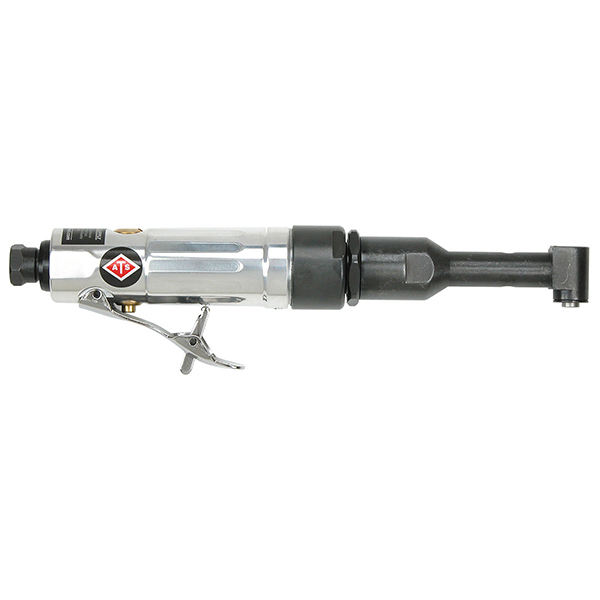

ATS 90 ANGLE AIR DRILL

$269.95/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-01422
MFR Model# ATS6132

Overview

This is the drill you need to get into those tight spaces. It has a head height of just over an inch, and produces enough torque at 2800 RPM to drill through steel. Excellent speed control, and has a solid, well-balanced feel.

Specifications

  • Spindle 1/4-28 Thread
  • Head Length 1.08 (2.7 mm)
  • 2,800 RPM Head Width .65 (1.6 mm)
  • .33 hp (.25 kw)
  • 10 (254 mm) Overall Length
  • Variable speed control
  • 1.6 lbs (.73 kg)

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Hi there, just bought this angle drill from Airspruce and now I´m needing the correct collets. Does the ANGLE DRILL COLLET & CHUCK KIT Part # 12-00368 work with this angle drill? Many thanks in advance. Marcus

Yes, the drill has female 1/4-28 threads, and the collets have male 1/4-28 threads.
