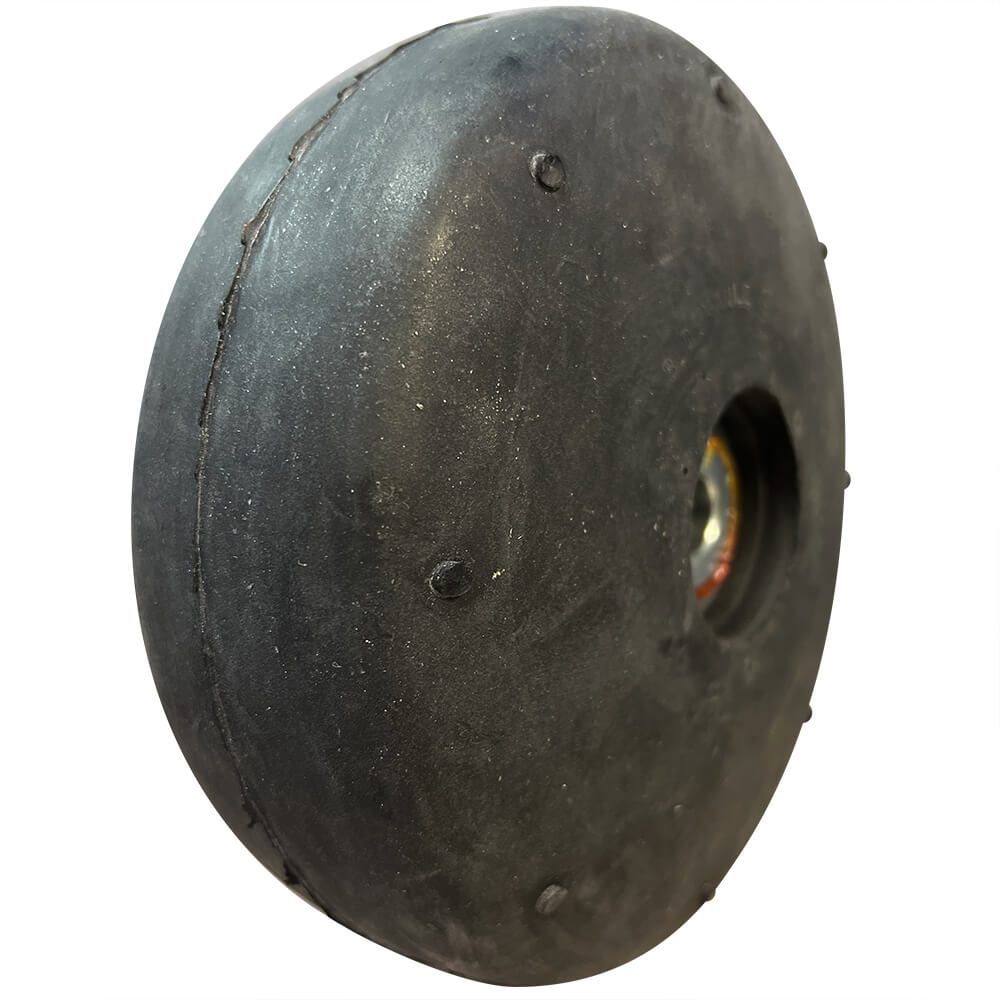

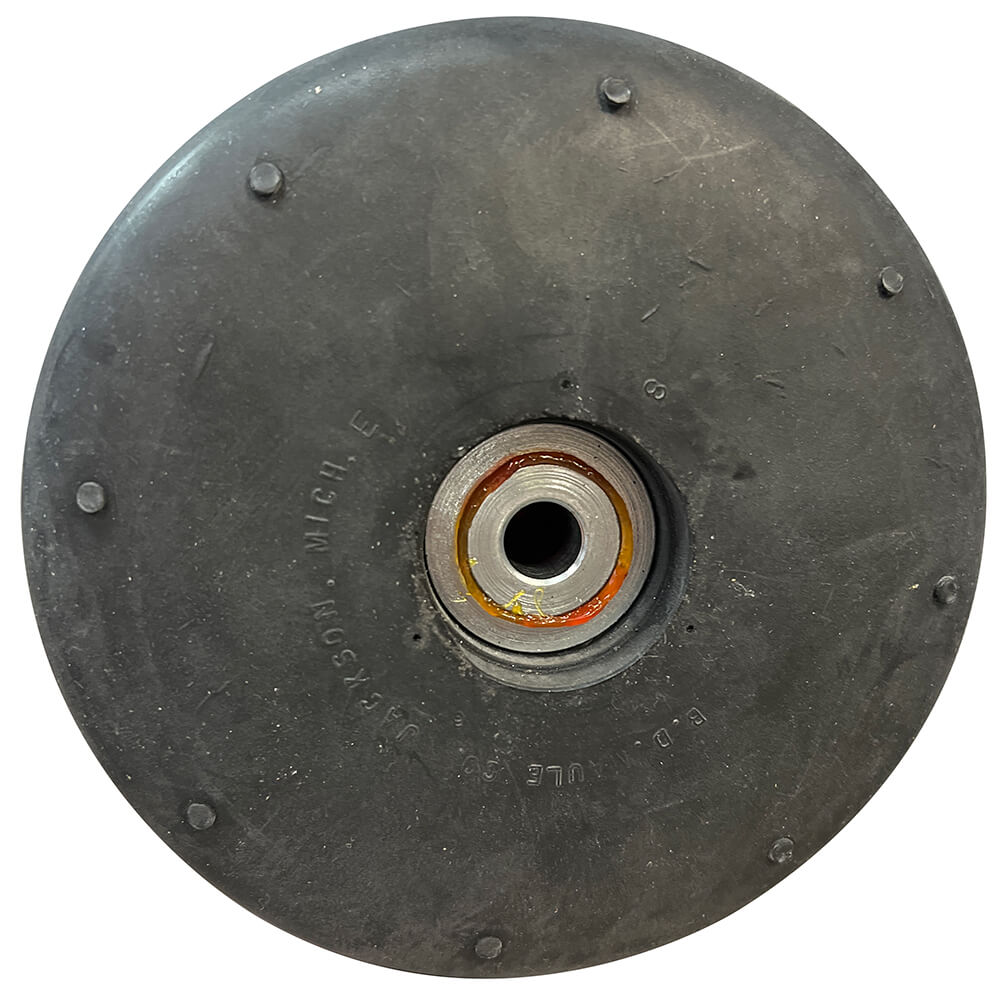

MAULE TAIL TIRE W/ BEAR TW-23A

$339.00/Each
Part# 06-00410
MFR Model# TW-23A

Overview



DESCRIPTION
TYPE
PN
6.50 x 2.50
SOLID TIRE

Maule P/N 23 for Model SFSA tailwheels.
Tire with out Bearings (TW-23)
06-00409
Tire with Bearings (TW-23A)
06-00410

Reviews

Exactly what I ordered.

Rick C Verified Purchase

MAULE TAIL TIRE W/ BEAR TW-23A

December 21, 2021

Quality part, especially nice having bearings already installed, decent price, rapid delivery installed on aircraft in less than 5 minutes and back in the air 15 minutes later! Whats not to like?

Michael J
August 26, 2020

I searched all over for a TW-23 tail wheel. Your website said you were out of stock in Georgia and California. I called to find out how long and the order taker said you have it in stock!! Two days later I had my tail wheel. Thank you.

Arnold Z
June 8, 2018

Great to have a new tire. A few things to adjust. It is a little narrower than the original. The axle rubs on the cover plate. This can be fixed with creative use of 0.03 and 0.06 washers, so that the cotter pin hole will line up with the castle nut while still being tight enough while moving the tire closer to the end of axle. Also the grease fitting hits the cotter pin so a grease fitting with a shorter thread should work. I wish there were no grease fitting. It would be easier to just take the cover off for greasing.

Michael K Verified Purchase

MAULE TAIL TIRE W/ BEAR TW-23A

September 22, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the outside diameter of the 6.50 x 2.50 solid tailwheel tire in inches?

The outside diameter of this tailwheel tire is 6-1/2".

Q: What is the weight of the 6.50 x 2.50 solid tailwheel tire?

The weight of this tire on it's own (without bearing) is 3.21 lbs.

Q: What is the size of the hole inside the bearing (p/n 06-00410)?

0.50 inch.
