Rapco Brake Rivet Tool

$44.75/Each
Quantity
Add to Wishlist
Part# 10-02065
MFR Model# RA825

Overview

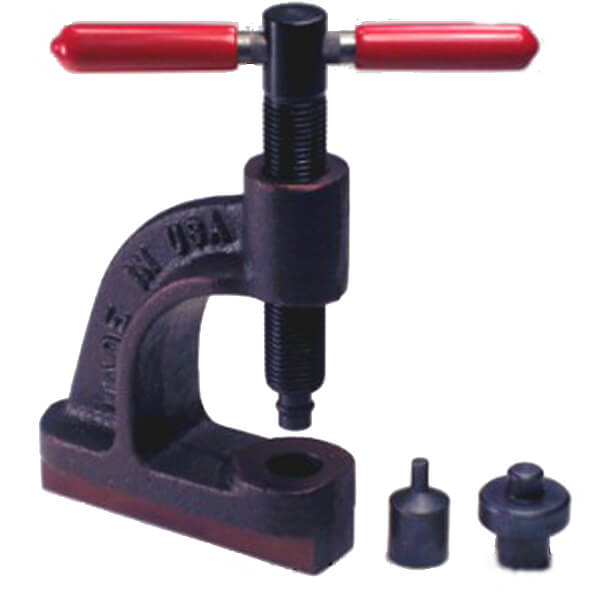

A high-quality tool designed for use in the installation and removal of tubular brass or steel brake lining rivets, 5/32 of an inch in diameter. Recognized by professionals, this screw type set allows controlled pressure for a proper flare. This reduces the chance of cracking not only the rivet but also of the lining material. It also helps avoid the costly warping of brake assembly back plates and pressure plates, often associated with using the hammer type method. The RAPCO rivet tool is designed to be mounted in a vise or can be handheld. Packaged in a reusable case the RA825 is a quality tool for a professional job. Maximum set travel 1 inch. Maximum working area 1 1/4 inch.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

In The Box

  • Rivet Punch
  • Set
  • Anvil
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Well made and useful tool, worth the price.

James E Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

December 1, 2023

Great tool, easy to use.. must have

Mark F Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

November 22, 2023

Wesley R Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

November 8, 2023

Works great, simple to use on brake linings for a Piper PA28-181

Bryan E Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

November 2, 2023

Havent used this tool yet but it looks well made and capable of performing well to set the lining rivets. Quality tool.

William W Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

October 15, 2023

great tool

Doug H Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

September 20, 2023

The brake rivet tool to get!! I own several and this is the best by far. Great Quality. Made in USA. Mounts in a vise and gives precise control over squishing rivets.

Daniel S Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

September 16, 2023

Easy to use and does the job. Watch YouTube video for a great demo of product.

Greg R Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

July 4, 2023

Great USA made product. Bought it as my China one stripped out threads. Simple to use as you do not need to change out threaded part for removal and install. A++

Brenten B Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

June 8, 2023

Doesn’t include instructions but easy to find online. Straight forward, good quality, and works great.

John G Verified Purchase

RAPCO BRAKE RIVET TOOL RA825

June 1, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the RA825 Rivet tool work with 1/8 Tubular Rivets? If so, what parts will be needed in addition to the tool itself? Thank you

Per the supplier: The RAPCO RA825 Rivet Tool is designed for tubular rivets that are 5/32" in shaft diameter. They have not actually been tested with 1/4" rivets. We only sell this rivet tool or the replacement anvil & punch for it.

Q: Is this the correct size anvil and punch for the Cleveland 66-106 linings?

Per supplier: Yes, the Rapco brake rivet tool will work with the 66-106 brake linings with standard 00200 rivets. It is the correct size anvil and punch.

Q: Will this Rapco Brake Rivet tool work with Matco brakes?

This is made to be used with steel tubular rivets. If Matco brakes uses these type of rivets, then yes this should work.

Q: What are the dimensions of this Rapco Brake Rivet Tool?

It measures 1" wide, 4-1/8" tall, and 3" long.

Q: Is this the right tool for CLEVELAND 66-105 ORGANIC BRAKE LINING?

Yes this will work with both Cleveland and Rapco pads and rivets.

Q: Will the RA825 Rivet Tool work with Grove rivets?

Yes, it will.

Q: Will this tool work on the grove brake linings?

Yes.

Q: Will this tool work with 066-09700 metallic linings that use 177-00300 mounting pins?

Yes this tool would install those pins.

Q: Does the Rapco rivet tool come with the punch and anvil set?

Yes those are included.
