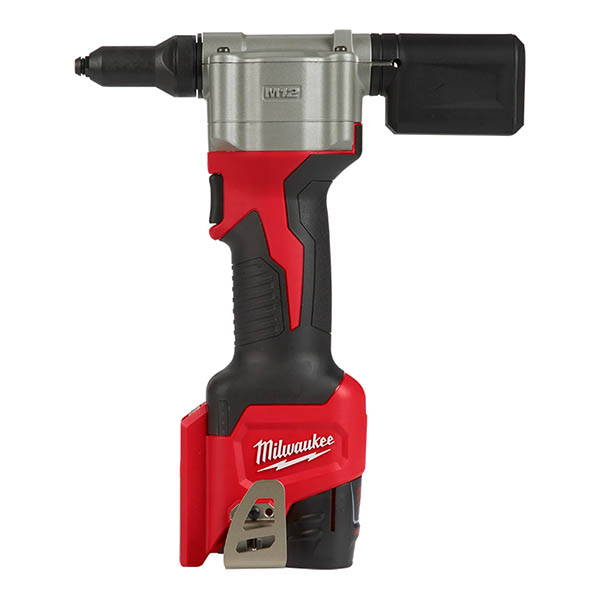

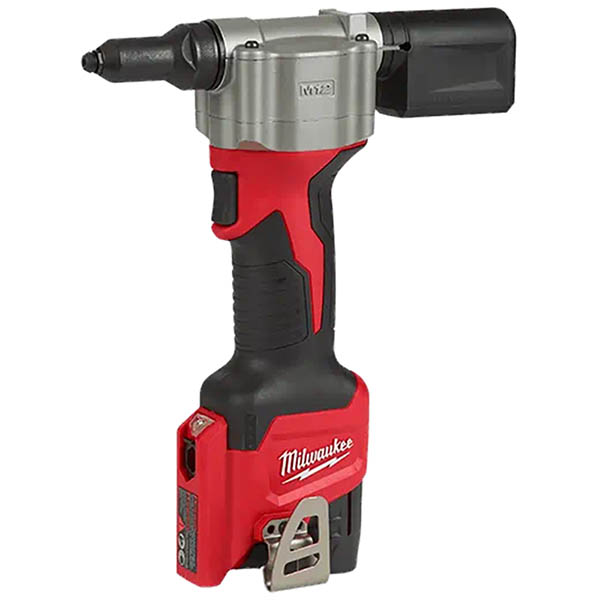

Milwaukee M12 Rivet Gun

Select Version
Complete KitBare Tool
Quantity
Add to Wishlist

Overview

The M12™ Rivet Tool is the first cordless solution that delivers fast, easy riveting while maintaining performance, durability, and size. The 2550 can pull up to 250 3/16" stainless steel rivets or 450 1/8" steel rivets on one charge with a 1.5ah battery, and reduces muscle effort from a hand tool by 60%. No compressors or hoses during set up and operation makes this tool a great replacement to pneumatic products.

2X longer life over current cordless solutions delivers greater durability from common jobsite conditions and use. This is the most compact cordless rivet tool on the market, measuring only 6.5” in length allowing users more access in tight spaces. The M12 Rivet Tool is part of the M12 battery platform, offering 90+ solutions on one battery system.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Pull Up to 3/16" Stainless Steel Rivets
  • 450 1/8" Steel Rivets per charge
  • Part of 90+ Solutions on the M12 Platform
  • Pull 3/32", 1/8", 5/32", 3/16" Rivets
  • Aluminum, Steel, Stainless Steel - Capacity
  • 0.8" Stroke Length
  • 2,000 lbs. pulls force
  • Tool holds rivet in any orientation
  • Ergonomically designed for force reduction - M12™ Rivet Tool Ergonomic Study

Specifications

  • Power Source: Cordless
  • Length: 6.50"
  • Weight: 4.15 lbs
  • Width: 2.63"
  • Nose Reach: 1.55"
  • Type Of Rivets Used: 3/32"-3/16" All Material
  • Nose Piece Sizes: 3/32", 1/8", 5/32", 3/16"
  • Battery System: M12

Battery Specifications

  • Voltage: 12V
  • Battery Type: 12 Volt Lithium Ion

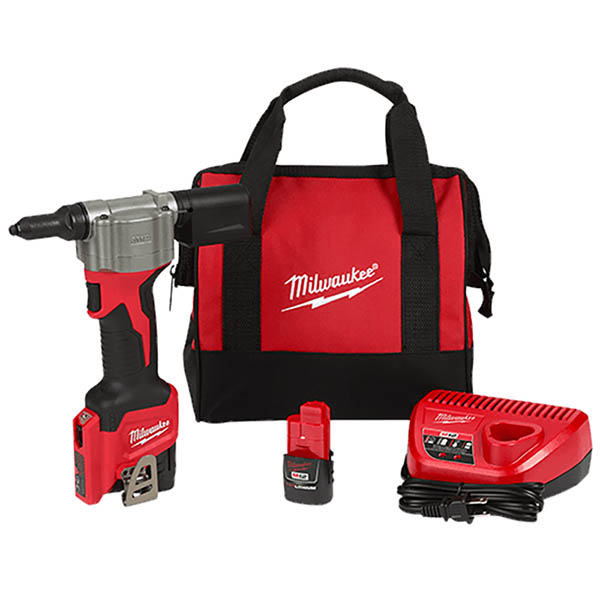

In The Box

  • M12™ Rivet Tool (Tool Only)(2550-20)
  • Kit adds M12™ REDLITHIUM™ CP1.5 Battery Pack (48-11-2401), charger, case.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Milwaukee M12 Rivet Gun Kit pull a cherry rivets?

Per Milwaukee: "They will work with Cherry Max, however, because the jaws were not specifically designed with Cherry Max in mind, the jaws will wear out faster as opposed to using with a standard Aluminum or Steel Rivet."
