U.S. Tools Riveting Hammers

Select Model:
US1XUS2XUS5XUS7X
Quantity
Add to Wishlist

Overview

These high quality riveting hammers are excellent for all light aircraft metal riveting applications. They feature a convenient offset handle (except Model US3AA which is straight handle) and come complete with retainer spring and regulator. All models feature metered teasing trigger, made in U.S.A.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Model Info

US1X
  • Available in Offset or Straight handle (specify)
  • Comes with retainer spring and regulator
  • .401 shank diameter
  • Light feathered touch
  • Precision machined hardened and ground valve
  • “Sure Grip” powder coated finish
  • Teasing trigger
  • Precision machined and hardened cylinder for long life
  • Made in U.S.A.
  • CE certified

US2X
  • Available in Offset or Straight handle (specify)
  • Comes with retainer spring and regulator
  • .401 shank diameter
  • Light feathered touch
  • Precision machined hardened and ground valve
  • “Sure Grip” powder coated finish
  • Teasing trigger
  • Precision machined and hardened cylinder for long life
  • Made in U.S.A.
  • CE certified

US5X

  • Available in Offset handle only
  • Comes with retainer spring and regulator
  • .401 or .498 shank diameter (specify)
  • Light feathered touch
  • Precision machined hardened and ground valve
  • “Sure Grip” powder coated finish
  • Teasing trigger
  • Precision machined and hardened cylinder for long life
  • Made in U.S.A.
  • CE certified

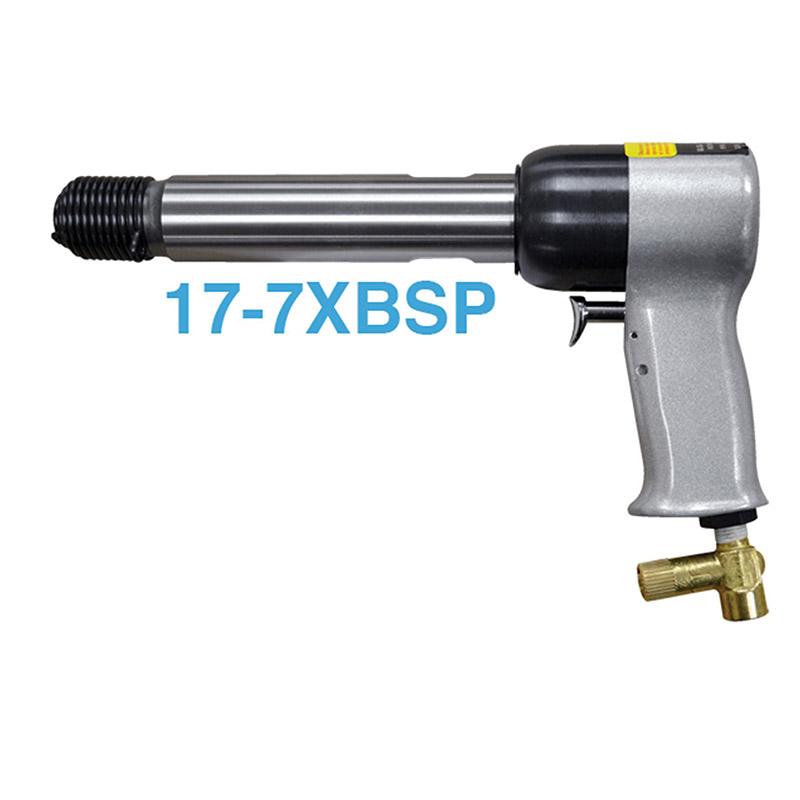

US7X

  • Available in Offset handle only
  • Comes with retainer spring and regulator
  • .401 or .498 shank diameter (specify)
  • Light feathered touch
  • Precision machined hardened and ground valve
  • “Sure Grip” powder coated finish
  • Teasing trigger
  • Precision machined and hardened cylinder for long life
  • Made in U.S.A.
  • CE certified
NOTE: Long term exposure to low frequency vibration caused by riveting may be harmful to your hands and arms. We suggest you take frequent breaks when riveting to reduce this exposure.

Specifications


Part Blows Capacity BoreStrokeLengthWeight
US1X36001/8"9/16"1-1/2"5-11/16"2 lbs
US2X25801/8"1/2"2-1/4"6-11/16"2-1/4 lbs
US3X21603/16"1/2"2-7/8"7-5/16"2-5/16 lbs
US5X15601/4"3/4"2-11/16"6-11/16"4-3/4 lbs
US7X9003/8"3/4"5-13/16"8-5/16"6 lbs

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is a 5x rivet gun to much to drive a -4 and -5 (5/32 dia.) monel rivet? Can the regulator step down the fore enough or should I be looking for a 3x or 4x gun?

The 5X is used for 5/32" solid aluminum rivets, we have no info on monel rivets. It can be regulated down to also rivet -4 aluminum rivets. The 4X may not be strong enough to do the 5/32" rivets, or at least not that well.
