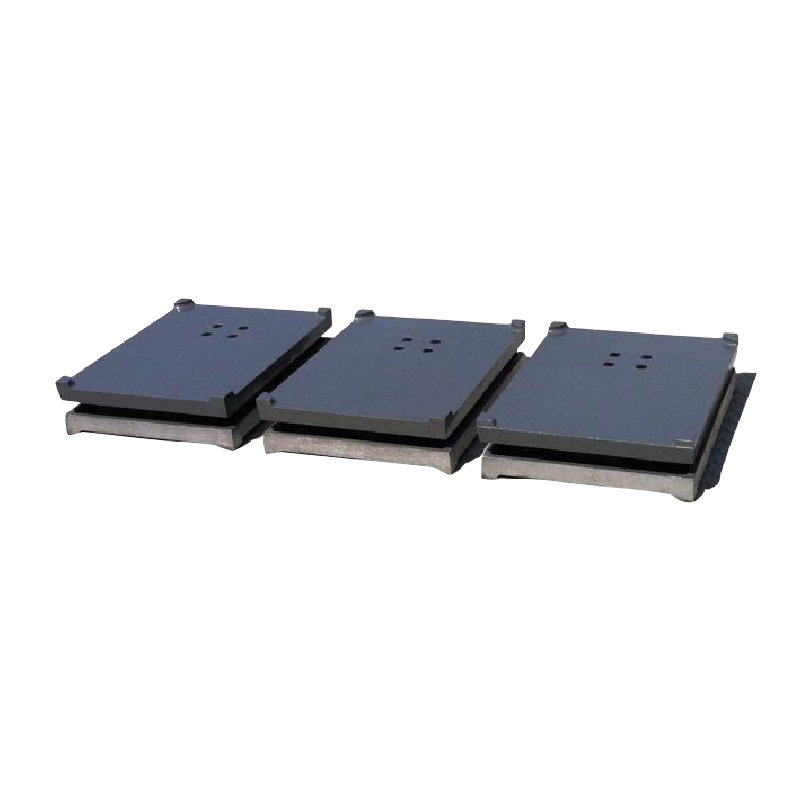

Each of our three 3,000 lb scales measure 12" x 15" and are made of cast aluminum. The electronic display has been moved into the suitcase to keep it out of harm's way. Each base comes with a machined carry handle on the bottom. The scale pads are powder coated grey. The coating makes cleanup quite easy because most everything will wipe right off. Although these units are water resistant, they should never be washed by hose or high pressure. Gentle hand cleaning should be all that is needed to keep your scales looking new.

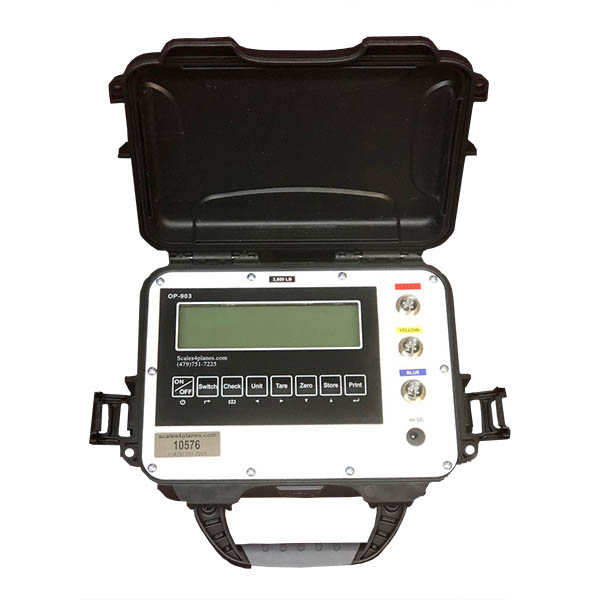

The external display reads out to the nearest 1 LB and features an LCD backlight that comes on with motion and stays on for enough time to record your reading accurately. The scale never turns off unless you tell it to. Only the backlight is on a timer and comes back on anytime you cause a little motion. The suitcase unit is powered by A/C adapter.
The scale comes certified, and currently satisfies all FAA requirements for 12 months. Recertification is available at the manufacturer for an additional cost. An inspection is recommended every year, but most scales will hold their calibration for much longer. Instructions are available so that calibration can be performed by scale technicians in your area.
Warranty is 12 months covering any manufacturing defects.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
3 bases @ 3,000lb capacity each, with wires to connect to the remote readout.
1 remote readout
1 Calibration/Certification Document for the set
1 Case for the remote readout.
4 cartons ship per set.
The minimum is +/- 1/2lbs and the weights can be read separately.
You just send in the cells, not the whole scale.
